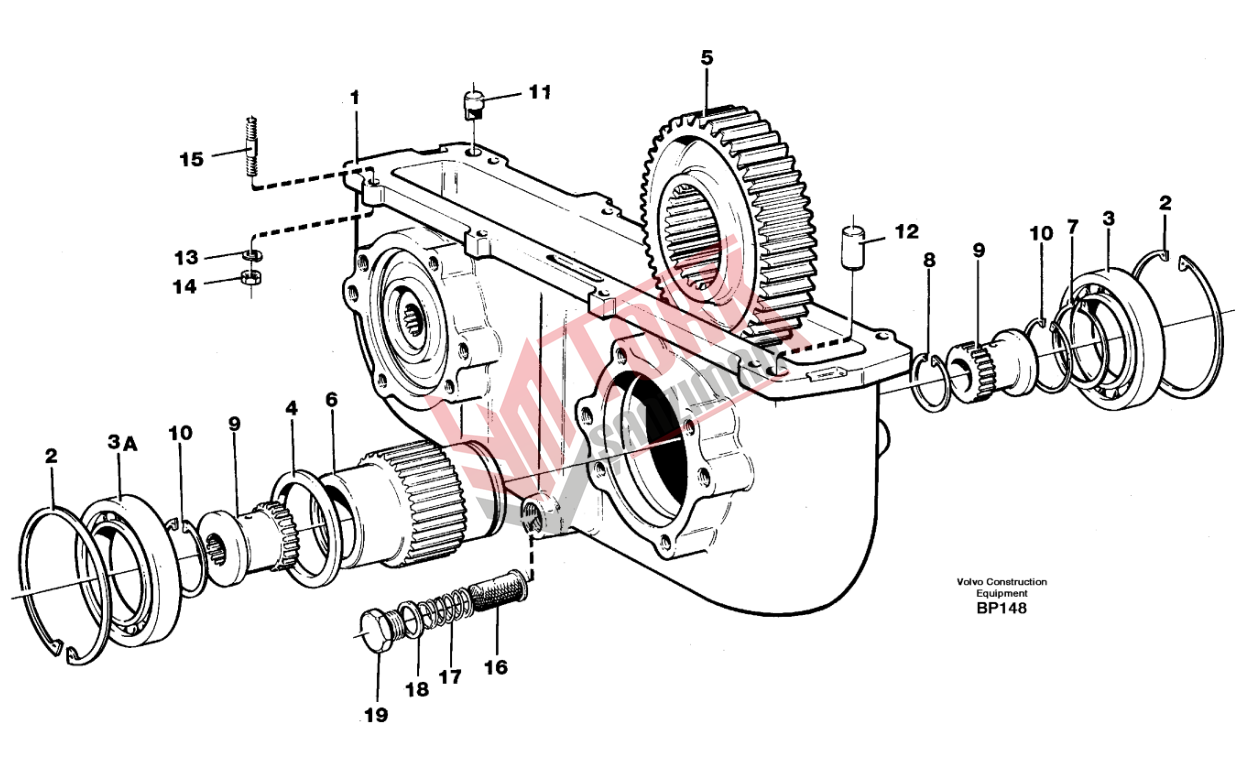

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| |
Gearbox | 1 | |
| 1 | 11030631 |
•Power take-off | 1 |
| 2 | 914548 |
•Retaining ring | 4 |
| 3 | 7019283 |
•Ball bearing | 2 |
| 3A | 183408 |
•Ball bearing | 2 |
| 4 | 11030368 (4770606) |
•Spacer ring | 4 |
| 5 | 4770431 |
•Gear | 2 |
| 6 | 4770605 |
•Shaft | 2 |
| 7 | 914478 |
•Snap ring | 2 |
| 8 | 914525 |
•Retaining ring | 2 |
| 9 | 11031509 |
•Splined sleeve | 4 |
| 10 | 914529 |
•Retaining ring | 4 |
| 11 | 4770525 |
•Pin | 1 |
| 12 | 191171 (7191171) |
•Pin | 1 |
| 13 | 13942336 (942336) |
•Spring washer | 8 |
| 14 | 13955827 |
•Nut | 8 |
| 15 | 953490 |
•Stud | 8 |
| 16 | 4770428 |
•Strainer | 1 |
| 17 | 4770473 |
•Spring | 1 |
| 18 | 13947628 |
•Plane gasket | 1 |
| 19 | 191086 |
•Plug | 1 |
