A30C
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| |

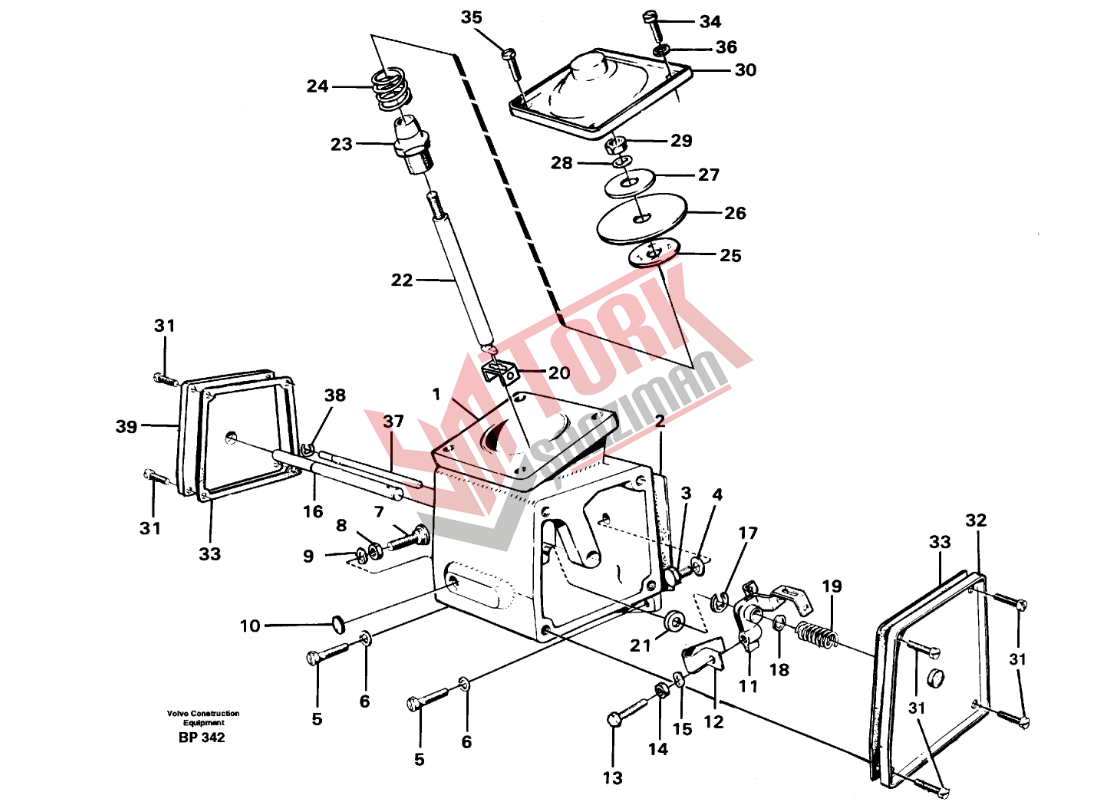

Smoke Limiter | ||
| 1 | |
•Housing | 1 |
| 2 | 1698172 (7241797) |
•Gasket | 1 |
| 3 | 849518 |
•Screw | 1 |
| 4 | 241794 |
•Washer | 1 |
| 5 | 6638096 |
•Screw | 2 |
| 6 | 13949607 |
•Washer | 2 |
| 7 | 863823 (241781) |
•Screw | 1 |
| 8 | 940197 |
•Hexagon nut | 1 |
| 9 | 13949607 |
•Washer | 1 |
| 10 | 244387 |
•Washer | 1 |
| 11 | 241782 |
•Hand lever | 1 |
| 12 | |
•Leaf spring | 1 |
| 13 | 243827 |
•Screw | 1 |
| 14 | 940197 |
•Hexagon nut | 1 |
| 15 | 13949607 |
•Washer | 1 |
| 16 | |
•Shaft | 1 |
| 17 | 13951669 |
•Retaining ring | 1 |
| 18 | 233816 (7233816) |
•Washer | 1 |
| 19 | |
•Spring | 1 |
| 20 | |
•Yoke | 1 |
| 21 | 6210700 |
•Spacer ring | 1 |
| 22 | |
•Control rod | 1 |
| 23 | |
•Bushing | 1 |
| 24 | |
•Spring | 1 |
| 25 | |
•Washer | 1 |
| 26 | |
•Diaphragm | 1 |
| 27 | |
•Washer | 1 |
| 28 | |
•Spring washer | 1 |
| 29 | 955782 |
•Hexagon nut | 1 |
| 30 | |
•Cover | 1 |
| 31 | 847452 |
•Screw | 8 |
| 32 | 6238112 (7241791) |
•Cover | 1 |
| 33 | 1698171 |
•Gasket | 2 |
| 34 | 243140 |
•Screw | 2 |
| 35 | 847452 |
•Screw | 2 |
| 36 | 13949607 |
•Washer | 4 |
| 37 | |
•Pin | 1 |
| 38 | 951667 |
•Retaining ring | 2 |
| 39 | |
•Cover | 1 |
