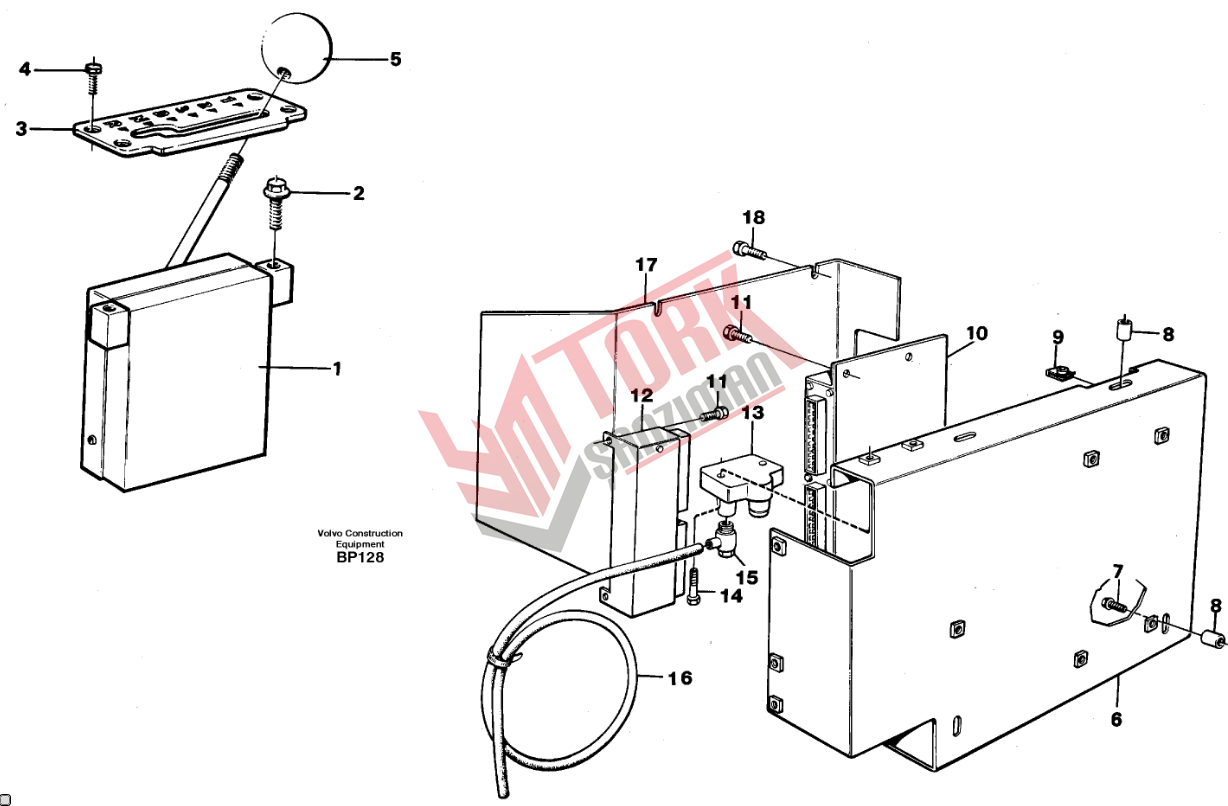

+90 552 671 32 12TRANSMISSION, HYDRAULIC CONTROL > 424/100 Control system, gear shift control
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Gear selector | 1 |
| 2 | 971383 |
Six point socket screw | 2 |
| 3 | 11057687 |
Gear selector gate | 1 |
| 4 | 969278 (13969278) |
Six point socket screw | 4 |
| 5 | 13966122 |
Handle ball | 1 |
| 6 | |
Attaching plate | 1 |
| |
Attaching plate | 1 | |
| 7 | 946671 |
Flange screw | 4 |
| 8 | 4973473 |
Spacer sleeve | 4 |
| 9 | 949921 |
Spring nut | REQ |
| 191391 |
Spring nut | 4 | |
| 10 | 11443362 (11042148) |
Electronic unit | 1 |
| 11042163 |
Electronic unit | 1 | |
| 11042189 (11042166) |
Electronic unit | 1 | |
| 11 | 971322 |
Six point socket screw | 4 |
| 12 | 11042081 |
Coupling piece | 1 |
| 13 | 1650865 |
Sensor | 1 |
| 14 | 977727 |
Six point socket screw | 2 |
| 15 | 6626873 |
Fitting | 1 |
| 957175 |
•Gasket | 2 | |
| 16 | 13945460 |
Plastic pipe | REQ |
| 17 | |
Protecting plate | 1 |
| |
Protecting plate | 1 | |
| 18 | 971322 |
Six point socket screw | 4 |
