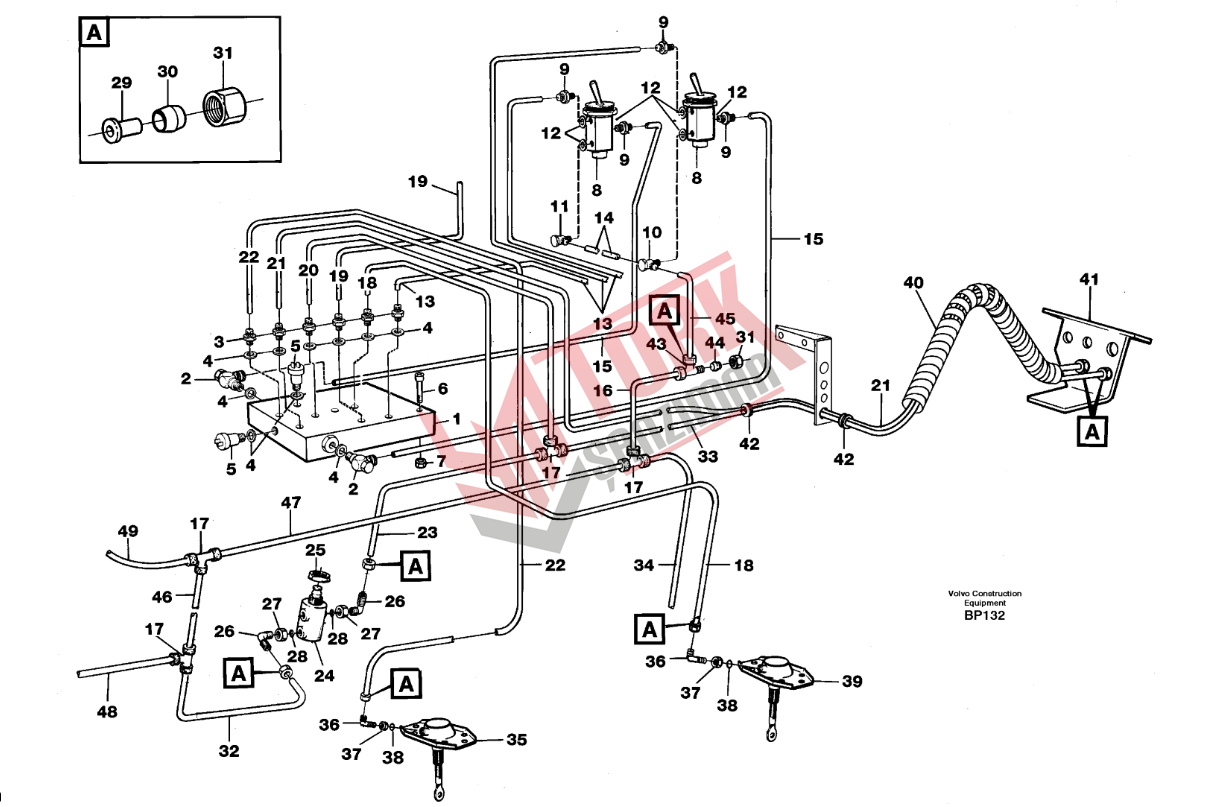

YM Güç Tork - 468/150 Pneumatic system: Differential lock, Cab SER NO - 2900 - A30C - A30C Volvo 2276-2908, 2321-5000, 60001-62000

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1		Valve	1
2	6626877	Fitting	2
3	6626878	Fitting	6
4	13947281	Gasket	10
5	1508808	Brake light switch	2
6	13959209	Screw	2
7	949921	Spring nut	2
8	11061604 (4941554)	Three-way valve	2
9	6626878	Fitting	4
10	6626887	Clutch	1
11	6626877	Fitting	1
12	13947281	Gasket	6
13	13945460	Plastic pipe	REQ
14	13945460	Plastic pipe	REQ
15	13945460	Plastic pipe	REQ
16	13945460	Plastic pipe	REQ
17	6626874	Clutch	4
18	13945460	Plastic pipe	REQ
19		Plastic pipe	REQ
20	13945460	Plastic pipe	REQ
21	13945460	Plastic pipe	REQ
22	13945460	Plastic pipe	REQ
23	13945460	Plastic pipe	REQ
24		Three-way valve	1
25	957021	Hexagon nut	1
26	945916	Elbow nipple	2
27	945893	Hexagon nut	2
28	1587176	O-ring	2
29	944717	Sleeve	8
30	954364	Ferrule	8
31	954356	Fitting nut	9
32	13945460	Plastic pipe	REQ
33	13945460	Plastic pipe	REQ
34	13945460	Plastic pipe	REQ
35		Differential lock	1
36	945916	Elbow nipple	2
37	945893	Hexagon nut	2
38	1587176	O-ring	2
39		Longitud. diff.	1
40		Hose protection	1
41		Anchorage	1
42	4780802	Protecting bushing	2
43	180084	T-nipple	1
44	943006	Closure	1
45	13945460	Plastic pipe	REQ
46	13945460	Plastic pipe	REQ
47	13945460	Plastic pipe	REQ
48		Plastic pipe	REQ
49		Plastic pipe	REQ
