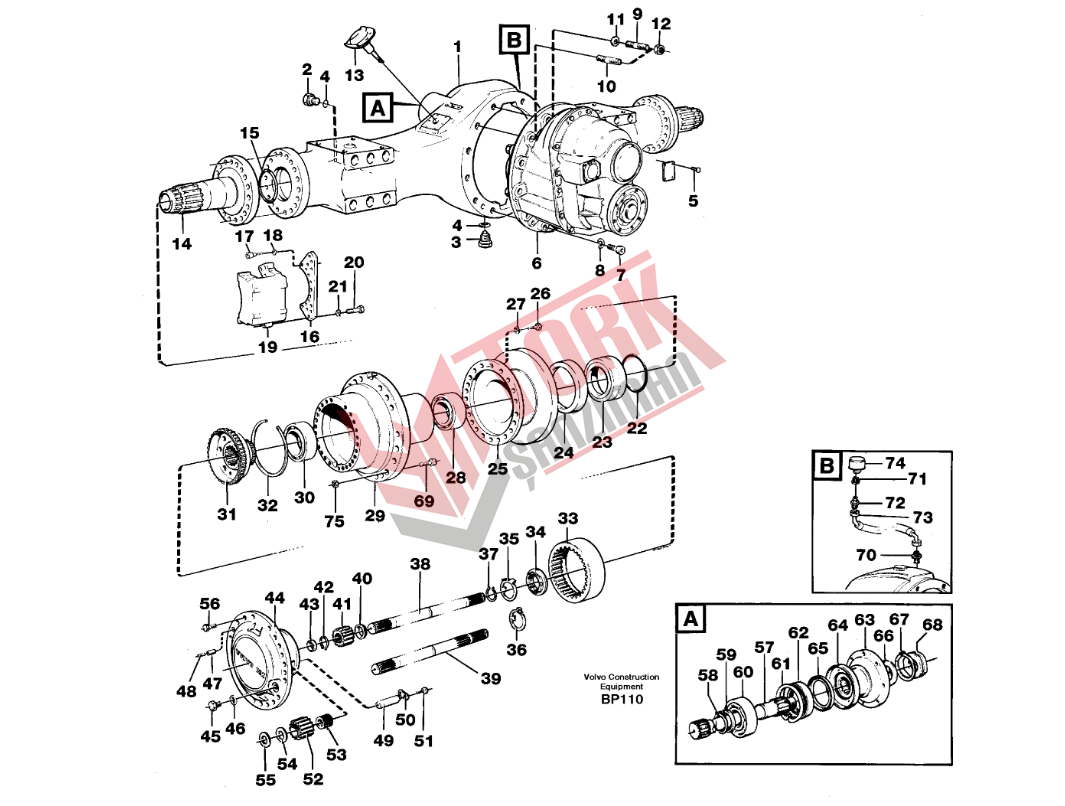

+90 552 671 32 12FRONT AXLE; REAR AXLE > 463/100 Planet shaft PROD NO 23728 AH63J, 23768 AH63R
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 23728 |
Planetary Axle | 1 | |
| 23768 |
Planetary Axle | 1 | |
| 1 | 11035464 |
•Axle casing | 1 |
| 2 | 11034156 |
•Plug | 1 |
| 3 | 11102187 (11034850) |
•Magnetic plug | 1 |
| 4 | 958228 |
•O-ring | 2 |
| 5 | 950891 |
•Drive screw | 2 |
| 6 | |
•Final gear | 1 |
| 7 | 926326 |
•Screw | 4 |
| 930835 |
•Screw | 6 | |
| 8 | 941912 |
•Spring washer | 9 |
| 9 | 4717702 |
•Stud | 1 |
| 10 | 4717703 |
•Stud | 1 |
| 11 | 4870206 |
•Washer | 3 |
| 12 | 961126 |
•Hexagon nut | 2 |
| 13 | |
•Differential lock | 1 |
| 14 | 4870181 |
•Spindle | 2 |
| 15 | 980827 (13960243) |
•O-ring | 2 |
| 16 | |
•Brake anchorage | 2 |
| 17 | 4717661 |
•Hex. socket screw | 18 |
| 13966851 |
•Screw | 18 | |
| 18 | 941914 |
•Spring washer | 36 |
| 19 | |
•Brake | 2 |
| 20 | |
•Screw | 12 |
| 21 | |
•Washer | 12 |
| 22 | 13960248 |
•O-ring | 2 |
| 23 | 11102642 (4717722) |
•Spacer ring | 2 |
| 24 | 11103124 (4870575) |
•Sealing ring | 2 |
| 25 | |
•Brake disc | 2 |
| 26 | |
•Screw | 24 |
| 27 | |
•Spring washer | 24 |
| 28 | 17488188 (183690) |
•Bearing | 2 |
| 29 | 11034715 |
•Hub | 2 |
| 30 | 183749 |
•Roller bearing | 2 |
| 31 | 4717383 |
•Gear ring holder | 2 |
| 32 | 4717022 |
•Snap ring | 2 |
| 33 | 17246170 (4717070) |
•Gear ring | 2 |
| 34 | 11102364 (4870110) |
•Nut | 2 |
| 35 | 4870108 |
•Lock ring | REQ |
| 36 | 4870109 |
•Lock ring | REQ |
| 37 | 945506 |
•Snap ring | 2 |
| 38 | 11034718 |
•Drive shaft | 1 |
| 39 | 11034719 |
•Drive shaft | 1 |
| 40 | 11102909 |
•Thrust washer | 2 |
| 41 | 11102298 (4717730) |
•Sun gear | 2 |
| 42 | 945499 |
•Snap ring | 2 |
| 43 | 11102910 |
•Wear ring | 2 |
| 44 | 11102677 (11034247) |
•Planet carrier | 2 |
| 45 | 11034156 |
•Plug | 4 |
| 46 | 958228 |
•O-ring | 4 |
| 47 | 952031 |
•Spring pin | 8 |
| 48 | 951990 |
•Spring pin | 8 |
| 49 | 11034889 |
•Planetary Gear Shaft | 6 |
| 50 | 4870445 |
•Striker plate | 6 |
| 51 | 4870448 |
•Screw | 12 |
| 52 | 11102301 (11034125) |
•Planet gear | 6 |
| 53 | 4880969 |
•Roller bearing | 6 |
| 54 | 4870486 |
•Thrust washer | 12 |
| 55 | 11034147 |
•Thrust washer | 12 |
| 56 | 13977564 (13970898) |
•Hexagon screw | 48 |
| 57 | 1069363 (1523076) |
•Shaft | 1 |
| 58 | 11038728 (13949321) |
•Snap ring | 1 |
| 59 | 1522906 |
•Washer | 1 |
| 60 | 181213 |
•Ball bearing | 1 |
| 61 | 4870265 |
•Lock ring | 1 |
| 62 | 4880627 |
•Sealing ring | 1 |
| 63 | 4871772 |
•Companion flange | 1 |
| 64 | |
••Dust cover | 1 |
| 65 | 943142 |
•Sealing ring | 1 |
| 66 | 941700 |
•Washer | 1 |
| 67 | 914480 |
•Snap ring | 1 |
| 68 | 943805 |
•Hexagon nut | 1 |
| 69 | 15123158 |
•Wheel stud | 24 |
| 11102584 |
•Wheel stud | 24 | |
| 70 | 929321 |
•Nipple | 1 |
| 71 | 11055905 |
Nipple | 1 |
| 72 | 929280 |
Nipple | 1 |
| 73 | 13933241 |
Hose assembly | 1 |
| 74 | 11172907 (4881323) |
Air filter | 1 |
| 75 | 947972 |
Wheel nut | 24 |
| 11100354 |
Nut cap | 24 | |
| 76 | 11705751 |
Sealant | 1 |
