A30C
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

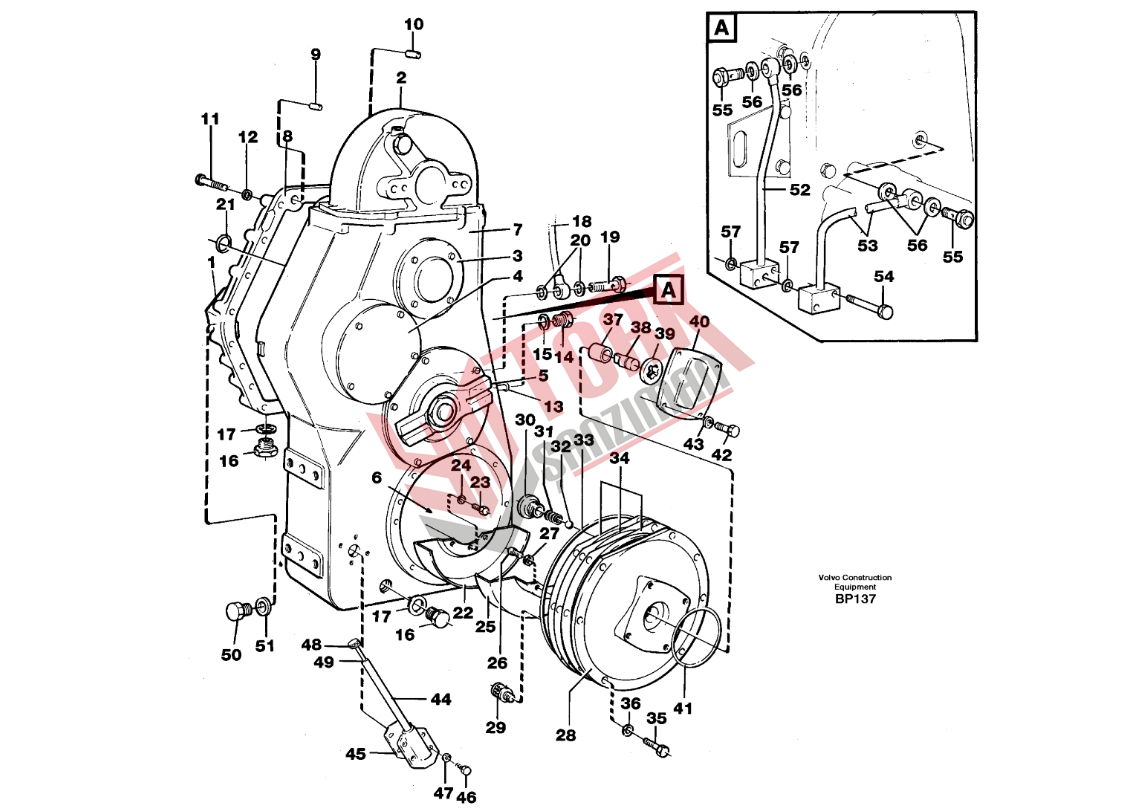

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 22504 |
Transfer gearbox | 1 | |
| 1 | |
Differential | 1 |
| 2 | |
Pump drive | 1 |
| 3 | |
Upper shaft | 1 |
| 4 | |
Intermediate shaft | 1 |
| 5 | |
Drive shaft | 1 |
| 6 | |
Lower shaft | 1 |
| 7 | 11036670 |
Housing | 1 |
| 8 | 11036666 |
Cover | 1 |
| 9 | 950711 |
Pin | 1 |
| 10 | 4718167 |
Pin | 1 |
| 11 | 13970982 |
Hexagon screw | 18 |
| 13970987 |
Hexagon screw | 1 | |
| 959267 |
Hex. socket screw | 2 | |
| 12 | 940280 |
Spring washer | 21 |
| 13 | 4719613 |
Tube | 1 |
| 14 | 960631 |
Plug | 1 |
| 15 | 13947622 |
Plane gasket | 1 |
| 16 | 11102187 (11034174) |
Magnetic plug | 2 |
| 17 | 968565 |
O-ring | 2 |
| 18 | |
Oil pipe | 1 |
| 19 | 941686 |
Hollow screw | 1 |
| 20 | 13947622 |
Plane gasket | 2 |
| 21 | 968007 |
O-ring | 1 |
| 22 | 11036849 (4719780) |
Oil pan | 1 |
| 23 | 955269 |
Hexagon screw | 3 |
| 24 | 13949607 |
Washer | 3 |
| 25 | 4719090 |
Oil plate | 1 |
| 11038147 |
Oil pan | 1 | |
| 26 | 942000 |
Hex. socket screw | 3 |
| 27 | 13949607 |
Washer | 3 |
| 28 | 4720692 |
Bearing carrier | 1 |
| 11038127 |
Bearing carrier | 1 | |
| 29 | 4720409 |
Strainer | 1 |
| 30 | 4719997 |
Spring stop | 1 |
| 31 | 4720001 |
Spring | 1 |
| 32 | 7000205 |
Ball | 1 |
| 33 | 13949738 |
O-ring | 1 |
| 34 | 4719083 |
Spacer | REQ |
| 4719084 |
Spacer | REQ | |
| 4719085 |
Spacer | REQ | |
| 35 | 13970948 |
Hexagon screw | 8 |
| 36 | 941908 |
Spring washer | 8 |
| 37 | 943959 |
Bearing bushing | 1 |
| 4720658 |
Pump unit | 1 | |
| 11038156 |
Pump unit | 1 | |
| 38 | 4719149 |
•Rotor shaft | 1 |
| |
•Shaft | 1 | |
| 39 | 4720542 |
•Rotor kit | 1 |
| 4778347 |
•Rotor kit | 1 | |
| 40 | 4720037 |
Cover | 1 |
| 11145525 (11038133) |
Valve Plate | 1 | |
| 11038207 |
Valve plate | 1 | |
| 192619 |
Ball | 4 | |
| 11036528 |
Valve seat | 2 | |
| 13946779 |
Cap plug | 2 | |
| 41 | 13949736 |
O-ring | 1 |
| 42 | 955297 |
Hexagon screw | 4 |
| 43 | 13941907 |
Washer | 4 |
| 44 | 11038337 (11036852) |
Tube | 1 |
| 45 | 11036089 |
Gasket | 1 |
| 46 | 13955272 |
Screw | 4 |
| 47 | 13949607 |
Washer | 4 |
| 48 | 11036478 |
Oil dipstick | 1 |
| 49 | 955972 |
O-ring | 1 |
| 50 | 960631 |
Plug | 2 |
| 51 | 13947622 |
Plane gasket | 2 |
| 52 | 11036658 |
Pipe | 1 |
| 53 | 11036661 |
Pipe | 1 |
| 54 | 13965177 |
Screw | 2 |
| 55 | 11036669 |
Hollow screw | 2 |
| 56 | 13947622 |
Plane gasket | 4 |
| 57 | 13949188 |
O-ring | 2 |
