A30C
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

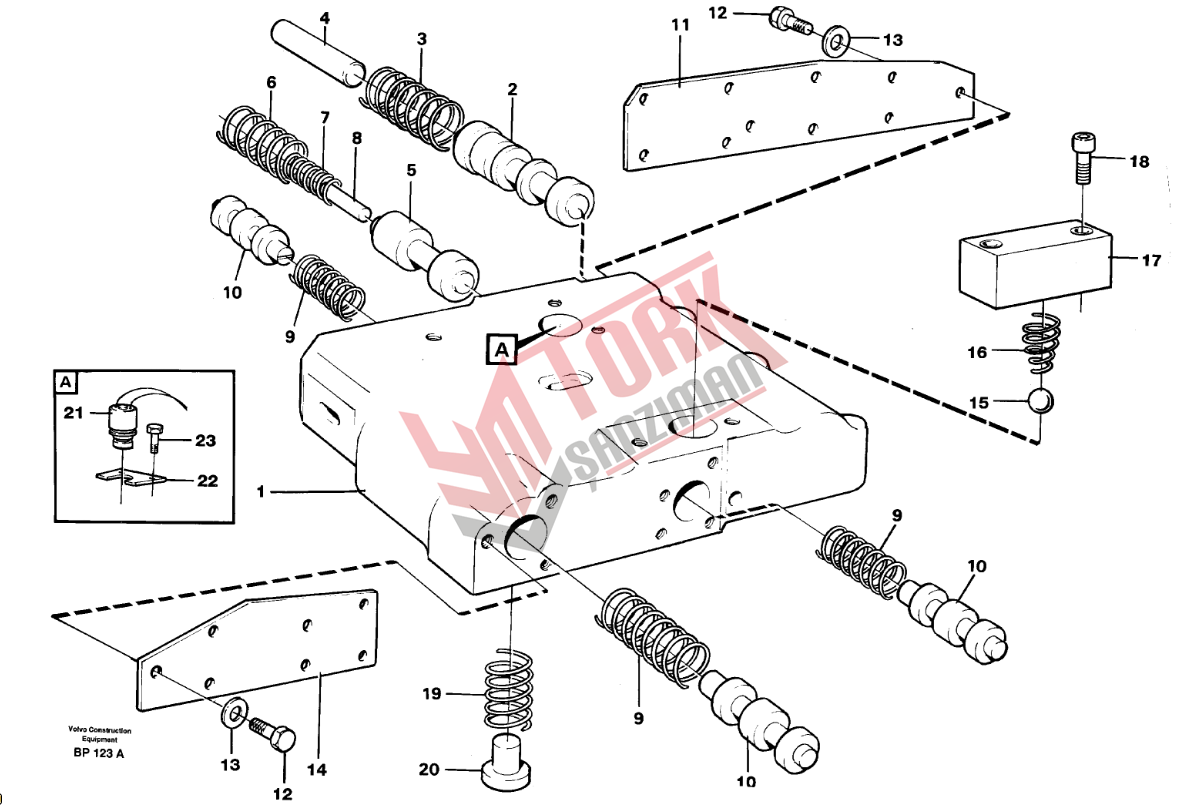

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| |
Valve | 1 | |
| |
Valve | ||
| 11038414 |
Main pressure valve | ||
| 1 | 11036672 |
•Valve housing | 1 |
| 11038282 |
•Valve housing | ||
| 2 | 1650823 |
•Slide | 1 |
| 3 | 1650860 |
•Compression spring | 1 |
| 4 | 13950659 |
•Pin | 1 |
| 5 | 1650825 |
•Slide | 1 |
| 6 | 1656539 |
•Compression spring | 1 |
| 7 | 1656541 |
•Compression spring | 1 |
| 8 | 13950578 |
•Pin | 1 |
| 9 | 1650828 |
•Compression spring | 3 |
| 10 | 1650827 |
•Slide | 3 |
| 11 | 1650833 |
•Cover | 1 |
| 12 | 13947949 |
•Flange screw | 16 |
| 955244 |
•Hexagon screw | 16 | |
| 13 | 13940090 |
•Washer | 16 |
| 14 | 1650834 |
•Cover | 1 |
| 15 | 13801353 |
•Ball | 1 |
| 16 | 1650674 |
•Compression spring | 1 |
| 17 | 11037910 |
•Spring retainer | 1 |
| 18 | 942001 |
•Hex. socket screw | 2 |
| 942000 |
•Hex. socket screw | ||
| 19 | 1650613 |
•Compression spring | 2 |
| 20 | 11145190 |
•Disc valve | 2 |
| 21 | 965824 |
•Cable terminal | 1 |
11038018 |
•Control solenoid | ||
| 11708569 |
••O-ring | ||
| 11708570 |
••O-ring | ||
| 22 | 11418964 (11036668) |
•Retainer | 1 |
| 23 | 945358 (13945358) |
•Flange screw | 2 |
