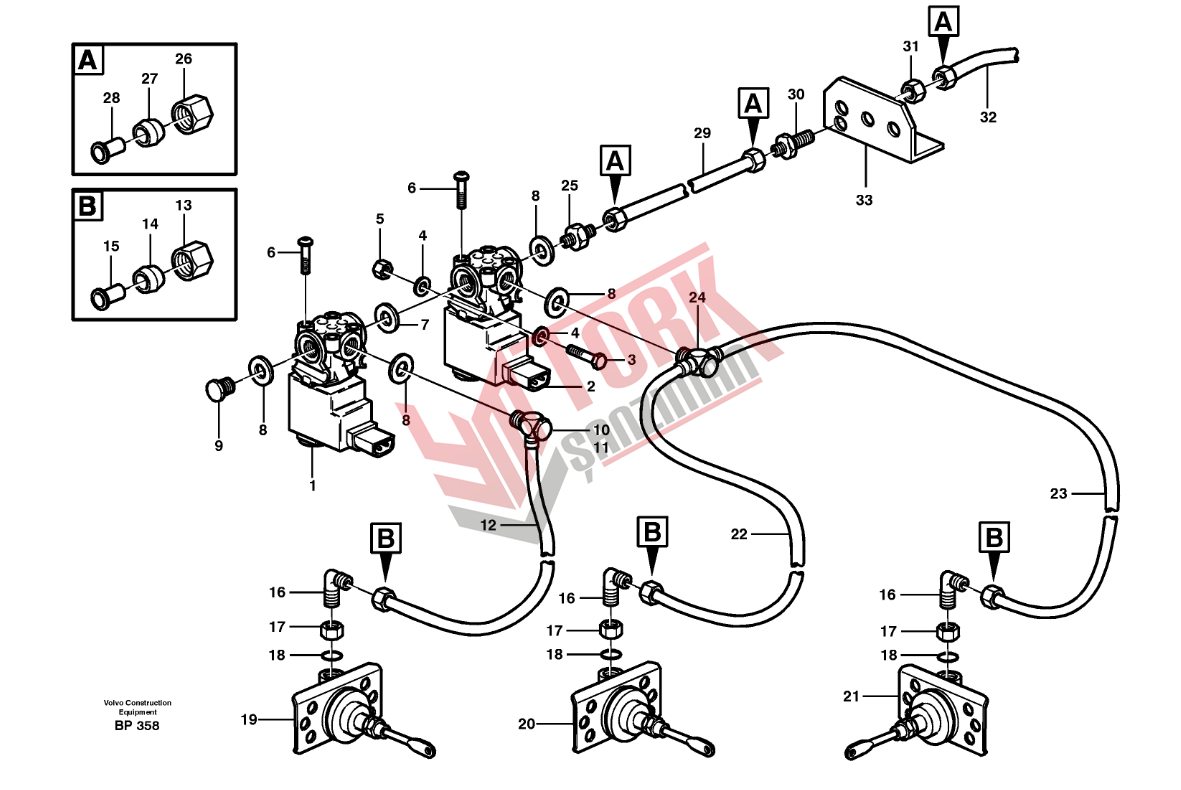

+90 552 671 32 12FRONT AXLE; REAR AXLE > 2900 468/210 Pneumatic system, diff lock, trailer SER NO 2901
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 8158342 |
Solenoid valve | 1 |
| 2 | 8158342 |
Solenoid valve | 1 |
| 3 | 13965176 |
Screw | 1 |
| 4 | 1589391 |
Washer | 2 |
| 5 | 13949278 |
Flange lock nut | 1 |
| 6 | 971321 |
Six point socket screw | 4 |
| 7 | 1587176 |
O-ring | 1 |
| 8 | 957175 |
Gasket | 4 |
| 9 | 960629 |
Plug | 1 |
| 10 | 6626873 |
Fitting | 1 |
| 11 | 957175 |
•Gasket | 1 |
| 12 | 967975 |
Tube | REQ |
| 13 | 954356 |
Fitting nut | 3 |
| 14 | 954364 |
Ferrule | 3 |
| 15 | 944717 |
Sleeve | 3 |
| 16 | 945916 |
Elbow nipple | 3 |
| 17 | 945893 |
Hexagon nut | 3 |
| 18 | 1587176 |
O-ring | 3 |
| 19 | |
Longitud.diff | 1 |
| 20 | |
Differential lock | 1 |
| 21 | |
Differential lock | 1 |
| 22 | 13945460 |
Plastic pipe | REQ |
| 23 | 13945460 |
Plastic pipe | REQ |
| 24 | 11062709 |
Fitting | 1 |
| 25 | 13966414 (13945902) |
Nipple | 1 |
| 26 | 326596 |
Fitting nut | 3 |
| 27 | 326599 |
Ferrule | 3 |
| 28 | 967559 |
Sleeve | 3 |
| 29 | 967976 |
Tube | REQ |
| 30 | 11118363 (13946358) |
Nipple | 1 |
| 31 | 338888 |
Hexagon nut | 1 |
| 32 | 967976 |
Tube | REQ |
| 33 | 11060916 |
Anchorage | 1 |
