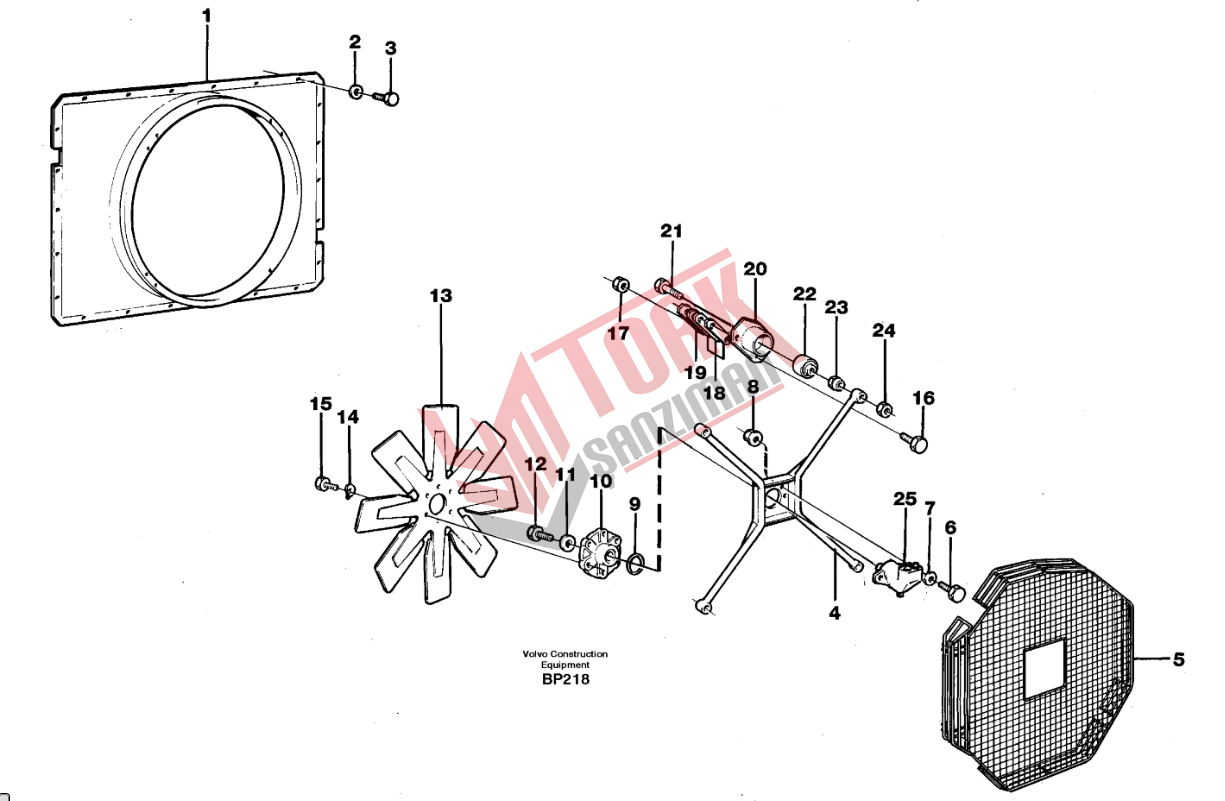

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11033069 |
Fan shroud | 1 |
| 2 | 13960141 |
Washer | 12 |
| 3 | 947107 |
Flange screw | 11 |
| 946440 |
Flange screw | 1 | |
| 4 | 11051399 |
Fan motor retainer | 1 |
| 5 | |
•Fan Protector | 1 |
| 6 | 13970972 |
Hexagon screw | 2 |
| 7 | 13955897 |
Washer | 2 |
| 8 | 971099 (13971099) |
Flange lock nut | 2 |
| 9 | 13946891 |
Sealing ring | 1 |
| 10 | 4821390 |
Hub | 1 |
| 11 | 4823429 |
Washer | 1 |
| 12 | 955656 |
Hexagon screw | 1 |
| 13 | 1674069 (475141) |
Fan | 1 |
| 14 | 976945 (13960148) |
Washer | 6 |
| 15 | 13940115 |
Screw | 6 |
| 16 | 13947760 |
Screw | 4 |
| 13946173 |
Screw | 4 | |
| 17 | 13945408 (948645) |
Nut | 8 |
| 18 | |
Plate | 6 |
| 19 | |
Plate | 2 |
| 20 | 4778149 |
Anchorage | 4 |
| 11059269 |
Rubber element | 4 | |
| 21 | 13973258 |
Hexagon screw | 4 |
| 22 | 4778386 |
Rubber bushing | 4 |
| 23 | 971081 (13971081) |
Hexagon nut | 4 |
| 24 | 971099 (13971099) |
Flange lock nut | 4 |
| 25 | |
Fan motor | 1 |
