A30C
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

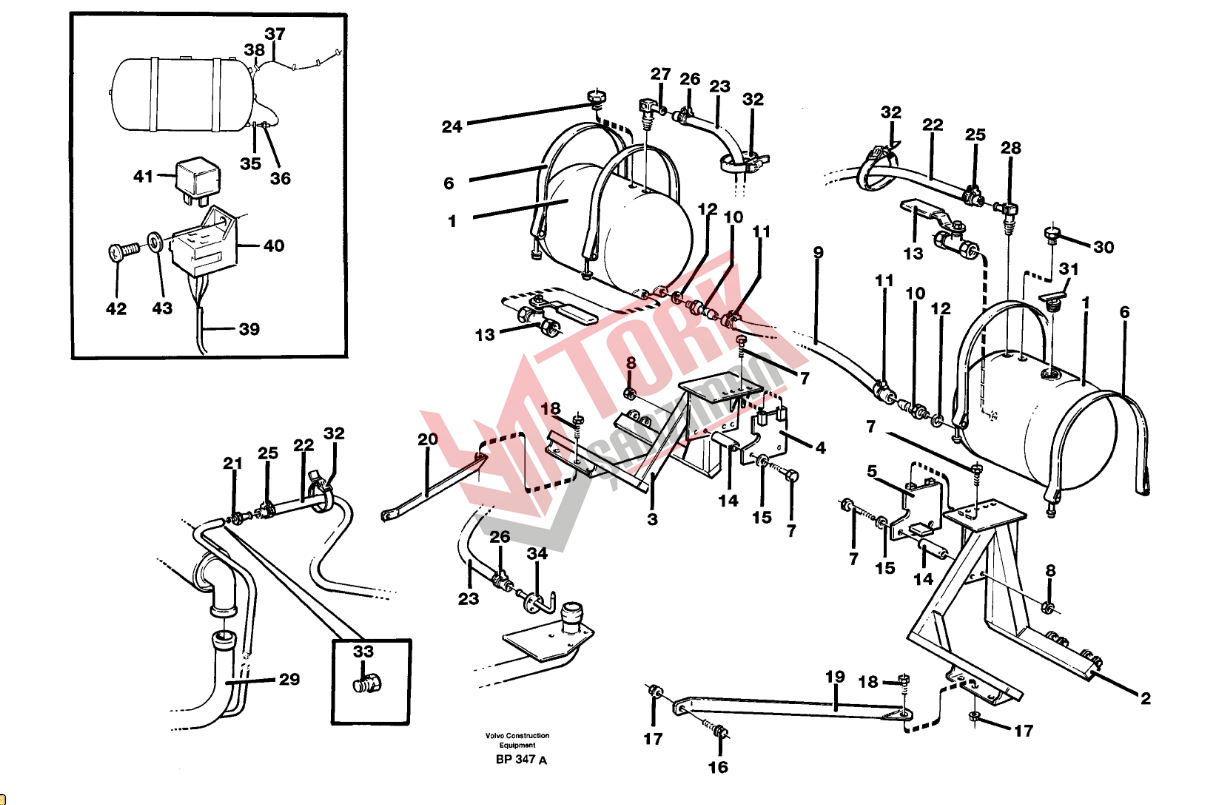

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11052650 |
Tank | 2 |
| 2 | 11052663 |
Bracket | 1 |
| 11059576 (11064254) |
Bracket | 1 | |
| 3 | 11052664 |
Bracket | 1 |
| 11059577 (11064255) |
Bracket | 1 | |
| 4 | 11052653 |
Anchorage | 1 |
| 5 | 11052659 |
Anchorage | 1 |
| 6 | 11060103 |
Clamp | 4 |
| 13946474 |
•Flange screw | 4 | |
| 13930908 (11055607) |
•Washer | 4 | |
| 13971090 |
•Lock nut | 4 | |
| 7 | 970988 (13970988) |
Hexagon screw | 8 |
| 8 | 971099 (13971099) |
Flange lock nut | 4 |
| 9 | 11052992 |
Hose | 1 |
| 10 | 945574 |
Nipple | 2 |
| 11 | 943477 |
Hose clamp | 2 |
| 12 | 947631 |
Gasket | 2 |
| 13 | 4822674 |
Valve | 2 |
| 14 | 11052658 |
Tube | 4 |
| 15 | 13960145 |
Washer | 4 |
| 13960145 |
Washer | 8 | |
| 16 | 965195 |
Flange screw | 2 |
| 17 | 971099 (13971099) |
Flange lock nut | 4 |
| 18 | 13965191 |
Screw | 2 |
| 19 | 11060131 |
Stay | 1 |
| 20 | 11060132 |
Stay | 1 |
| 21 | 943268 |
Nipple | 1 |
| 22 | 11059553 (11060116) |
Hose | 1 |
| 23 | 11060117 |
Hose | 1 |
| 24 | 942839 |
Plug | 1 |
| 25 | 943475 |
Hose clamp | 2 |
| 26 | 13943472 |
Hose clamp | 2 |
| 27 | 13961604 |
Nipple | 1 |
| 28 | 961611 |
Elbow nipple | 1 |
| 29 | 11052951 |
Exhaust pipe | 1 |
| 30 | 479956 |
Plug | 1 |
| 31 | 4822677 |
Filler cap | 2 |
| 32 | 11104606 |
Retaining strap | 7 |
| 33 | 942839 |
Plug | 1 |
| 34 | 11052945 |
Tube | 1 |
| 35 | 13947282 |
Gasket | 1 |
| 36 | 1581232 |
Sensor | 1 |
| 37 | 11063399 |
Cable harness | 1 |
| 13949584 |
•Housing | 1 | |
| 969836 |
•Cable terminal | 1 | |
| 38 | 4821292 |
Cable tie | 15 |
| 39 | 11063931 (11063404) |
Cable harness | 1 |
| 40 | 977184 |
•Housing | 1 |
| 41 | 1501618 |
Relay | 1 |
| 42 | 969278 (13969278) |
Six point socket screw | 1 |
| 43 | 13940090 |
Washer | 1 |
