WHEEL LOADER VOLVO L60H
BASIC MACHINE
Product number 33055, Serial number 621002- USA
Product number 33055, Serial number 11005- Sweden
CAB
Product number 11294114
DRIVE AXLES
Part number 56014, front
Part number 86341, rear
Part number 86340, rear, Limited slip Diff (LSD)
TRANSMISSION
Product number 22579
LOADER UNIT
Product number 33031, LUB
Product number 33030, LB LUB
ENGINE
Product number 17211873, Replacement version 85853, T4F USA
Product number 17211877, Replacement version 85854, T4F EU

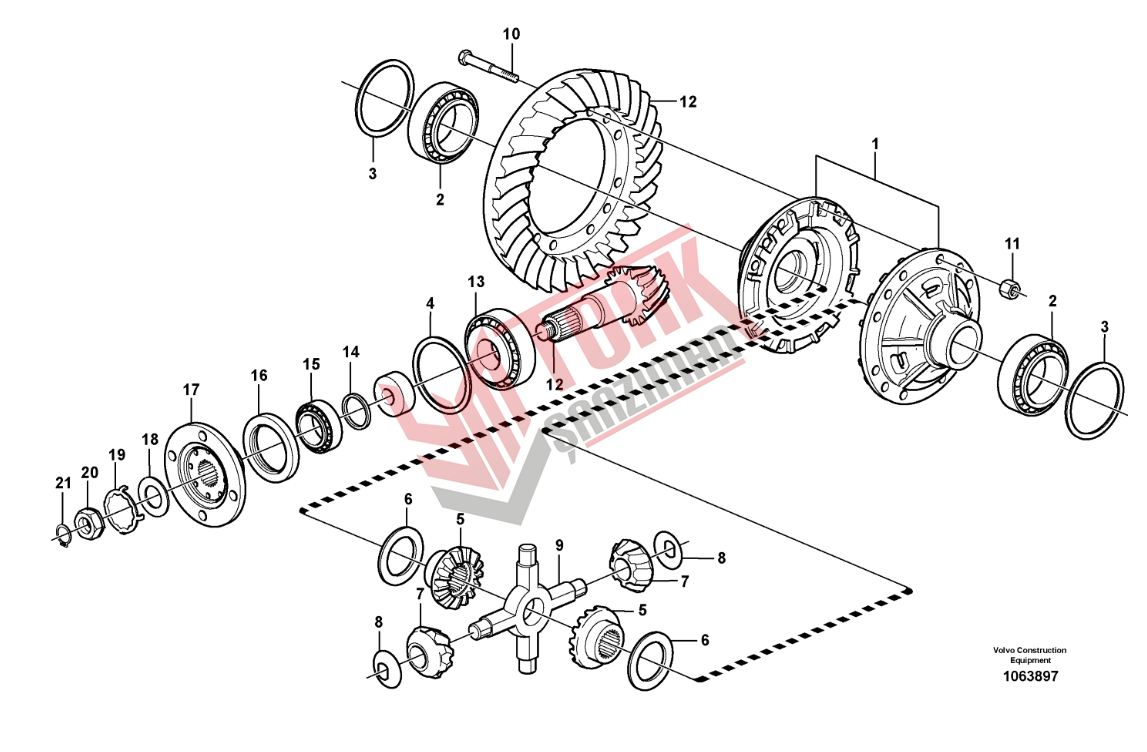

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 56088 |
Planetary Axle | 1 | |
| 1 | 11168088 |
•Differential housing | 2 |
| 2 | 184688 |
•Roller bearing | 2 |
| 3 | 11034319 |
•Shim | REQ |
| 11034320 |
•Shim | REQ | |
| 11034321 |
•Shim | REQ | |
| 4 | 4870325 |
•Oil plate | 1 |
| 5 | 11035625 |
•Differential side gear | 2 |
| 6 | 17204359 |
•Thrust washer | 2 |
| 7 | 11102845 |
•Differential side gear | 4 |
| 8 | 17203825 |
•Thrust washer | 4 |
| 9 | 11102846 |
•Spider | 1 |
| 10 | 11035875 |
•Screw | 12 |
| 11 | 11035850 |
•Nut | 12 |
| 12 | 15194307 |
•Drive gear set | 1 |
| 13 | 184809 |
•Roller bearing | 1 |
| 14 | 11035471 |
•Spacer ring | REQ |
| 11035472 |
•Spacer ring | REQ | |
| 11035473 |
•Spacer ring | REQ | |
| 11035474 |
•Spacer ring | REQ | |
| 11035475 |
•Spacer ring | REQ | |
| 11035476 |
•Spacer ring | REQ | |
| 11035477 |
•Spacer ring | REQ | |
| 15 | 7183405 |
•Roller bearing | 1 |
| 16 | 4870186 |
•Sealing ring | 1 |
| 17 | 11168070 |
•Companion flange | 1 |
| 18 | 4717955 |
•Washer | 1 |
| 19 | 11035845 |
•Lock washer | REQ |
| 11035846 |
•Lock washer | REQ | |
| 20 | 11035538 |
•Nut | 1 |
| 21 | 914472 |
•Snap ring | 1 |
