+90 552 671 32 12TRANSMISSION, HYDRAULIC CONTROL > 421/750 Hydraulic clutch forward/3:rd speeds 2271 S/N 11278 -, 621229
WHEEL LOADER VOLVO L60H
BASIC MACHINE
Product number 33055, Serial number 621002- USA
Product number 33055, Serial number 11005- Sweden
CAB
Product number 11294114
DRIVE AXLES
Part number 56014, front
Part number 86341, rear
Part number 86340, rear, Limited slip Diff (LSD)
TRANSMISSION
Product number 22579
LOADER UNIT
Product number 33031, LUB
Product number 33030, LB LUB
ENGINE
Product number 17211873, Replacement version 85853, T4F USA
Product number 17211877, Replacement version 85854, T4F EU

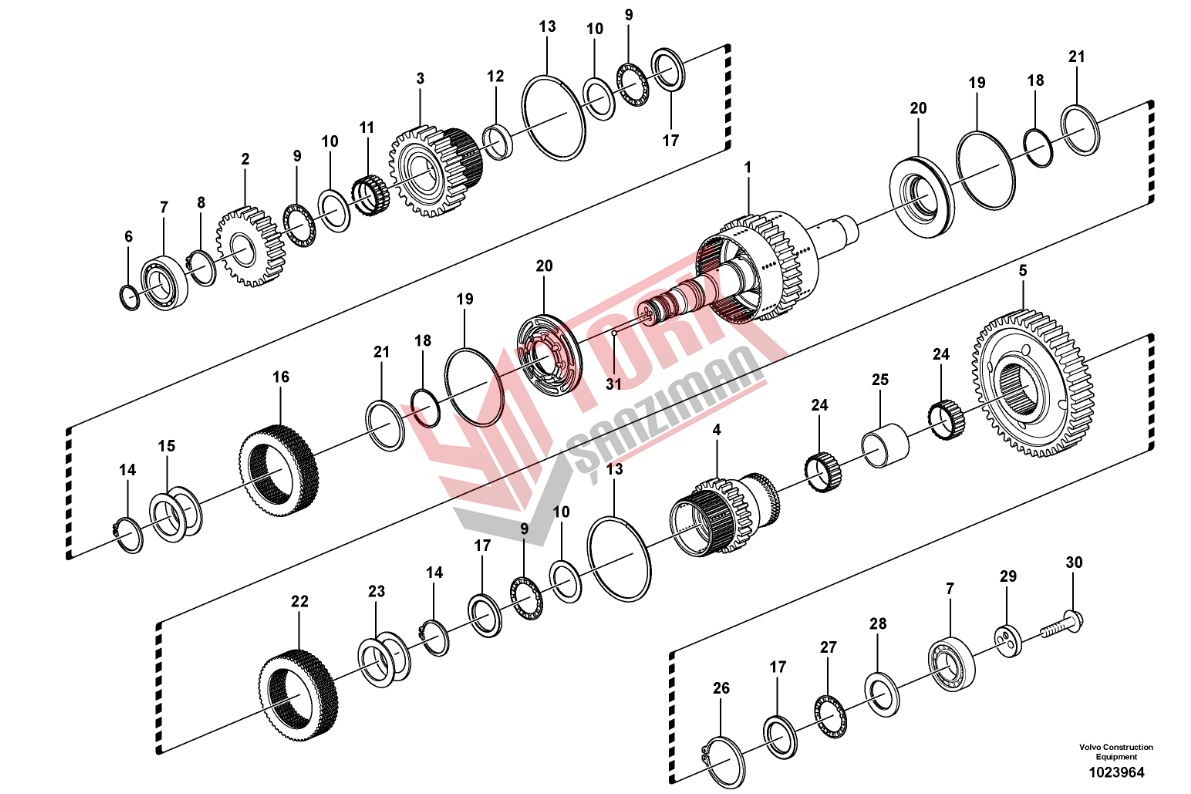

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 17405582 |
Hydraulic clutch | 1 | |
| 1 | 17405647 |
•Clutch shaft | 1 |
| 2 | 11419549 |
•Gear | 1 |
| 3 | 11419294 |
•Gear | 1 |
| 4 | 11418477 |
•Gear | 1 |
| 5 | 11419298 |
•Gear | 1 |
| 6 | 11038835 |
•Piston ring | 3 |
| 7 | 11997939 |
•Roller bearing | 2 |
| 8 | 914472 |
•Snap ring | 1 |
| 9 | 795433 |
•Needle bearing | 3 |
| 10 | 4871341 |
•Thrust washer | 3 |
| 11 | 784467 |
•Needle bearing | 1 |
| 12 | 11037108 |
•Spacer ring | 1 |
| 13 | 11418485 |
•Lock ring | 2 |
| 14 | 11145411 |
•Snap ring | 2 |
| 15 | 11418986 |
•Disc spring | 7 |
| 16 | 15171124 |
•Disc kit | 1 |
| 17 | 184241 |
•Bearing washer | 3 |
| 18 | 11989798 |
•Sealing ring | 2 |
| 19 | 11989797 |
•Sealing ring | 2 |
| 20 | 11418476 |
•Piston | 2 |
| 21 | 11419534 |
•Thrust washer | 2 |
| 22 | 15171133 |
•Disc kit | 1 |
| 23 | 11418986 |
•Disc spring | 5 |
| 24 | 183444 |
•Needle roller assembly | 2 |
| 25 | 11418478 |
•Spacer ring | 1 |
| 26 | 914486 |
•Snap ring | 1 |
| 27 | 11145231 |
•Thrust roller assembly | 1 |
| 28 | 15175531 |
•Thrust washer | 1 |
| 29 | 16861128 |
•Washer | 1 |
| 30 | 13965185 |
•Screw | 2 |
| 31 | 184645 |
•Ball | 2 |
