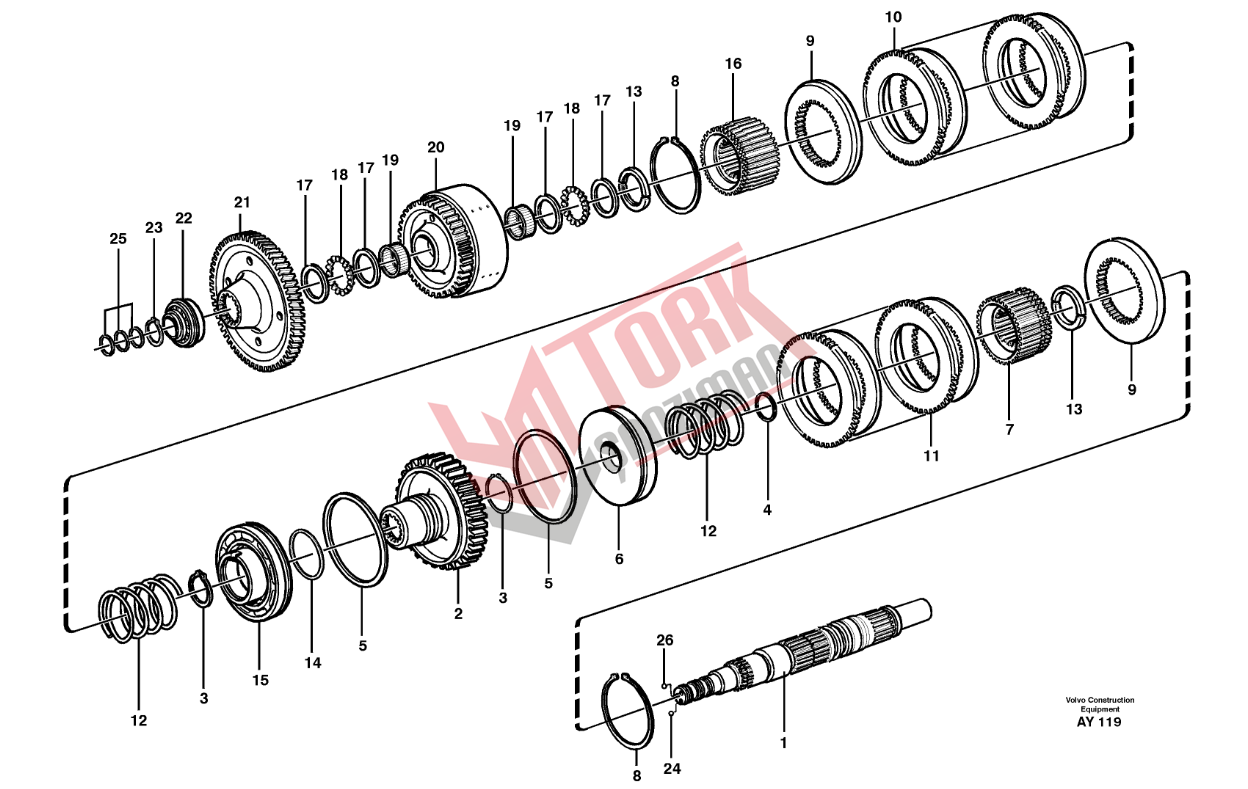

+90 552 671 32 12TRANSMISSION, HYDRAULIC CONTROL > 421/250 Hydraulic clutch, reverse / 2nd speed 22503
WHEEL LOADER VOLVO L220D
BASIC MACHINE
PROD NO 33811, L220D, SER NO 1001 - 1685
CAB
PROD NO 33813, Care Cab II
PROD NO 33822, Replacement version
TRANSMISSION
PROD NO 22503, HTE300
DRIVING AXLE
PROD NO 23876, AWB 50, front
PROD NO 23877, AWB 41, rear.
LOADING UNIT
PROD NO 33812
PROD NO 33821, Long Boom (93583)
ENGINE
Part No 8188460, TD 122KLE, Low exhaust emission version
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 11144017 |
Hydraulic clutch | 1 | |
| 1 | 11703828 |
•Clutch shaft | 1 |
| 2 | 11037656 |
•Partition wall | 1 |
| 3 | 11037595 |
•Lock ring | 2 |
| 4 | 11037513 |
•Piston ring | 1 |
| 5 | 11037516 |
•Piston ring | 2 |
| 6 | 11037514 |
•Piston | 1 |
| 7 | 11037518 |
•Clutch hub | 1 |
| 8 | 11037596 |
•Lock ring | 2 |
| 9 | 11037642 |
•Pressure Plate | REQ |
| 11037643 |
•Pressure Plate | REQ | |
| 11037644 |
•Pressure Plate | REQ | |
| 11037645 |
•Pressure Plate | REQ | |
| 10 | 15035796 |
•Disc kit | 1 |
| 11 | 15035797 |
•Disc kit | 1 |
| 12 | 11037652 |
•Spring | 2 |
| 13 | 11037525 |
•Retainer | 2 |
| 14 | 11037515 |
•Piston ring | 1 |
| 15 | 11037517 |
•Piston | 1 |
| 16 | 15079751 (11037521) |
•Clutch hub | 1 |
| 17 | 11037527 |
•Thrust washer | 4 |
| 18 | 184055 |
•Thrust needle roller assy | 2 |
| 19 | 15155241 (181564) |
•Needle roller assembly | 2 |
| 20 | 11038401 (11038375) |
•Gear | 1 |
| 21 | 11037566 |
•Gear | 1 |
| 22 | 11037841 |
•Roller bearing | 1 |
| 23 | 11038728 (11037180) |
•Snap ring | 1 |
| 24 | 184645 |
•Ball | 1 |
| 25 | 11037814 |
•Piston ring | 3 |
| 26 | 11037637 |
•Ball | 1 |
