WHEEL LOADER VOLVO L220D
BASIC MACHINE
PROD NO 33811, L220D, SER NO 1001 - 1685
CAB
PROD NO 33813, Care Cab II
PROD NO 33822, Replacement version
TRANSMISSION
PROD NO 22503, HTE300
DRIVING AXLE
PROD NO 23876, AWB 50, front
PROD NO 23877, AWB 41, rear.
LOADING UNIT
PROD NO 33812
PROD NO 33821, Long Boom (93583)
ENGINE
Part No 8188460, TD 122KLE, Low exhaust emission version

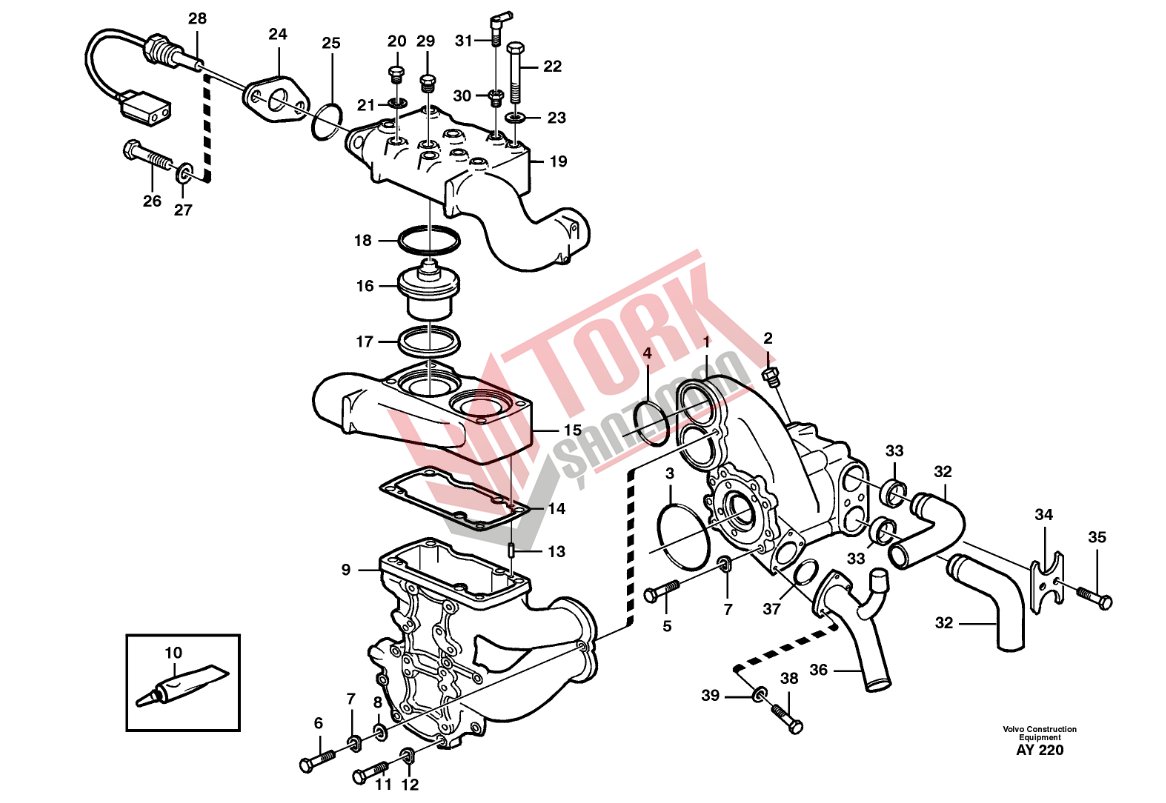

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11031373 |
Water pump | 1 |
| 2 | 479979 |
Plug | 2 |
| 3 | 925257 |
O-ring | 1 |
| 4 | 1664473 |
O-ring | 2 |
| 5 | 955542 |
Hexagon screw | 4 |
| 6 | 955535 |
Hexagon screw | 1 |
| 7 | 13942336 |
Spring washer | 5 |
| 8 | 13940097 |
Washer | 1 |
| 9 | 8193577 |
Thermostat housing | 1 |
| 10 | 1161277 |
Sealant | REQ |
| 11 | 955535 |
Hexagon screw | 4 |
| 955540 |
Hexagon screw | 1 | |
| 955541 |
Hexagon screw | 3 | |
| 12 | 13942336 |
Spring washer | 7 |
| 13940097 |
Washer | 1 | |
| 13 | 13951973 |
Spring pin | 2 |
| 14 | 423352 |
Gasket | 1 |
| 15 | 470548 |
Thermostat housing | 1 |
| 16 | 8149182 |
Thermostat | 2 |
| 17 | 1544710 |
Sealing ring | 2 |
| 18 | 11000236 |
Sealing ring | 2 |
| 19 | 470554 |
Thermostat housing | 1 |
| 20 | 180761 |
Plug | 1 |
| 21 | 13947622 (7011996) |
Plane gasket | 1 |
| 22 | 959798 |
Hexagon screw | 4 |
| 23 | 13940097 |
Washer | 4 |
| 24 | 11031653 |
Flange | 1 |
| 25 | 469477 |
Sealing ring | 1 |
| 26 | 955524 |
Hexagon screw | 2 |
| 27 | 13941907 |
Washer | 2 |
| 28 | 11039193 |
Temperature sensor | 1 |
| 29 | 479977 |
Plug | 2 |
| 30 | 479954 |
Nipple | 1 |
| 31 | 942758 |
Nipple | 1 |
| 32 | 11030745 |
Tube End | 2 |
| 33 | 11030751 |
Sealing ring | 2 |
| 34 | 11030747 |
Lock washer | 1 |
| 35 | 13946934 |
Screw | 2 |
| 36 | 11110062 |
Connecting pipe | 1 |
| 37 | 977015 (925092) |
O-ring | 1 |
| 38 | 13940135 |
Screw | 3 |
| 39 | 13941907 |
Washer | 3 |
