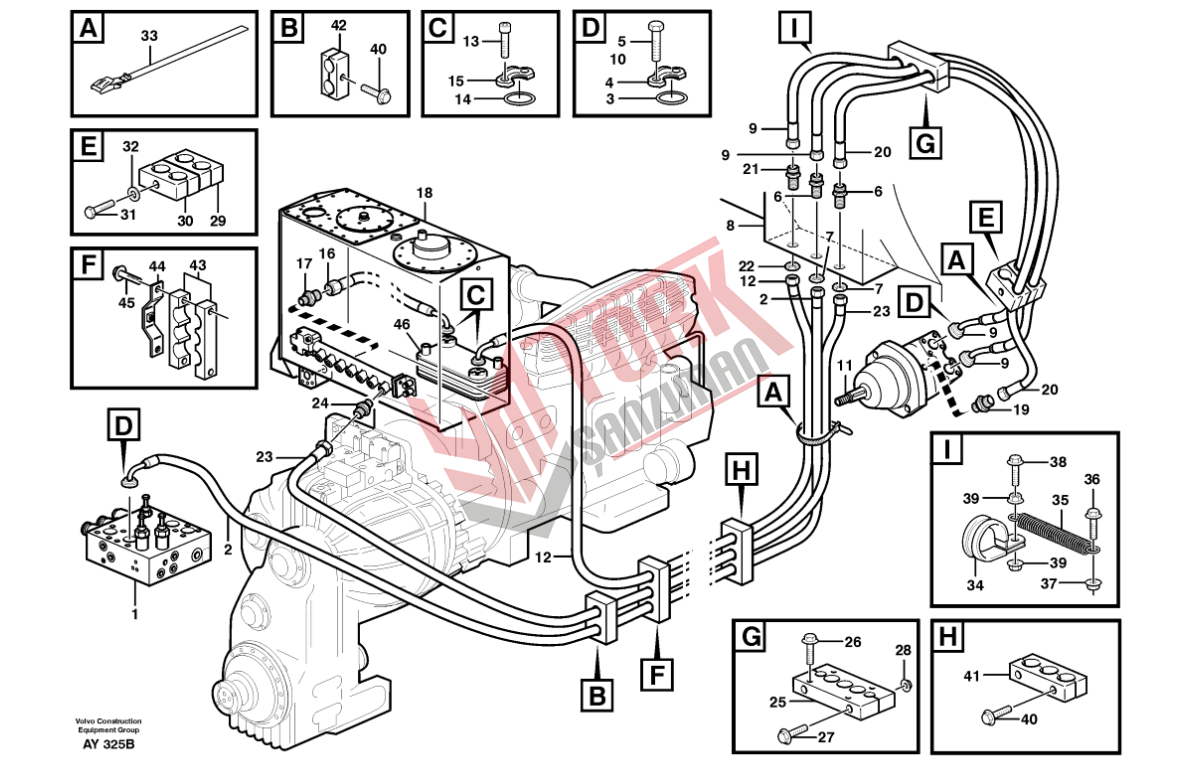

WHEEL LOADER VOLVO L220D
BASIC MACHINE
PROD NO 33811, L220D, SER NO 1001 - 1685
CAB
PROD NO 33813, Care Cab II
PROD NO 33822, Replacement version
TRANSMISSION
PROD NO 22503, HTE300
DRIVING AXLE
PROD NO 23876, AWB 50, front
PROD NO 23877, AWB 41, rear.
LOADING UNIT
PROD NO 33812
PROD NO 33821, Long Boom (93583)
ENGINE
Part No 8188460, TD 122KLE, Low exhaust emission version
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Valve block | 1 |
| 2 | 11163121 (11130882) |
Hose assembly | 1 |
| 3 | 13948699 |
O-ring | 3 |
| 4 | 11015454 |
Flange half | 6 |
| 11015454 |
Flange half | 6 | |
| 5 | 13970948 |
Hexagon screw | 4 |
| 946472 |
Flange screw | 4 | |
| 6 | 13933961 |
Nipple | 2 |
| 990739 (4880663) |
•O-ring | 4 | |
| 7 | 13933962 |
Lock nut | 2 |
| 8 | |
Brace | 1 |
| 9 | 11163122 (11130817) |
Hose assembly | 2 |
| 10 | 959239 |
Hex. socket screw | 8 |
| 946472 |
Flange screw | 8 | |
| 11 | |
Hydraulic motor | 1 |
| 12 | 11163035 (11130883) |
Hose assembly | 1 |
| 13 | 959239 |
Hex. socket screw | 8 |
| 946472 |
Flange screw | 8 | |
| 14 | 990756 (13948700) |
Sealing ring | 2 |
| 15 | 110154555 |
Flange Half | 4 |
| 11015455 |
Flange half | 4 | |
| 16 | 11163033 (11130881) |
Hose assembly | 1 |
| 17 | 935037 |
Nipple | 1 |
| 990739 (4880663) |
•O-ring | 1 | |
| 14211859 |
•Sealing ring | 1 | |
| 18 | |
Hydr fluid tank | 1 |
| 19 | 13933853 |
Nipple | 1 |
| 990738 (4880493) |
•O-ring | 1 | |
| 14211863 |
•Sealing ring | 1 | |
| 20 | 11148979 (13933968) |
Hose assembly | 1 |
| 21 | 13933922 |
Nipple | 1 |
| 990738 |
•O-ring | 2 | |
| 22 | 13933867 |
Lock nut | 1 |
| 23 | 11148977 |
Hose assembly | 1 |
| 24 | 13933853 |
Nipple | 1 |
| 990738 (4880493) |
•O-ring | 1 | |
| 14211863 |
•Sealing ring | 1 | |
| 25 | 11130929 |
Clamp | 1 |
| 26 | 13965176 |
Screw | 2 |
| 27 | 13965182 |
Screw | 2 |
| 28 | 948645 |
Flange lock nut | 2 |
| 29 | 4881125 |
Clamp | 1 |
| 30 | 11075783 |
Clamp | 1 |
| 31 | 13965182 |
Screw | 1 |
| 32 | 11117464 (13960141) |
Plain washer | 1 |
| 33 | 11104606 (4861704) |
Retaining strap | 1 |
| 34 | 13945734 |
Clamp | 1 |
| 35 | 11130367 |
Tension spring | 1 |
| 36 | 13947760 |
Screw | 1 |
| 37 | 13945408 |
Nut | 1 |
| 38 | 13947542 |
Screw | 1 |
| 39 | 13949278 |
Flange lock nut | 2 |
| 40 | 13947760 |
Screw | 2 |
| 41 | 11148128 |
Clamp | 1 |
| 42 | 11075783 |
Clamp | 1 |
| 43 | 11148128 |
Clamp | 2 |
| 44 | 11148130 |
Anchorage | 1 |
| 45 | 13948217 |
Screw | 2 |
| 46 | |
Oil cooler | 1 |
