WHEEL LOADER VOLVO L220D
BASIC MACHINE
PROD NO 33811, L220D, SER NO 1001 - 1685
CAB
PROD NO 33813, Care Cab II
PROD NO 33822, Replacement version
TRANSMISSION
PROD NO 22503, HTE300
DRIVING AXLE
PROD NO 23876, AWB 50, front
PROD NO 23877, AWB 41, rear.
LOADING UNIT
PROD NO 33812
PROD NO 33821, Long Boom (93583)
ENGINE
Part No 8188460, TD 122KLE, Low exhaust emission version
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| |

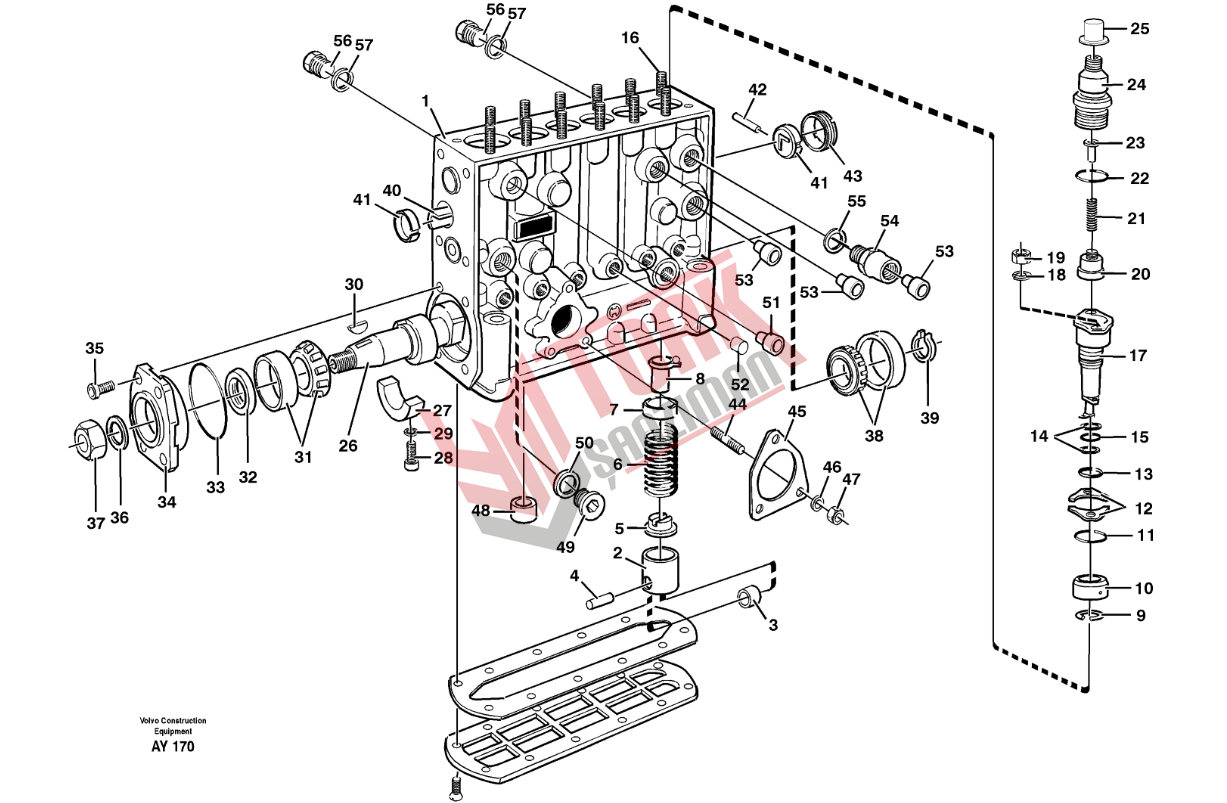

Injection Pump | 1 | |
| 1 | |
•Pump housing | 1 |
| 2 | 3094339 |
•Tappet | 6 |
| 3 | |
••Roller | 6 |
| 4 | 240779 |
••Shaft | 6 |
| 5 | 862408 |
•Disc spring | 6 |
| 6 | 1699465 |
•Compression spring | 6 |
| 7 | 239984 |
•Spring disc | 6 |
| 8 | 862406 |
•Spring sleeve | 6 |
| 9 | 1699457 |
•Stop ring | 6 |
| 10 | 1699766 |
•Cap | 6 |
| 11 | 862402 |
•O-ring | 6 |
| 12 | 844990 |
•Shim | REQ |
| 847428 |
•Shim | REQ | |
| 844991 |
•Shim | REQ | |
| 844992 |
•Shim | REQ | |
| 844993 |
•Shim | REQ | |
| 844994 |
•Shim | REQ | |
| 844995 |
•Shim | REQ | |
| 244635 |
•Shim | REQ | |
| 244381 |
•Shim | REQ | |
| 244382 |
•Shim | REQ | |
| 244383 |
•Shim | REQ | |
| 244384 |
•Shim | REQ | |
| 244385 |
•Shim | REQ | |
| 244386 |
•Shim | REQ | |
| 13 | 11996307 |
•O-ring | 6 |
| 14 | 3094382
(11700716) |
•Back-up ring | 12 |
| 15 | 240422 |
•Sealing ring | 6 |
| 16 | 1699459 |
•Stud | 12 |
| 17 | 11704337 |
•Pump element | 6 |
| 18 | |
•Washer | 12 |
| 19 | 1699460 |
•Nut | 12 |
| 20 | 11704266 |
•Delivery valve | 6 |
| 21 | 1699454 |
•Compression spring | 6 |
| 22 | 862400 |
•O-ring | 6 |
| 23 | 1699453 |
•Peg | 6 |
| 24 | 1699452 |
•Delivery valve retainer | 6 |
| 25 | |
•Protecting casing | 6 |
| 26 | 11996308 |
•Camshaft | 1 |
| 27 | 862417 |
•Bearing | 1 |
| 28 | 1699470 |
•Screw | 2 |
| 29 | 1699471 |
•Sealing ring | 2 |
| 30 | 7035168 |
•Key | 1 |
| 31 | 1699472 |
•Roller bearing | 1 |
| 32 | 1699474 |
•Sealing ring | 1 |
| 33 | 862423 |
•O-ring | 1 |
| 34 | 1699473 |
•Cover | 1 |
| 35 | 862415 |
•Screw | 4 |
| 36 | 1699475 |
•Spring washer | 1 |
| 37 | 1699476 |
•Nut | 1 |
| 38 | 11705427 |
•Roller bearing | 1 |
| 39 | 914462 |
•Snap ring | 1 |
| 40 | 11705057 |
•Control rod | 1 |
| 41 | 240014 |
•Guide sleeve | 2 |
| 42 | |
•Pin | 1 |
| 43 | 244699 |
•Ring | 1 |
| 44 | 130673 |
•Stud | 3 |
| 45 | 863370
(6232208) |
•Gasket | 1 |
| 46 | 13949607 |
•Washer | 3 |
| 47 | 940197 |
•Hexagon nut | 3 |
| 48 | 1697956 |
•Cap | 6 |
| 49 | 7243263 |
•Plug | 1 |
| 50 | 949329 |
•Gasket | 1 |
| 51 | |
•Protecting casing | 1 |
| 52 | 11998400 |
•Cap | 6 |
| 53 | |
•Protecting casing | 3 |
| 54 | 11996309 |
•Overflow valve | 1 |
| 55 | 13947621 |
•Plane gasket | 1 |
| 56 | 243011 |
•Plug | 2 |
| 57 | 13947621 |
•Plane gasket | 2 |
| 11998401 |
Repair kit | 1 |
