WHEEL LOADER VOLVO L150G
BASIC MACHINE
PROD NO 33010, L150G, S/N 22004 -
PROD NO 33010, L150G, S/N 18501 -
CAB
PROD NO. 11294048
TRANSMISSION
PROD NO. 22574, HTL221
DRIVE AXLES
PROD NO. 56000, AWB 40B, front
PROD NO. 56054, AWB 40C, rear
PROD NO. 56052, AWB 40B, rear. 85319
LOADER UNIT
PROD NO. 33532, LU L150G LUB
PROD NO. 33036, LU 150G LB, 84902
ENGINE
Part number 15049439, D13H-E, (15173113, D13H, AME/After market engine), 85420
Part number 15117870, D13H-F, (15173113, D13H, AME/After market engine), 85421
Part number 15049437, D13F-C, (15173114, D13F, AME/After market engine), 85424

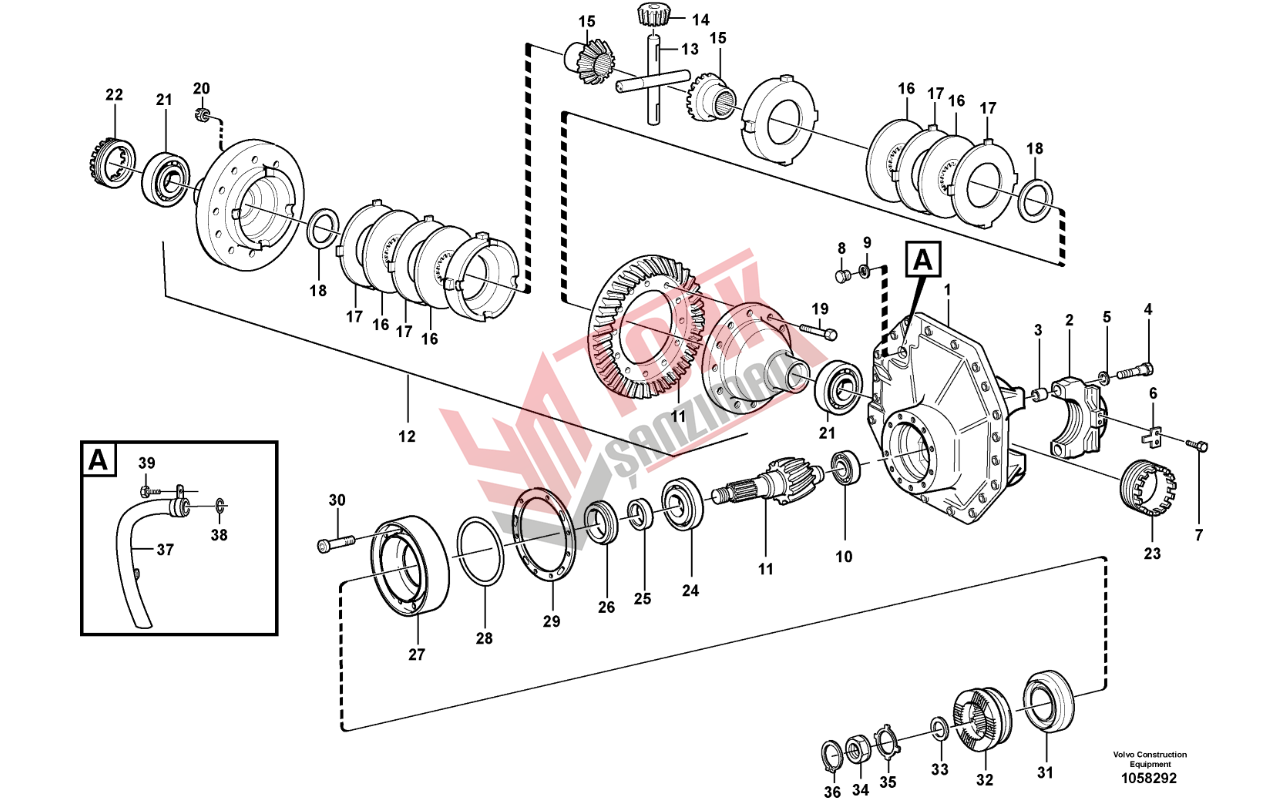

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 11103248 |
Differential carrier | 1 | |
| 1 | 11103234 |
•Centre housing | 1 |
| 1 | 15172265 |
•Centre housing | 1 |
| 2 | |
••Cap | 2 |
| 3 | 310719 |
••Bushing | 4 |
| 4 | 1524242 |
••Screw | 4 |
| 5 | 13946304 |
••Washer | 4 |
| 6 | 1524631 |
•Lock plate | 2 |
| 7 | 996328 |
•Flange screw | 4 |
| 8 | 914396 |
•Plug | 1 |
| 9 | 13947630 |
•Gasket | 1 |
| 10 | 183688 |
•Roller bearing | 1 |
| 11 | 11103266 |
•Drive gear set | 1 |
| 12 | 11102884 |
•Limited slip differential | 1 |
| 13 | 11988234 |
••Spider | 1 |
| 14 | 11707504 |
••Differential side gear | 4 |
| 15 | 11707505 |
••Differential side gear | 2 |
| 16 | 11707507 |
••Friction disc | 4 |
| 17 | 11707508 |
••Friction plate | REQ |
| 17 | 11707509 |
••Friction plate | REQ |
| 17 | 11707510 |
••Friction plate | REQ |
| 18 | 11707506 |
••Thrust washer | 2 |
| 19 | 1524673 |
•Screw | 16 |
| 20 | 13946363 |
•Lock nut | 16 |
| 21 | 184637 |
•Roller bearing | 2 |
| 22 | 1523736 |
•Setting nut | 1 |
| 23 | 11102411 |
•Bearing adjuster | 1 |
| 24 | 1523666 |
•Roller bearing | 1 |
| 25 | 1523232 |
•Spacer sleeve | REQ |
| 25 | 1523233 |
•Spacer sleeve | REQ |
| 25 | 1523234 |
•Spacer sleeve | REQ |
| 25 | 1523235 |
•Spacer sleeve | REQ |
| 25 | 1523236 |
•Spacer sleeve | REQ |
| 25 | 1523237 |
•Spacer sleeve | REQ |
| 25 | 1523623 |
•Spacer sleeve | REQ |
| 25 | 1523624 |
•Spacer sleeve | REQ |
| 26 | 11035994 |
•Roller bearing | 1 |
| 27 | 11103236 |
•Pinion bearing sleeve | 1 |
| 28 | 13944686 |
•O-ring | 1 |
| 29 | 11035603 |
•Shim | REQ |
| 29 | 11035606 |
•Shim | REQ |
| 29 | 11035607 |
•Shim | REQ |
| 29 | 11035608 |
•Shim | REQ |
| 30 | 13977111 |
•Allen Hd Screw | 8 |
| 31 | 17264219 (11102883) |
•Sealing ring | 1 |
| 32 | 11103308 |
•Companion flange | 1 |
| 33 | 1523317 |
•Washer | 1 |
| 34 | 1522293 |
•Nut | 1 |
| 35 | 1523318 |
•Lock washer | REQ |
| 35 | 1523319 |
•Lock washer | REQ |
| 36 | 914484 |
•Snap ring | 1 |
| 37 | 11102886 |
•Pipe | 1 |
| 38 | 13977183 |
•O-ring | 1 |
| 39 | 997349 |
•Flange screw | 2 |
