WHEEL LOADER VOLVO L150G
BASIC MACHINE
PROD NO 33010, L150G, S/N 22004 -
PROD NO 33010, L150G, S/N 18501 -
CAB
PROD NO. 11294048
TRANSMISSION
PROD NO. 22574, HTL221
DRIVE AXLES
PROD NO. 56000, AWB 40B, front
PROD NO. 56054, AWB 40C, rear
PROD NO. 56052, AWB 40B, rear. 85319
LOADER UNIT
PROD NO. 33532, LU L150G LUB
PROD NO. 33036, LU 150G LB, 84902
ENGINE
Part number 15049439, D13H-E, (15173113, D13H, AME/After market engine), 85420
Part number 15117870, D13H-F, (15173113, D13H, AME/After market engine), 85421
Part number 15049437, D13F-C, (15173114, D13F, AME/After market engine), 85424

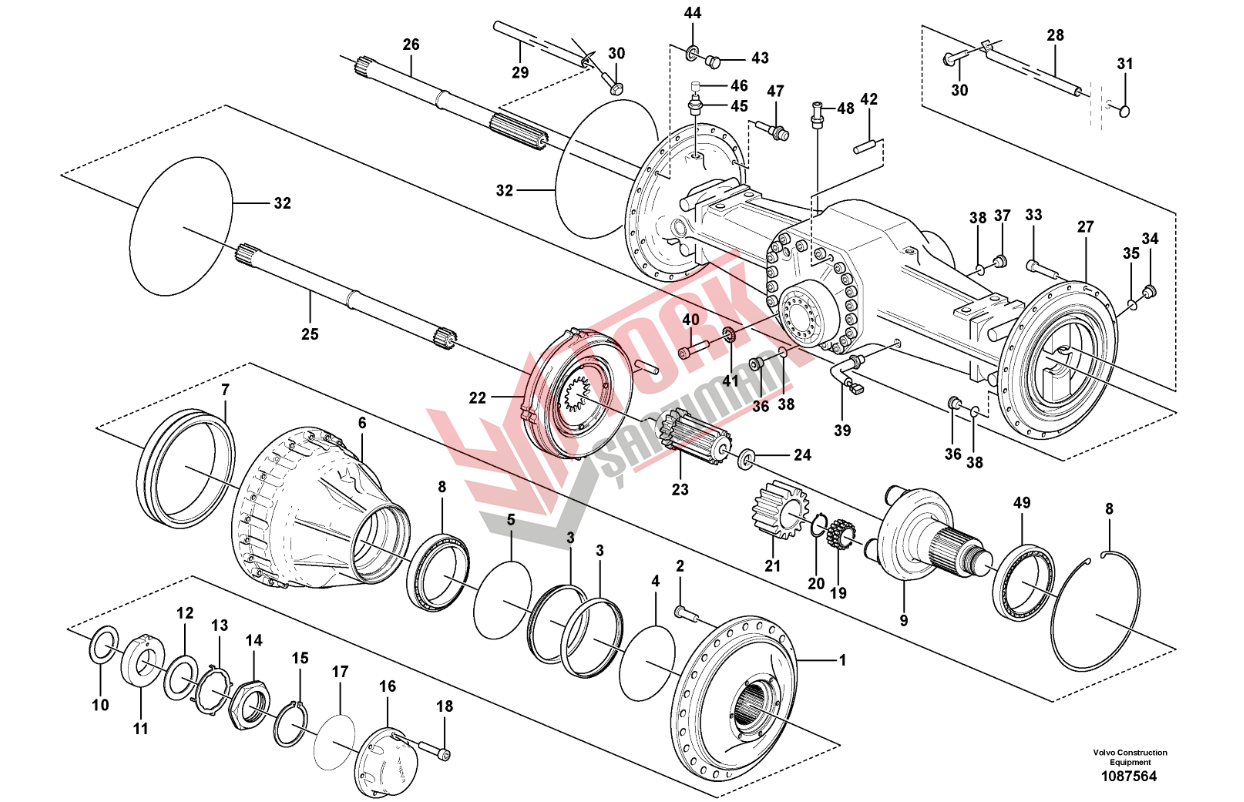

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 56054 |
Planet shaft | 1 | |
| 1 | 11103184 |
•Hub | 2 |
| 2 | 15123158 |
••Wheel stud | 48 |
| 3 | 11102533 |
•Sealing ring | 2 |
| 4 | 11704007 |
••O-ring | 2 |
| 5 | 11704006 |
••O-ring | 2 |
| 6 | 11103187 |
•Hub retainer | 2 |
| 6 | 17367830 |
•Hub retainer | 2 |
| 11103186 |
••Hub retainer | 2 | |
| |
••Hub retainer | 2 | |
| 7 | 17247015 |
••Gear ring | 2 |
| 8 | 976936 |
••Retaining ring | 2 |
| 9 | 17421171 (11102912) |
•Planet carrier | 2 |
| 10 | 11102823 |
•Shim | REQ |
| 10 | 11034512 |
•Shim | REQ |
| 10 | 11034513 |
•Shim | REQ |
| 10 | 11034514 |
•Shim | REQ |
| 11 | 11034507 |
•Washer | 2 |
| 12 | 1523317 |
•Washer | 2 |
| 13 | 1523319 |
•Lock washer | REQ |
| 13 | 1523318 |
•Lock washer | REQ |
| 14 | 1522293 |
•Nut | 2 |
| 15 | 914484 |
•Snap ring | 2 |
| 16 | 11102396 |
•Cover | 2 |
| 17 | 13980042 |
•O-ring | 2 |
| 18 | 967634 |
•Hex. socket screw | 12 |
| 19 | 11035001 |
•Bearing | 8 |
| 20 | 914474 |
•Snap ring | 8 |
| 21 | 11035819 |
•Planet gear | 8 |
| 22 | |
•Brake | 2 |
| 23 | 11103177 |
•Sun gear | 2 |
| 24 | 11035554 |
•Washer | 2 |
| 25 | 11102829 |
•Drive shaft | 1 |
| 26 | 11102830 |
•Drive shaft | 1 |
| 27 | 15153093 |
•Axle casing | 1 |
| 17210969 |
•Axle casing | 1 | |
| 28 | 11034927 |
•Pipe | 1 |
| 29 | 11034926 |
•Pipe | 1 |
| 11102370 |
•Pipe | 2 | |
| 30 | 946440 |
•Flange screw | 2 |
| 30 | 996328 |
•Flange screw | 4 |
| 31 | 955102 |
•Expansion plug | 2 |
| 32 | 11034910 |
•O-ring | 2 |
| 33 | 949544 |
•Hex. socket screw | 40 |
| 34 | 13968610 |
•Plug | 2 |
| 35 | 13976109 |
•O-ring | 2 |
| 36 | 11102187 |
•Magnetic plug | 3 |
| 37 | 11034156 |
•Plug | 1 |
| 38 | 958228 |
•O-ring | 4 |
| 39 | 15153124 |
•Temperature sensor | 1 |
| 40 | 949544 |
•Hex. socket screw | 20 |
| 41 | 941912 |
•Spring washer | 20 |
| 42 | 950711 |
•Pin | 1 |
| 43 | 960631 |
•Plug | 2 |
| 44 | 13947622 |
•Plane gasket | 2 |
| 45 | 4871469 |
•Air vent valve | 2 |
| 46 | 11034256 |
••Protecting cap | 2 |
| 47 | 11102446 |
•Wear Indicator | 2 |
| 976970 |
••O-ring | 2 | |
| 48 | 13961656 |
•Nipple | 1 |
| 49 | 184836 |
•Roller bearing | 4 |
