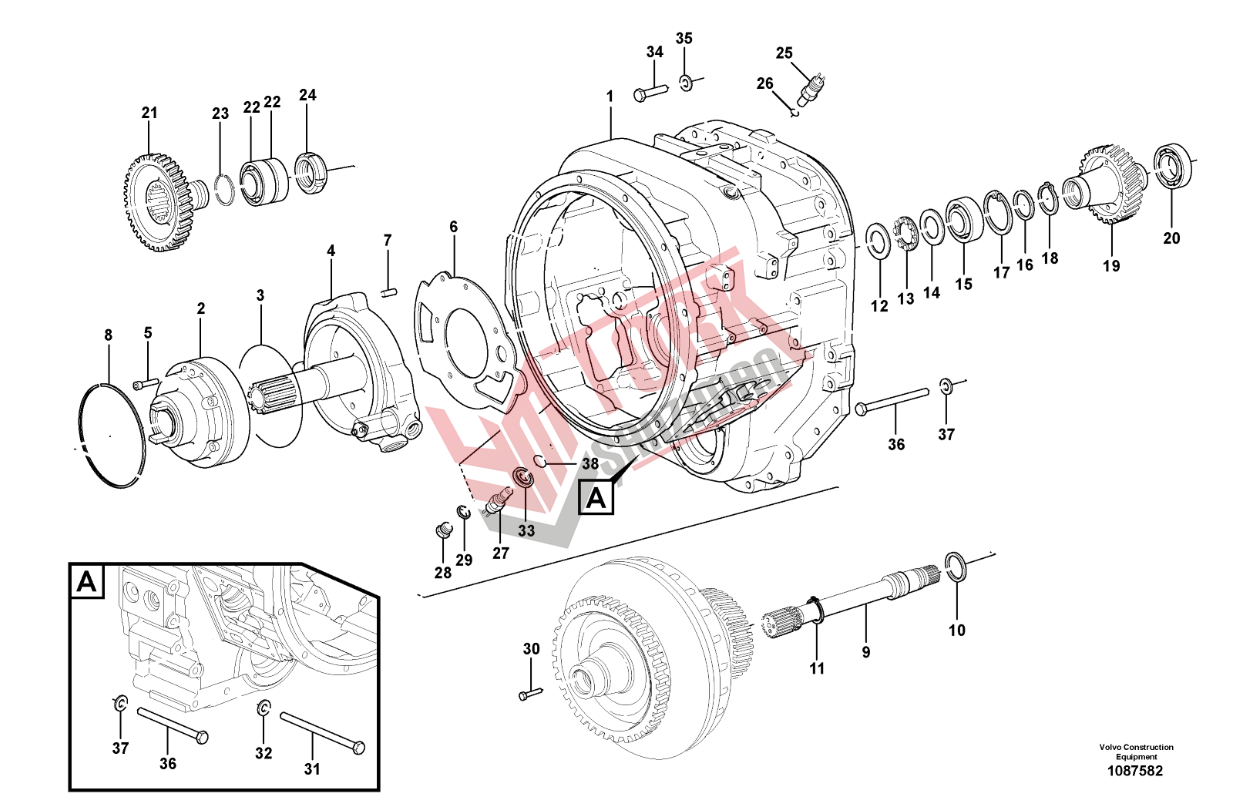

+90 552 671 32 12TRANSMISSION, HYDRAULIC CONTROL > 421/100 Converter housing, gears and shafts 22593, 22722
WHEEL LOADER VOLVO L120GZ
BASIC MACHINE
PROD NO 54509, S/N 671503-
CAB
PROD NO. 54510
TRANSMISSION
PROD NO. 22593, HTE205B
PROD NO. 22722, HTE205C
DRIVE AXLES
PROD NO. 56005, AWB 31, front
PROD NO. 56006, AWB 30, rear
PROD NO. 56007, AWB 30, rear. 83041
LOADER UNIT
PROD NO. 33029, LU L120G LUB
PROD NO. 33039, LU 120G LB LUB, 84901
ENGINE
Part number 17258799 D7 TIER3
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 15112296 |
Converter housing | 1 |
| 2 | |
Pump | 1 |
| 15093008 |
•Pump | 1 | |
| 3 | 11706833 |
••O-ring | 1 |
| 4 | 11038738 |
•Converter base | 1 |
| 13959212 |
•Allen Hd Screw | 1 | |
| 5 | 959250 |
Hex. socket screw | 6 |
| 6 | 17429964 |
Gasket | 1 |
| 7 | 11036468 |
Locating pin | 1 |
| 8 | 11419318 |
Piston ring | 1 |
| 9 | 11037660 |
Shaft | 1 |
| 9 | 17406889 |
Shaft | |
| 10 | 11037019 |
Piston ring | 1 |
| 11 | 13947902 |
Lock ring | 1 |
| 12 | 184230 |
Housing washer | 1 |
| 13 | 184336 |
Roller and cage assembly | 1 |
| 14 | 184212 |
Shaft washer | 1 |
| 15 | 183124 |
Roller bearing | 1 |
| 16 | 11037682 |
Washer | 1 |
| 17 | 13949905 |
Snap ring | 1 |
| 18 | 11038728 |
Snap ring | 1 |
| 19 | 17206148 |
Gear | 1 |
| 20 | 184853 |
Roller bearing | 1 |
| 21 | 15034972 |
Gear | 2 |
| 21 | 17316414 |
Gear | |
| 22 | 11037809 |
Roller bearing | 2 |
| 23 | 11037479 |
Snap ring | 2 |
| 24 | 11037807 |
Lock nut | 2 |
| 25 | 15090257 |
Induction sensor | 1 |
| 26 | |
O-ring | 1 |
| 27 | 15090261 |
Induction sensor | 1 |
| 28 | 13960632 |
Plug | 1 |
| 29 | 7011998 |
Gasket | 1 |
| 30 | 996329 |
Hex. socket screw | 3 |
| 31 | 13970989 |
Hexagon screw | 3 |
| 32 | 13949608 |
Washer | 3 |
| 33 | 11038735 |
Spacer washer | 1 |
| 34 | 970978 |
Hexagon screw | 23 |
| 35 | 13949608 |
Washer | 23 |
| 36 | 970988 |
Hexagon screw | 5 |
| 37 | 13949608 |
Washer | 5 |
| 38 | 955995 |
O-ring | - |
