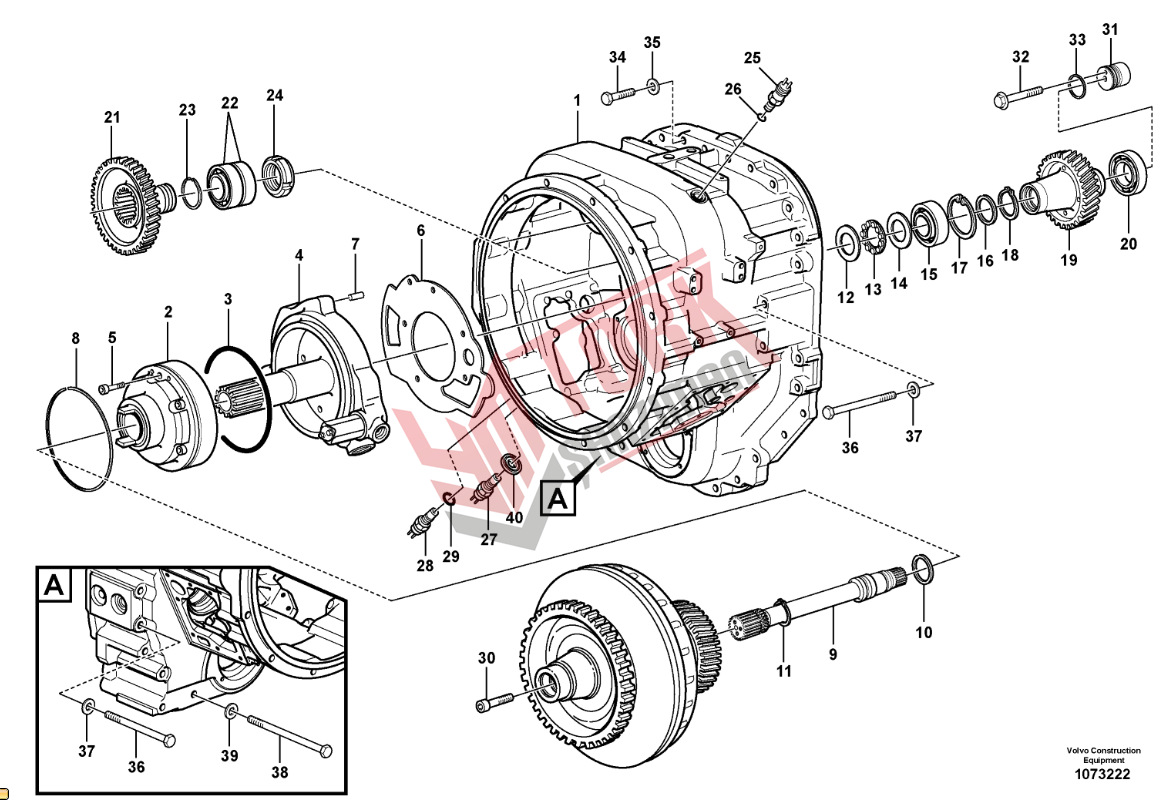

+90 552 671 32 12TRANSMISSION, HYDRAULIC CONTROL > 421/500 Converter housing, gears and shafts 22598, 22705
WHEEL LOADER VOLVO L110H
BASIC MACHINE
PROD NO 33041, L110H, S/N 10005 - 11490
PROD NO 33041, L110H, S/N 631001 - 631417
CAB
PROD NO. 11294117
TRANSMISSION
PROD NO. 22595, HTE206
PROD NO. 22598, HTL206
DRIVE AXLES
PROD NO. 56005, AWB 31, front
PROD NO. 56006, AWB 30, rear
PROD NO. 56007, AWB 30, rear. 83041
LOADER UNIT
PROD NO. 33028, LU L110H LUB
PROD NO. 33038, LU L110H LB LUB
ENGINE
Part number. 17211901, 85818, D8, USA
Part number. 17211902, 85819, D8, EU
Part number. 17256090, 86019, D8, USA
Part number. 17256091, 86020, D8, EU
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 17218945 |
Converter housing | 1 |
| 2 | |
Pump | 1 |
| 15093008 |
•Pump | 1 | |
| 3 | 11706833 |
••O-ring | 1 |
| 4 | 15101564 |
•Converter base | 1 |
| 5 | 959250 |
Hex. socket screw | 6 |
| 6 | 11145410 |
Gasket | 1 |
| 7 | 11036468 |
Locating pin | 1 |
| 8 | 11419318 |
Piston ring | 1 |
| 9 | 17206667 |
Turbine shaft | 1 |
| 10 | 11037019 |
Piston ring | 1 |
| 11 | 17208637 |
Snap ring | 1 |
| 12 | 15160296 |
Thrust washer | 1 |
| 13 | 184336 |
Roller and cage assembly | 1 |
| 14 | 15162536 |
Thrust washer | 1 |
| 15 | 183124 |
Roller bearing | 1 |
| 16 | 11037682 |
Washer | 1 |
| 17 | 13949905 |
Snap ring | 1 |
| 18 | 11038728 |
Snap ring | 1 |
| 19 | 17208488 |
Gear | 1 |
| 20 | 184853 |
Roller bearing | 1 |
| 21 | 15034972 |
Gear | 2 |
| 22 | 11037809 |
Roller bearing | 2 |
| 23 | 11037479 |
Snap ring | 2 |
| 24 | 11037807 |
Lock nut | 2 |
| 25 | 15090257 |
Induction sensor | 1 |
| 26 | 13976109 |
O-ring | 1 |
| 27 | 15090261 |
Induction sensor | 1 |
| 28 | 15090274 |
Induction sensor | 1 |
| 29 | 13976109 |
O-ring | 1 |
| 30 | 15043955 |
Screw | 1 |
| 31 | 15110003 |
Adapter sleeve | 1 |
| 32 | 13965178 |
Screw | 1 |
| 33 | 15009097 |
Sealing ring | 1 |
| 34 | 970978 |
Hexagon screw | 23 |
| 35 | 13949608 |
Washer | 23 |
| 36 | 970988 |
Hexagon screw | 5 |
| 37 | 13949608 |
Washer | 5 |
| 38 | 13970989 |
Hexagon screw | 3 |
| 39 | 13949608 |
Washer | 3 |
| 40 | 11038735 |
Spacer washer | 1 |
