WHEEL LOADER VOLVO L110H
BASIC MACHINE
PROD NO 33041, L110H, S/N 10005 - 11490
PROD NO 33041, L110H, S/N 631001 - 631417
CAB
PROD NO. 11294117
TRANSMISSION
PROD NO. 22595, HTE206
PROD NO. 22598, HTL206
DRIVE AXLES
PROD NO. 56005, AWB 31, front
PROD NO. 56006, AWB 30, rear
PROD NO. 56007, AWB 30, rear. 83041
LOADER UNIT
PROD NO. 33028, LU L110H LUB
PROD NO. 33038, LU L110H LB LUB
ENGINE
Part number. 17211901, 85818, D8, USA
Part number. 17211902, 85819, D8, EU
Part number. 17256090, 86019, D8, USA
Part number. 17256091, 86020, D8, EU

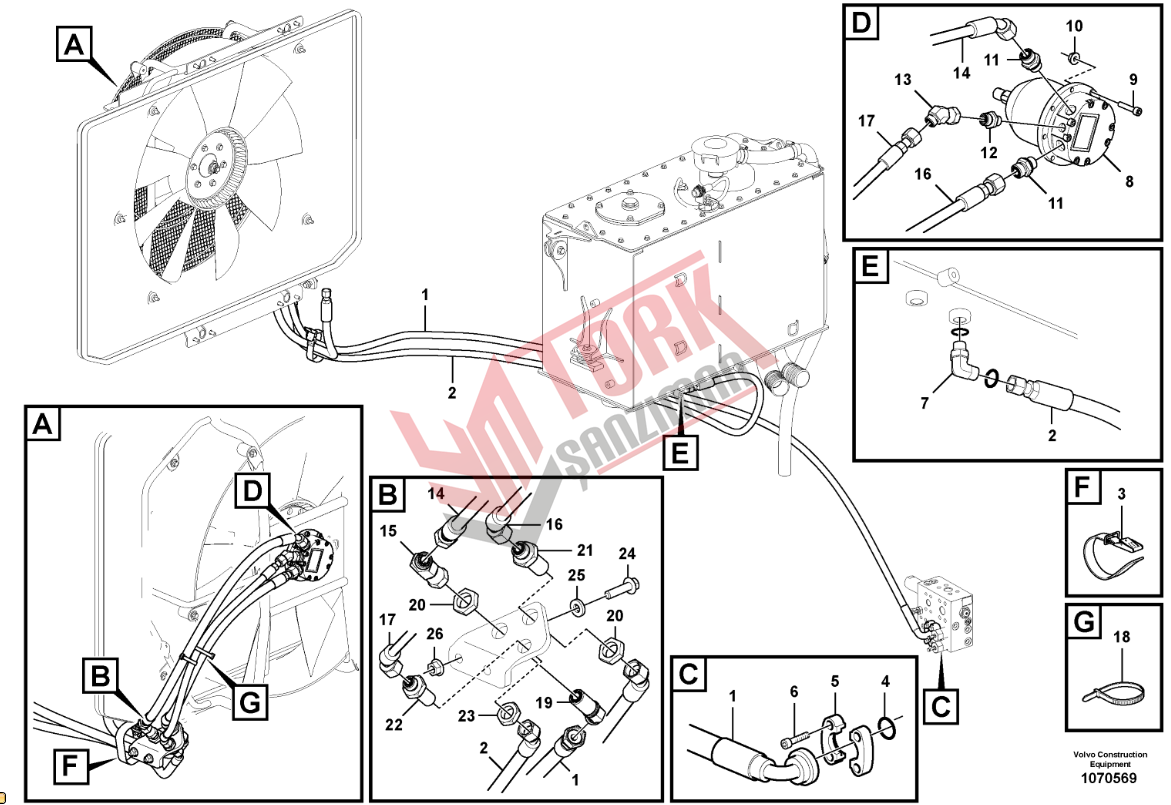

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 16615833 |
Hose assembly | 1 |
| 2 | 11410241 |
Hose assembly | 1 |
| 3 | 11104606 |
Retaining strap | 1 |
| 4 | 990742 |
O-ring | 1 |
| 5 | 935312 |
Flange half | 2 |
| 6 | 13946752 |
Screw | 4 |
| 7 | 13933865 |
Elbow nipple | 1 |
| 8 | 11410505 |
Hydraulic motor | 1 |
11707895 |
•Sealing ring | 1 | |
| 11707896 |
•O-ring | 1 | |
| 11708755 |
•Lock ring | 1 | |
| 9 | 959207 |
Hex. socket screw | 8 |
| 10 | 13949278 |
Flange lock nut | 8 |
| 11 | 13933853 |
Nipple | 2 |
| 990738 |
•O-ring | 2 | |
| 12 | 14345423 |
Nipple | 1 |
| 14211856 |
•Sealing ring | 1 | |
| 13 | 936929 |
Elbow nipple | 1 |
| 14 | 15800357 |
Hose assembly | 1 |
| 15 | 936081 |
Elbow nipple | 1 |
| 16 | 15100056 |
Hose assembly | 1 |
| 17 | 11173310 |
Hose assembly | 1 |
| 18 | 4881440 |
Cable tie | 2 |
| 19 | 937275 |
Elbow nipple | 1 |
| 20 | 13933867 |
Lock nut | 2 |
| 21 | 13933922 |
Nipple | 1 |
| 990738 |
•O-ring | 2 | |
| 22 | 935425 |
Nipple | 1 |
| 990737 |
•O-ring | 2 | |
| 23 | 935429 |
Lock nut | 1 |
| 24 | 13965185 |
Screw | 2 |
| 25 | 930842 |
Plain washer | 2 |
| 26 | 13971095 |
Flange nut | 2 |
