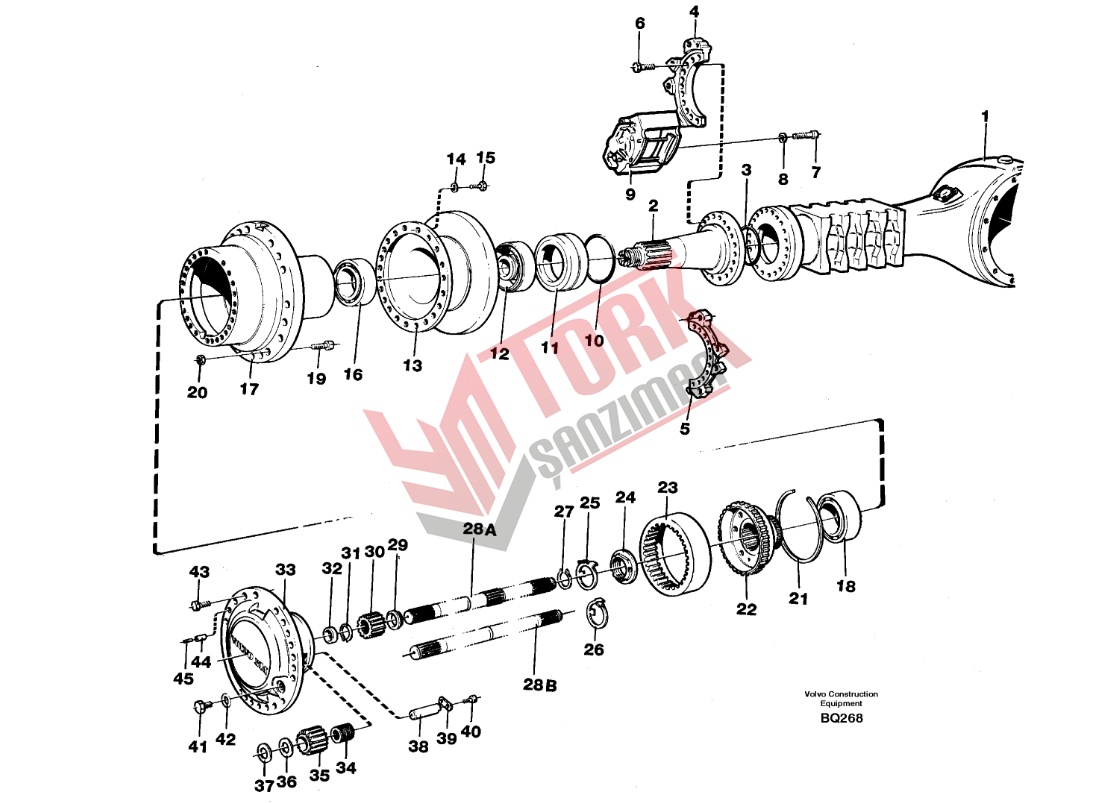

YM Güç Tork - 463/250 Hub reduction, axle 1 load unit 23580, 23793 - A35C

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1		Planetary axle	1
		Planetary axle
2	4870082	•Spindle	2
3	13948511	•O-ring	2
4		•Brake anchorage	2
5		•Brake anchorage	2
6	4717661	•Hex. socket screw	44
7		•Screw	12
8		•Sleeve	12
9		•Brake	4
10	13960248	•O-ring	2
11	11102644 (11102365)	•Spacer ring	2
12	11103124 (4870575)	•Sealing ring	2
13		•Brake disc	2
14		•Spring washer	40
15		•Screw	40
16	11102026	•Roller bearing	2
17	11102022	•Hub	2
18	183749	•Roller bearing	2
19	15123158	•Wheel stud	36
20	947972	•Wheel nut	36
21	4717022	•Snap ring	4
22	11034109	•Gear ring holder	2
23	11035551	•Gear ring	2
24	11102364	•Nut	2
25	4870108	•Lock ring	2
26	4870109	•Lock ring	2
27	945506	•Snap ring	2
28A	4717801	•Axle shaft	1
28B	4717802	•Axle shaft	1
29	11102909	•Thrust washer	2
30	11102302 (11034084)	•Sun gear	2
31	914474	•Snap ring	2
32	11102910	•Wear ring	2
33	11102678 (11034099)	•Planet carrier	2
34	4880969	•Roller bearing	6
35	11102301 (4717812)	•Planet gear	6
36	4870486	•Thrust washer	12
37	11034147 (4870485)	•Thrust washer	12
38	11034889	•Planetary Gear Shaft	6
39	4870445	•Striker plate	6
40	4870448	•Screw	12
41	11034156 (4717147)	•Plug	4
42	958228	•O-ring	4
43	13977565	•Hexagon screw	48
44	929198	•Pin	8
45	952004	•Spring pin	8
