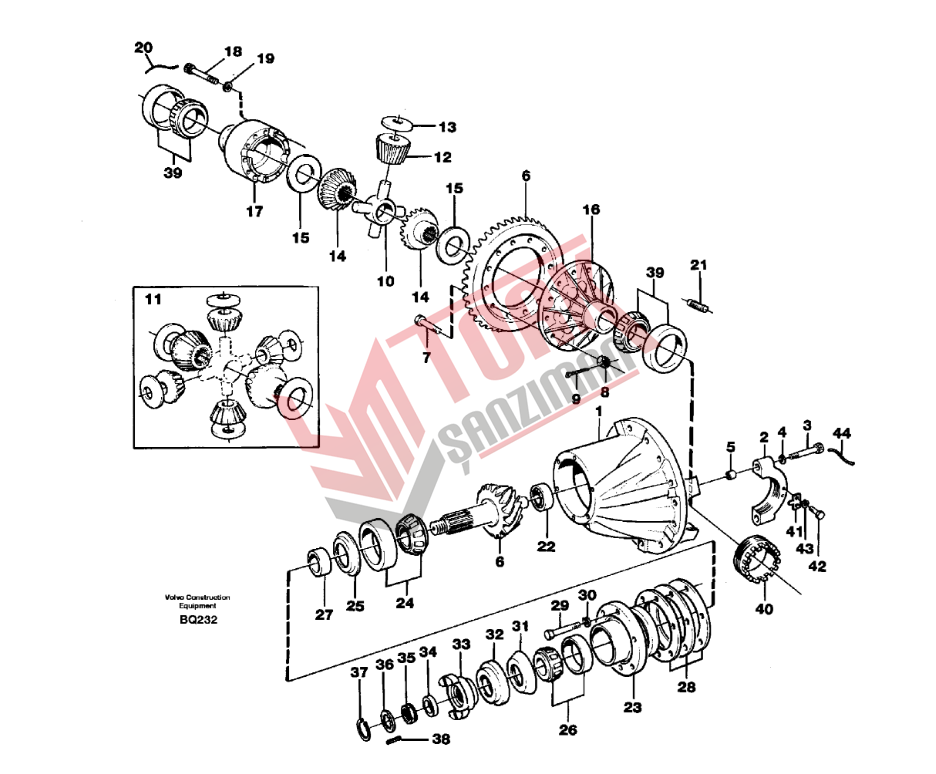

YM Güç Tork - 461/150 Final drive AH63L - A35C - A35C Volvo 4621-11000, 60001-70000

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
	1671924	Differential carrier	1
1	1524161	•Housing	1
2		••Cap	2
3	1524242 (946303)	••Screw	4
4	13946304	••Washer	4
5	310719	••Bushing	4
6	1522480	•Drive gear set	1
		••Crown wheel	1
		••Drive pinion	1
7	1673306 (191394)	•Screw	16
8	191055	•Nut	16
9	907847	•Split pin	16
10	1524395	•Spider	1
11	3094269	•Drive gear set	1
12	1524587	••Differential side gear	4
13	1524398	••Thrust Washer	4
14	17415136 (1524588)	••Differential side gear	2
15	1524589	••Thrust washer	2
16	1524396	•Differential housing	1
17	1524397	•Differential housing	1
18	1524399	•Flange screw	12
19	941912	•Spring washer	12
20		•Locking wire	REQ
21	1524638	•Screw	1
22	11102997 (1524331)	•Roller bearing	1
23	1523053	•Sleeve	1
24	184635	••Roller bearing	1
25	384477 (7384477)	••Oil plate	1
26	184633	••Roller bearing	1
27	384612 (7384612)	•Spacer ring	REQ
	384613 (7384613)	•Spacer ring	REQ
	384614 (7384614)	•Spacer ring	REQ
	384615 (7384615)	•Spacer ring	REQ
	384616 (7384616)	•Spacer ring	REQ
	384617 (7384617)	•Spacer ring	REQ
28	384068	•Spacer	REQ
	384604	•Spacer	REQ
	384070	•Spacer	REQ
	384072	•Spacer	REQ
29	955577	•Hexagon screw	6
30	941911	•Spring washer	6
31	943142	•Sealing ring	1
32	4717576	•Sealing ring	1
33	11036725	•Companion flange	1
34	4717222	•Washer	1
35	11036726 (4717223)	•Nut	1
36	4717221	•Lock washer	1
37	914478	•Snap ring	1
38	951952	•Spring pin	1
39	183704	•Roller bearing	2
40	384044	•Setting nut	1
	1522136	•Setting nut	1
41	1522426	•Lock washer	2
42	13955294 (955294)	•Screw	4
43	13941907 (941907)	•Washer	4
44		•Locking wire	2
