A35C
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| |

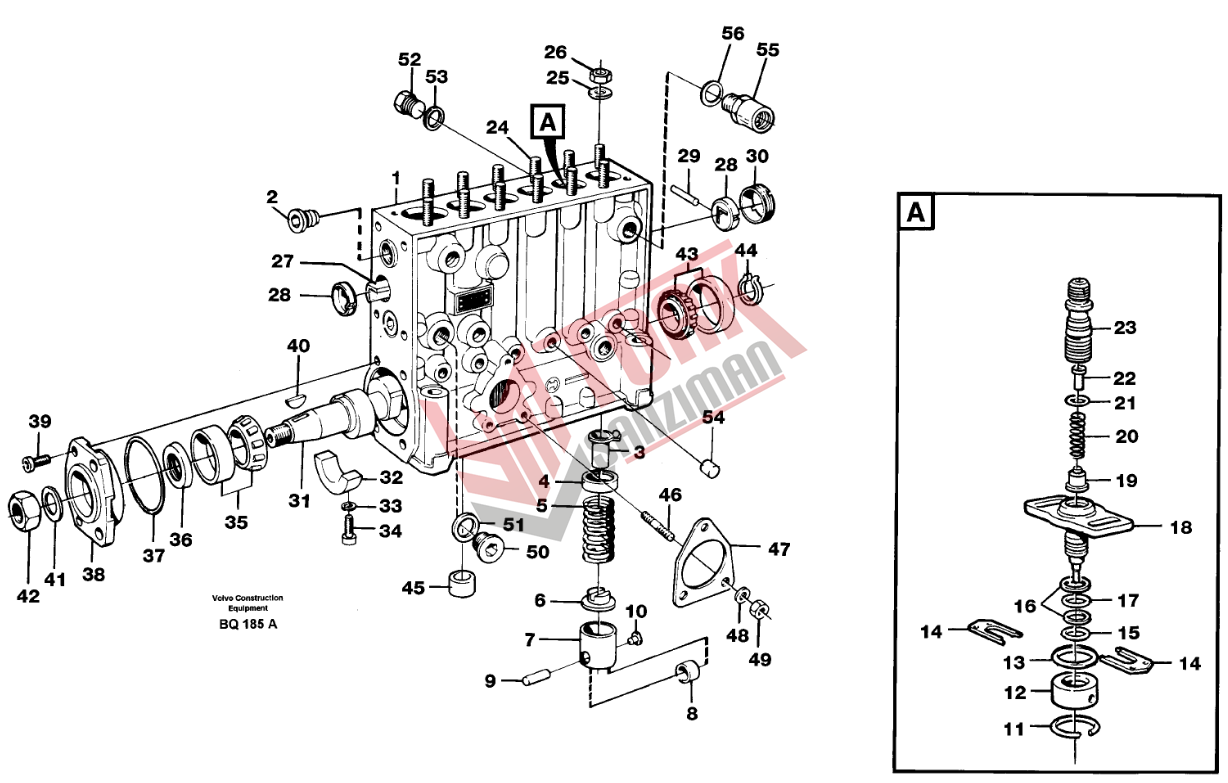

Injection Pump | 1 | |
| |
Injection pump | ||
| 1 | |
•Pump housing | 1 |
| 2 | |
••Plug | 1 |
| 3 | 862406 |
•Spring sleeve | 6 |
| 4 | 239984 (7239984) |
•Spring disc | 6 |
| 5 | 1699465 |
•Compression spring | 6 |
| 6 | 862408 |
•Disc spring | 6 |
| 7 | 3094339 (1699466) |
•Tappet | 6 |
| 8 | |
••Roller | 6 |
| 9 | |
••Bearing bolt | 6 |
| 10 | |
••Sliding block | 6 |
| 11 | 1699457 |
•Stop ring | 6 |
| 12 | 1699766 |
•Cap | 6 |
| 13 | 862402 |
•O-ring | 6 |
| 14 | 844990 |
•Shim | REQ |
| 847428 |
•Shim | REQ | |
| 844991 |
•Shim | REQ | |
| 844992 |
•Shim | REQ | |
| 844993 |
•Shim | REQ | |
| 844994 |
•Shim | REQ | |
| 844995 |
•Shim | REQ | |
| 244635 |
•Shim | REQ | |
| 244381 |
•Shim | REQ | |
| 244382 |
•Shim | REQ | |
| 244383 |
•Shim | REQ | |
| 244384 |
•Shim | REQ | |
| 244385 |
•Shim | REQ | |
| 244386 |
•Shim | REQ | |
| 15 | 11996307 |
•O-ring | 6 |
| 16 | 3094382 (1699543) |
•Back-up ring | 12 |
| 17 | 240422 |
•Sealing ring | 6 |
| 18 | 11704337 (11703515) |
•Pump element | 6 |
| 11704691 |
•Pump element | ||
| 19 | 11704266 |
•Delivery valve | 6 |
| 20 | 1699454 |
•Compression spring | 6 |
| 21 | 862400 |
•O-ring | 6 |
| 22 | 1699453 |
•Peg | 6 |
| 23 | 1699452 |
•Delivery valve retainer | 6 |
| 24 | 1699459 |
•Stud | 12 |
| 25 | |
•Washer | 12 |
| 26 | 1699460 |
•Nut | 12 |
| 27 | 241746 (7241746) |
•Control rod | 1 |
| 28 | 240014 (7240014) |
•Guide sleeve | 2 |
| 29 | |
•Lock pin | 1 |
| 30 | 244699 |
•Ring | 1 |
| 31 | 11996308 |
•Camshaft | 1 |
| 32 | 862417 |
•Bearing | 1 |
| 33 | 1699471 |
•Sealing ring | 2 |
| 34 | 1699470 |
•Screw | 2 |
| 35 | 1699472 |
•Roller bearing | 1 |
| 36 | 1699474 |
•Sealing ring | 1 |
| 37 | 862423 |
•O-ring | 1 |
| 38 | 1699473 |
•Cover | 1 |
| 39 | 862415 |
•Screw | 4 |
| 40 | 7035168 |
•Key | 1 |
| 41 | 1699475 |
•Spring washer | 1 |
| 42 | 1699476 |
•Nut | 1 |
| 43 | 863833 |
•Roller bearing | 1 |
| 44 | 914462 |
•Snap ring | 1 |
| 45 | 1697956 |
•Cap | 6 |
| 46 | 130673 (7130673) |
•Stud | 3 |
| 47 | 863370 (6232208) |
•Gasket | 1 |
| 48 | 13949607 |
•Washer | 3 |
| 49 | 940197 |
•Hexagon nut | 3 |
| 50 | 7243263 |
•Plug | 1 |
| 51 | 949329 |
•Gasket | 1 |
| 52 | 243011 (7243011) |
•Plug | 2 |
| 53 | 13947621 |
•Plane gasket | 2 |
| 54 | 11998400 |
•Cap | 6 |
| 55 | 11996309 |
•Overflow valve | 1 |
| 56 | 13947621 |
•Plane gasket | 1 |
| 11998401 |
Repair kit | 1 |
