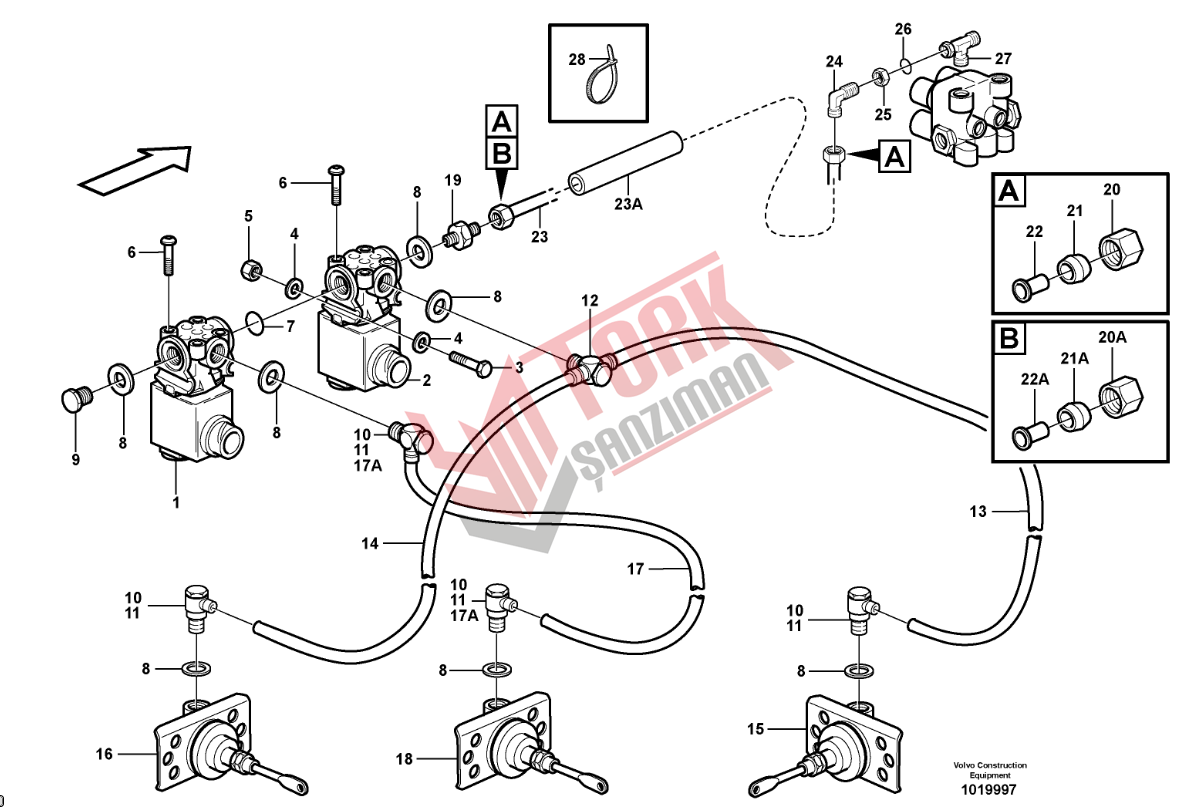

+90 552 671 32 12FRONT AXLE; REAR AXLE > 468/300 Pneumatic system, 6x6 and diff lock, load unit
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 1078316 |
Solenoid valve | 1 |
| 2 | 1078316 |
Solenoid valve | 1 |
| 3 | 13965176 |
Screw | 1 |
| 4 | 1589391 |
Washer | 2 |
| 5 | 13949278 |
Flange lock nut | 1 |
| 6 | 13946544 |
Screw | 4 |
| 7 | 1587176 |
O-ring | 1 |
| 8 | 990823 |
Gasket | 7 |
| 9 | 960629 |
Plug | 1 |
| 10 | 6626873 |
Fitting | 4 |
| 11192551 |
Banjo fitting | 3 | |
| 11 | 957175 |
•Gasket | 4 |
| 12 | 11062709 |
Fitting | 1 |
| 13 | 13945460 |
Plastic pipe | REQ |
| 14 | 13945460 |
Plastic pipe | REQ |
| 15 | |
Differential lock | |
| 16 | |
Differential lock | |
| 17 | 967975 |
Tube | REQ |
| 967975 |
Tube | REQ | |
| 17A | 11062357 |
Fitting | 2 |
| 18 | |
Longitud.diff | |
| 19 | 13966414 |
Nipple | 1 |
| 20 | 326596 |
Fitting nut | 2 |
| 20A | 326597 |
Fitting nut | 1 |
| 21 | 326599 |
Ferrule | 2 |
| 21A | 326600 |
Sleeve | 1 |
| 22 | 967559 |
Sleeve | 2 |
| 22A | 967548 |
Support sleeve | 1 |
| 23 | 967976 |
Tube | REQ |
| 945462 |
Tube | REQ | |
| 23A | 967976 |
Tube | REQ |
| 24 | 945963 |
Elbow nipple | 1 |
| 25 | 13945958 |
Nut | 1 |
| 26 | 943924 |
O-ring | 1 |
| 27 | |
T-nipple | 1 |
| 28 | 4821292 |
Cable tie | REQ |
