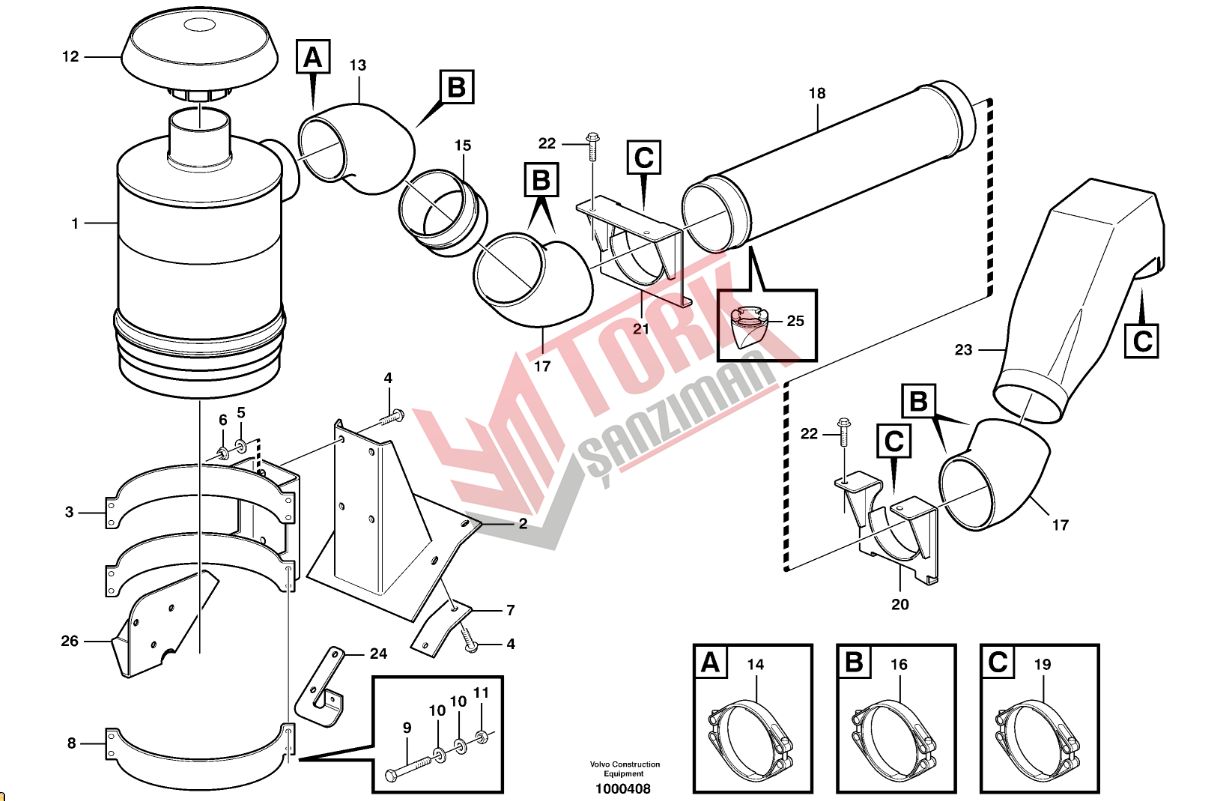

+90 552 671 32 12INLET SYSTEM; EXHAUST SYSTEM > 256/200 Oil bath air filter with fitting parts 81092
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Oil Bath Air Cl | 1 |
| 2 | 11121001 |
Bracket | 1 |
| 3 | 11051515 |
Attachment | 1 |
| 4 | 946472 |
Flange screw | 5 |
| 13965185 |
Screw | 1 | |
| 5 | 930842 (11055606) |
Plain washer | 4 |
| 6 | 13971098 |
Flange nut | 4 |
| 7 | 11121207 |
Plate | 1 |
| 8 | 11052124 |
Brace | 2 |
| 9 | 13965182 |
Screw | 8 |
| 10 | 11055605 |
Plain washer | 16 |
| 11190217 |
Spacer sleeve | 8 | |
| 11 | 948645 |
Flange lock nut | 8 |
| 12 | 11110260 |
Cover | 1 |
| 13 | 11121174 |
Hose | 1 |
| 14 | 11191149 (11062933) |
Hose clamp | 1 |
| 15 | 11121216 |
Tube | 1 |
| 16 | 11191150 (11062934) |
Hose clamp | 5 |
| 17 | 11121175 |
Hose | 2 |
| 18 | 11121176 |
Tube | 1 |
| 19 | 11191150 (11121685) |
Hose clamp | 3 |
| 20 | 11121380 |
Bracket | 1 |
| 21 | 11121378 |
Bracket | 1 |
| 22 | 946329 |
Flange screw | 4 |
| 23 | 11121179 |
Adapter | 1 |
| 24 | 11121178 |
Bracket | 1 |
| 25 | 11121437 |
Valve | 1 |
| 26 | 15021750 |
Bracket | 1 |
