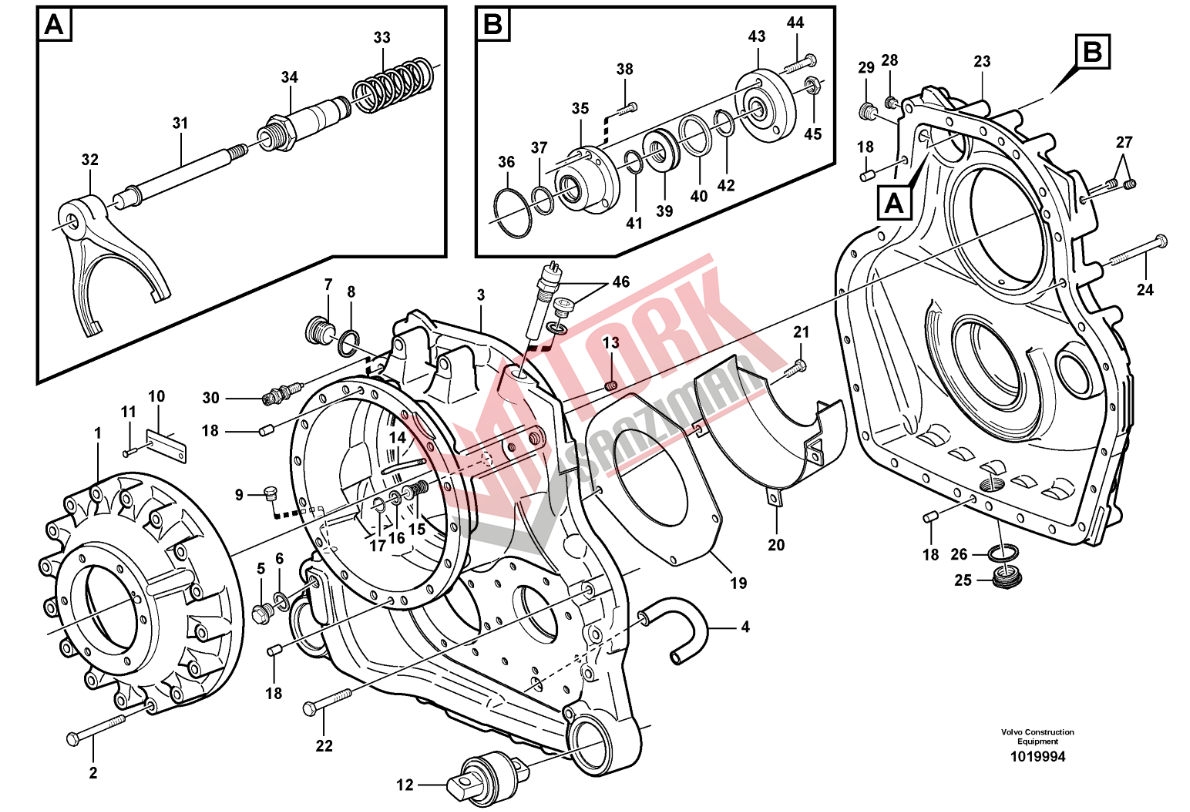

A30D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11144104 |
Housing | 1 |
| 2 | 13970982 |
Hexagon screw | 16 |
| 3 | 11145296 |
Housing | 1 |
| 4 | 11144118 |
•Oil pipe | 1 |
| 5 | 13966145 |
Plug | 1 |
| 6 | 13947627 |
Plane gasket | 1 |
| 7 | 11144220 |
Plug | 1 |
| 8 | |
•Sealing ring | 1 |
| 9 | |
Plug | 1 |
| 10 | |
Part Plate | 1 |
| 11 | |
Screw | 2 |
| 12 | 11043031 |
Bearing | 2 |
| 13 | 990830 |
Plug | 3 |
| 14 | 11144162 |
Tube | 1 |
| 15 | 11716649 (11144169) |
Valve | 1 |
| 16 | 11144126 |
Washer | 1 |
| 17 | 914515 |
Retaining ring | 1 |
| 18 | 11144152 |
Pin | 4 |
| 19 | 15017577 |
Cover plate | 1 |
| 20 | 11419511 (11144107) |
Cover plate | 1 |
| 21 | 13955294 |
Screw | 5 |
| 22 | 970980 |
Hexagon screw | 5 |
| 23 | 11144255 |
Housing | 1 |
| 24 | 13970982 |
Hexagon screw | 22 |
| 25 | 11144220 |
Plug | 1 |
| 26 | 13947630 |
Gasket | 1 |
| 27 | 945065 |
Plug | 3 |
| 28 | 11144181 |
Cap plug | 4 |
| 29 | 11144178 |
Cap plug | 1 |
| 30 | 3197872 |
Sensor | 1 |
| 31 | 11144245 |
Piston rod | 1 |
| 31 | 15029999 (11145293) |
Piston rod | 1 |
| 31 | 15029999 |
Piston rod | 1 |
| 32 | 15163862 (11144246) |
Selector fork | 1 |
| 33 | 11145292 |
Compression spring | 1 |
| 34 | 11144247 |
Sleeve | 1 |
| 35 | 11144248 |
Cylinder | 1 |
| 36 | 11419514 (948975) |
O-ring | 1 |
| 37 | 11144252 |
X-ring | 1 |
| 38 | 20450822 |
Screw | 2 |
| 39 | 11144249 |
Piston | 1 |
| 40 | 11144253 |
X-ring | 1 |
| 41 | 11419513 |
O-ring | 1 |
| 42 | 11144261 |
Snap ring | 1 |
| 43 | 11144250 |
Cover | 1 |
| 11145294 |
Cover | 1 | |
| 44 | 60111880 (13955298) |
Hexagon screw | 3 |
| 45 | 984402 |
Lock nut | 1 |
| 11419510 |
Nut | 1 | |
| 46 | 11039557 |
Induction sensor | 1 |
