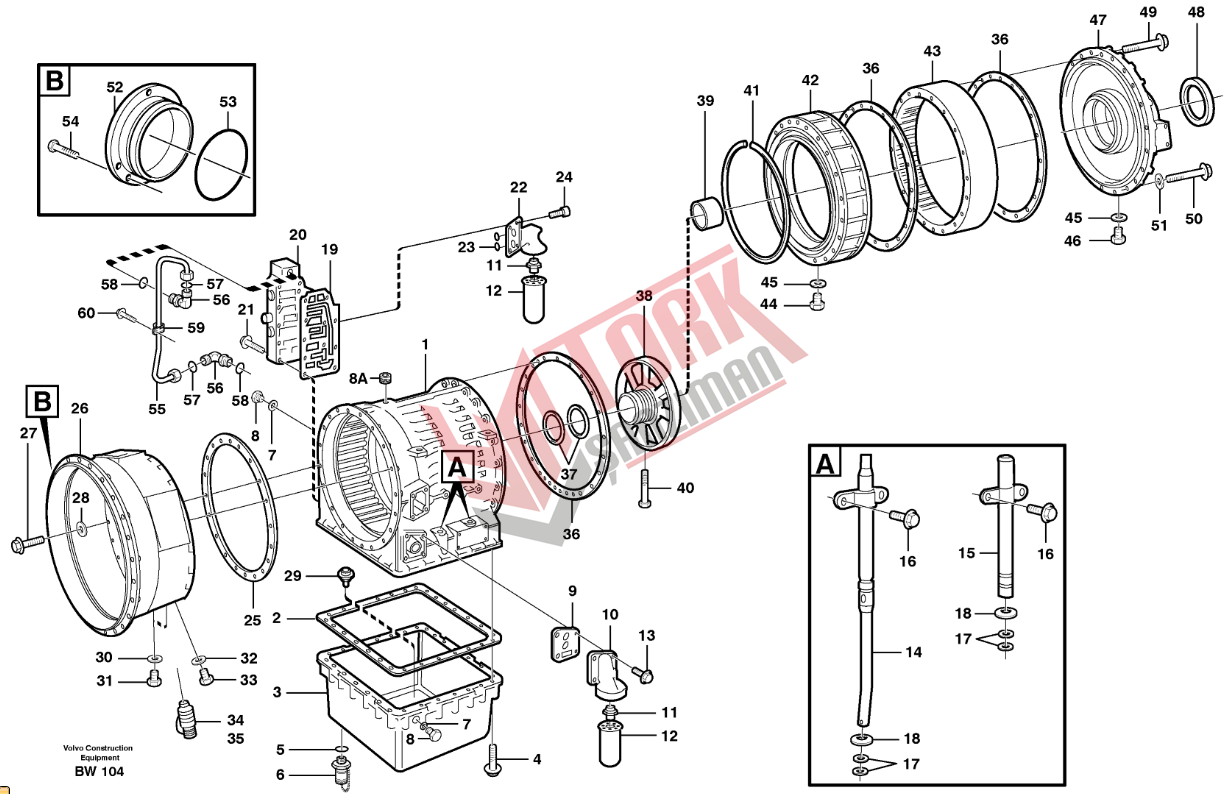

+90 552 671 32 12TRANSMISSION, HYDRAULIC CONTROL > 421/100 Transmission housing 22518, 22545, 22649
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 15174542 (11145115) |
Gearbox housing | 1 |
| 2 | 17224375 |
Gasket | 1 |
| 3 | 17443537 (11038139) |
Oil Pan | 1 |
| 4 | 13965182 |
Screw | 28 |
| 5 | 968565 |
O-ring | 1 |
| 6 | 11114777 |
Valve | 1 |
| 7 | 968562 |
O-ring | 4 |
| 8 | 926370 |
Plug | 4 |
| 8A | 968060 |
Plug | 1 |
| 9 | 11037926 |
Gasket | 1 |
| 10 | 11038157 |
Filter retainer | 1 |
| 11037337 |
•Overflow valve | 1 | |
| 11 | 1656396 |
Nipple | 2 |
| 12 | 11448509 |
Filter cartridge | 2 |
| 13 | 13965181 |
Screw | 2 |
| 946671 |
Flange screw | 2 | |
| 14 | 11038171 |
Tube | 1 |
| 11038802 (11119632) |
Tube | 1 | |
| 15 | 11038169 |
Tube | 1 |
| 16 | 13946173 |
Screw | 4 |
| 17 | 925057 |
O-ring | 4 |
| 18 | 13965857 |
Sealing ring | 2 |
| 19 | 11038099 |
Gasket | 1 |
| 20 | |
Retarder valve | 1 |
| 21 | 13965181 |
Screw | 5 |
| 13965183 |
Flange screw | 6 | |
| 22 | 15117204 (11036868) |
Filter retainer | 1 |
| 23 | 978392 |
O-ring | 2 |
| 24 | 959222 |
Hex. socket screw | 4 |
| 25 | 11419147 (11037919) |
Gasket | 1 |
| 26 | 11145128 (11038270) |
Converter shell | 1 |
| 11145715 |
Converter shell | 1 | |
| 27 | 13970908 |
Hexagon screw | 21 |
| 28 | 11145118 |
Spacer sleeve | 21 |
| 29 | 1656393 |
Magnet | 2 |
| 30 | 958226 |
O-ring | 2 |
| 31 | 926371 |
Plug | 2 |
| 32 | 968562 |
O-ring | 2 |
| 33 | 926370 |
Plug | 2 |
| 34 | 930032 |
Testing nipple | 2 |
| 931216 |
•Back-up ring | 2 | |
| 35 | 931209 |
•O-ring | 2 |
| 36 | 11145992 |
Gasket | 3 |
| 37 | 11037318 |
Piston ring | 2 |
| 38 | 11145312 |
Support | 1 |
| 39 | 11145311 |
•Bushing | 1 |
| 40 | 13965190 |
Screw | 1 |
| 41 | 1650334 |
Lock ring | 1 |
| 42 | 11038032 |
Housing | 1 |
| 43 | 11037379 |
Ring | 1 |
| 44 | 926370 |
Plug | 1 |
| 45 | 968562 |
O-ring | 2 |
| 46 | 926370 |
Plug | 1 |
| 47 | 1656408 |
Cover | 1 |
| 48 | 17216918 (11145592) |
Sealing ring | 1 |
| 49 | 13970987 |
Hexagon screw | 23 |
| 50 | 973259 |
Hexagon screw | 2 |
| 51 | 13955897 |
Washer | 25 |
| 52 | 11037917 |
Plug | 1 |
| 53 | 925094 |
O-ring | 1 |
| 54 | 13946544 |
Screw | 3 |
| 55 | 11038037 |
Pipe | 1 |
| 56 | 11038039 |
Elbow nipple | 2 |
| 57 | 990737 (4880492) |
•O-ring | 1 |
| 58 | 967749 |
•O-ring | 1 |
| 59 | 190635 (942287) |
Clamp | 1 |
| 60 | 947107 |
Flange screw | 1 |
