A30D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

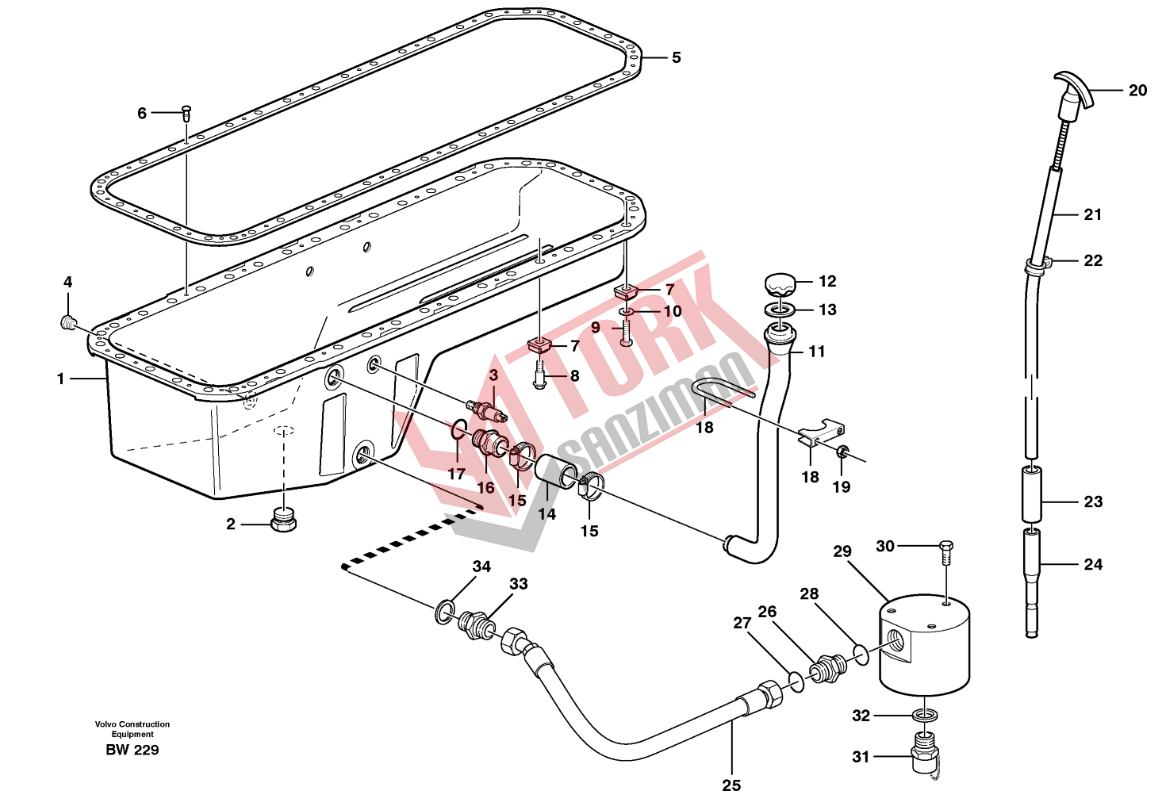

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11162611 |
Oil pan | 1 |
| 2 | 13960638 |
Plug | 1 |
| 3 | 15048183 (11144494) |
Oil level sensor | 1 |
| 11713718 |
•O-ring | 1 | |
| 4 | 479956 |
Plug | 1 |
| 5 | 479486 |
Gasket | 1 |
| 6 | 13943353 |
Rivet | 28 |
| 7 | 420991 |
Rubber cushion | 41 |
| 8 | 479421 |
Flange screw | 38 |
| 9 | 940161 |
Hexagon screw | 3 |
| 10 | 13960141 (976944) |
Washer | 3 |
| 11 | 11162563 |
Oil filler pipe | 1 |
| 12 | 3547599 |
Oil filler cap | 1 |
| 13 | 1275379 |
•Gasket | 1 |
| 14 | 11162126 |
Hose | 1 |
| 15 | 943477 |
Hose clamp | 2 |
| 16 | 11162582 |
Nipple | 1 |
| 17 | 925064 |
O-ring | 1 |
| 18 | 968129 |
Clamp | 2 |
| 19 | 955782 |
•Hexagon nut | 2 |
| 20 | 11162506 |
Dipstick | 1 |
| 21 | 11031470 |
Oil pipe | 1 |
| 22 | 13949747 |
Clamp | 1 |
| 23 | 8149606 |
Rubber hose | 1 |
| 24 | 479328 |
Tube | 1 |
| 25 | 11113583 |
Hose assembly | |
| 26 | 13933906 |
Nipple | |
| 27 | 990740 (981289) |
•O-ring | |
| 28 | 14211859 |
•Sealing ring | |
| 29 | 11115336 |
Block | |
| 30 | 13946173 |
Screw | |
| 31 | 11054692 |
Valve | |
| 32 | 949329 |
Gasket | |
| 33 | 11113569 |
Nipple | |
| 11707464 |
•O-ring | ||
| 34 | 13947630 |
Gasket | - |
