A30D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

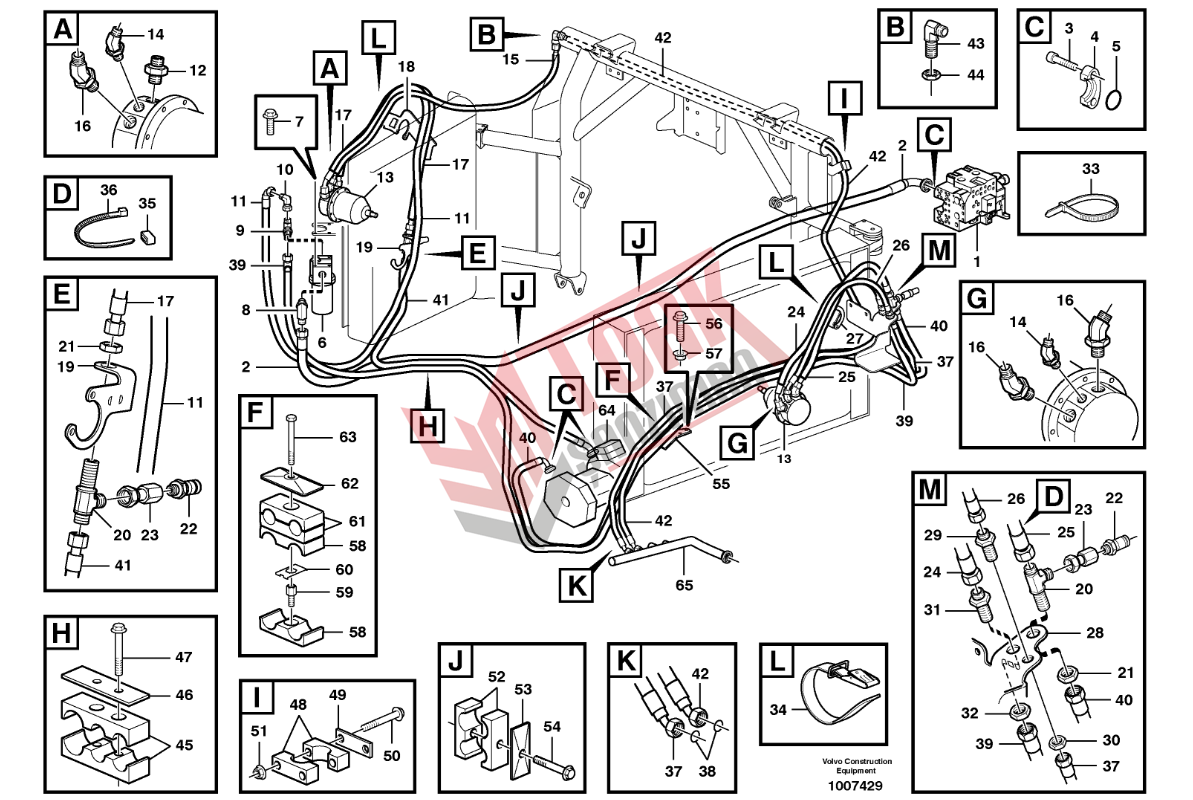

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Valve block | |
| 2 | 11120474 |
Hose assembly | 1 |
| 3 | 959239 |
Hex. socket screw | 12 |
| 4 | 11015454 |
Flange half | 6 |
| 5 | 990742 (942985) |
O-ring | 3 |
| 6 | |
Filter | 1 |
| 7 | 13946544 |
Screw | 4 |
| 8 | 13933864 |
Elbow nipple | 1 |
| 990740 (981289) |
•O-ring | 1 | |
| 993323 (932042) |
•O-ring | 1 | |
| 9 | 936557 |
Nipple | 1 |
| 990738 (4880493) |
•O-ring | 2 | |
| 993323 (932042) |
•O-ring | 1 | |
| 10 | 13933872 |
Elbow nipple | 1 |
| 990738 (4880493) |
•O-ring | 1 | |
| 11 | 13933972 |
Hose assembly | 1 |
| 12 | 13933853 |
Nipple | 1 |
| 990738 (4880493) |
•O-ring | 1 | |
| 14211863 |
•Sealing ring | 1 | |
| 13 | |
Hydraulic motor | 2 |
| 14 | 936352 |
Nipple | 2 |
| 990737 (4880492) |
•O-ring | 2 | |
| 15 | 936501 |
Hose assembly | 1 |
| 16 | 13933903 |
Elbow nipple | 3 |
| 990738 (4880493) |
•O-ring | 3 | |
| 967750 |
•O-ring | 3 | |
| 17 | 935512 |
Hose assembly | 1 |
| 18 | 11191081 |
Bracket | 1 |
| 19 | 11191082 |
Bracket | 1 |
| 20 | 935816 |
T-nipple | 1 |
| 990738 (4880493) |
•O-ring | 1 | |
| 21 | 13933867 |
Lock nut | 1 |
| 22 | 935026 |
Test nipple | 2 |
| 23 | 936439 (13933686) |
Testing nipple | 2 |
| 955990 |
•O-ring | 2 | |
| 24 | 935511 |
Hose assembly | 1 |
| 25 | 935684 |
Hose assembly | 1 |
| 26 | 936492 |
Hose assembly | 1 |
| 27 | 11191033 |
Bracket | 1 |
| 28 | 11191141 |
Bracket | 1 |
| 29 | 935425 |
Nipple | 1 |
| 990737 (4880492) |
•O-ring | 2 | |
| 30 | 935429 |
Lock nut | 1 |
| 31 | 13933922 |
Nipple | 1 |
| 990738 (4880493) |
•O-ring | 2 | |
| 32 | 13933867 |
Lock nut | 1 |
| 33 | 4881440 |
Cable tie | REQ |
| 34 | 11104606 |
Retaining strap | REQ |
| 35 | 11120675 |
Marking sleeve | 1 |
| 36 | 4821292 |
Cable tie | 1 |
| 37 | 936528 |
Hose assembly | 1 |
| 38 | 990737 (4880492) |
O-ring | 2 |
| 39 | 936574 |
Hose assembly | 1 |
| 40 | 935793 |
Hose assembly | 1 |
| 41 | 936530 |
Hose assembly | 1 |
| 42 | 11191523 |
Hose assembly | 1 |
| 43 | 935427 |
Elbow nipple | 1 |
| 990737 (4880492) |
•O-ring | 2 | |
| 44 | 935429 |
Lock nut | 1 |
| 45 | 11118524 |
Clamp | 1 |
| 46 | 11113092 |
Cover plate | 1 |
| 47 | 13965179 |
Screw | 2 |
| 48 | 11191463 |
Clamp | 1 |
| 49 | 11003047 |
Cover plate | 1 |
| 50 | 13965177 |
Screw | 2 |
| 51 | 13949278 |
Flange lock nut | 2 |
| 52 | 11191296 |
Clamp | 4 |
| 53 | 4880585 |
Cover plate | 2 |
| 54 | 13965179 |
Screw | 2 |
| 55 | 11191428 |
Bracket | 1 |
| 56 | 946671 |
Flange screw | 2 |
| 57 | 948645 |
Flange lock nut | 2 |
| 58 | 11191460 |
Clamp | 1 |
| 59 | 11113917 |
Screw | 1 |
| 60 | 11113915 |
Lock washer | 1 |
| 61 | 11191461 |
Clamp | 1 |
| 62 | 4880579 |
Cover plate | 1 |
| 63 | 946470 |
Flange screw | 1 |
| 64 | |
Hydraulic Pump | |
| 65 | |
Return pipe | - |
