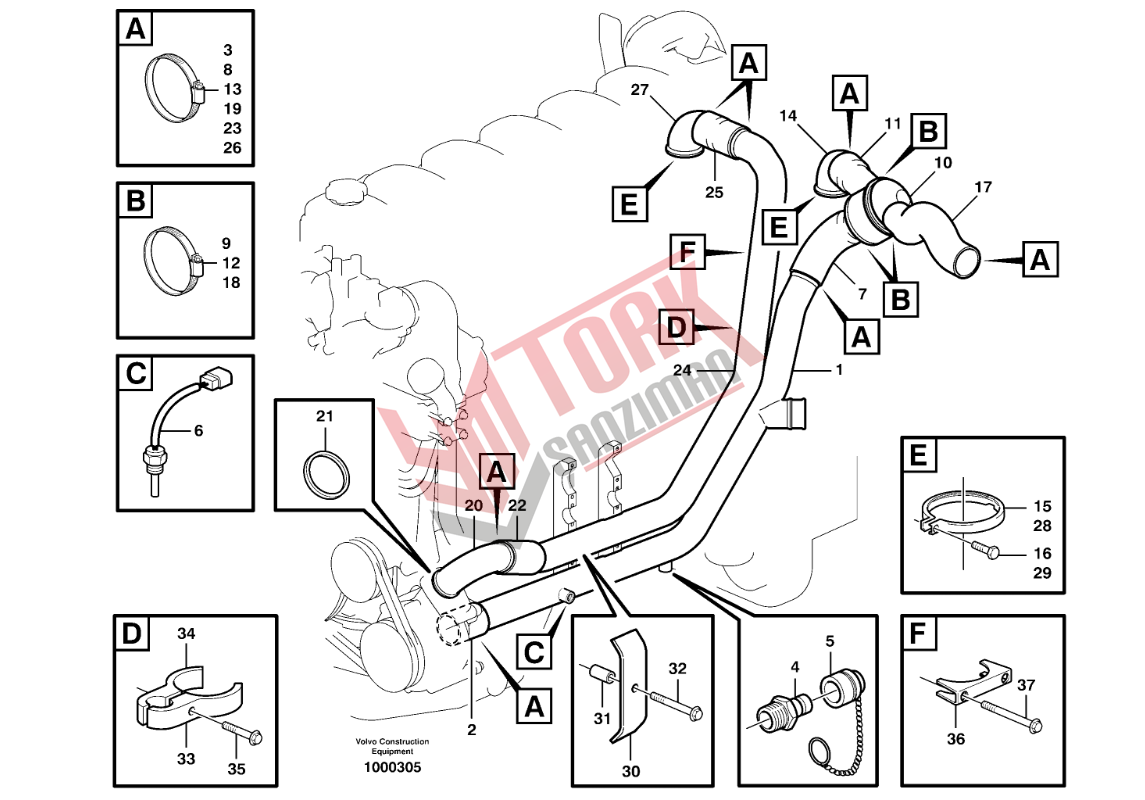

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11117082 |
Pipe | 1 |
| 2 | 943372 |
Hose | REQ |
| 3 | 11059298 |
Hose clamp | 2 |
| 4 | 13946121 |
Nipple | 4 |
| 5 | 11194108 (4881340) |
Protecting sleeve | 1 |
| 6 | 11039193 |
Temperature sensor | 1 |
| 7 | 11113647 |
Radiator hose | 1 |
| 8 | 11059298 |
Hose clamp | 1 |
| 9 | 11059297 |
Hose clamp | 1 |
| 10 | 11062225 |
Thermostat | 1 |
| 11 | 11063800 |
Radiator hose | 1 |
| 12 | 11059297 |
Hose clamp | 1 |
| 13 | 11059298 |
Hose clamp | 1 |
| 14 | 16828476 (11033655) |
Connecting pipe | 1 |
| 4871469 |
•Air vent valve | 1 | |
| 11034256 |
•Protecting cap | 1 | |
| 15 | 1542778 |
V-clamp | 1 |
| 16 | 13948356 |
Flange screw | 1 |
| 17 | 11117073 |
Radiator hose | 1 |
| 18 | 11059297 |
Hose clamp | 1 |
| 19 | 11059298 |
Hose clamp | 1 |
| 20 | 11117067 |
Pipe | 1 |
| 21 | 11030312 |
Sealing ring | 1 |
| 22 | 943372 |
Hose | REQ |
| 23 | 11059298 |
Hose clamp | 2 |
| 24 | 11117086 |
Pipe | 1 |
| 25 | 11112379 |
Radiator hose | 1 |
| 26 | 11059298 |
Hose clamp | 2 |
| 27 | 16828476 (11033655) |
Connecting pipe | 1 |
| 4871469 |
•Air vent valve | 1 | |
| 11034256 |
•Protecting cap | 1 | |
| 28 | 1542778 |
V-clamp | 1 |
| 29 | 13948356 |
Flange screw | 1 |
| 30 | 11112146 |
Cap | 2 |
| 31 | 11062179 |
Spacer ring | 2 |
| 32 | 13965180 |
Screw | 2 |
| 33 | |
Clamp | 1 |
| 34 | |
Clamp | 1 |
| 35 | 13947760 |
Screw | 1 |
| 36 | 11115150 |
Clamp | 1 |
| 37 | 13965180 |
Screw | 2 |
