A30D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

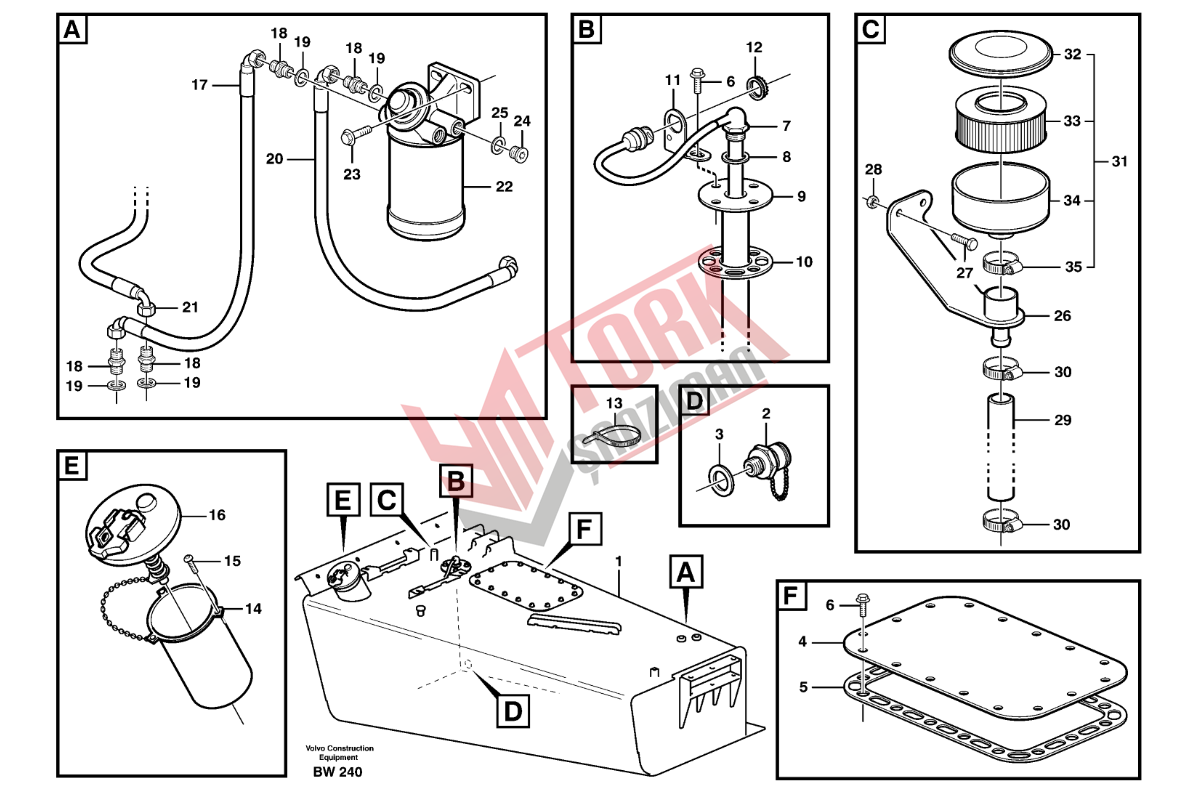

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11121161 |
Fuel tank | 1 |
| 2 | 11054692 |
•Valve | 1 |
| 3 | 949329 |
•Gasket | 1 |
| 4 | 11113840 |
•Hatch | 1 |
| 5 | 11196531 (11113378) |
•Gasket | 1 |
| 6 | 13946173 |
•Screw | 20 |
| 7 | 11113316 |
•Hexagon screw | 1 |
| 8 | 948885 |
•Plane gasket | 1 |
| 9 | 11118191 |
•Anchorage | 1 |
| 10 | 11113379 |
•Gasket | 1 |
| 11 | 3988328 |
•Bracket | 1 |
| 12 | 3963413 |
•Ring | 1 |
| 13 | 14016673 (4881438) |
•Strip clamp | 2 |
| 14 | 11118550 |
•Strainer | 1 |
| 15 | 972264 |
•Six point socket screw | 3 |
| 16 | 11118857 |
•Filler cap | 1 |
| 11988188 |
••Gasket | 1 | |
| 17 | 11117525 |
Fuel hose | 1 |
| 18 | 14213266 |
Fitting | 4 |
| 19 | 948883 |
Gasket | 4 |
| 20 | 11117529 (11117526) |
Fuel hose | 1 |
| 21 | 11120305 (11117528) |
Fuel pipe | 1 |
| 22 | 11110348 |
Water separator | 1 |
| 11708581 |
•Sensor | 1 | |
| 23 | 946472 |
Flange screw | 2 |
| 24 | 13966143 |
Plug | 2 |
| 25 | 948883 |
Gasket | 2 |
| 26 | |
Bracket | 1 |
| 27 | 13945444 |
Screw | 2 |
| 28 | 948645 |
Flange lock nut | 2 |
| 29 | 983136 |
Hose | REQ |
| 30 | 13943474 |
Hose clamp | 2 |
| 31 | 11113355 |
Air cleaner | 1 |
| 32 | |
•Cover | 1 |
| 33 | 11707077 |
•Filter insert | 1 |
| 34 | |
•Housing | 1 |
| 35 | 943477 |
•Hose clamp | 1 |
