A30D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

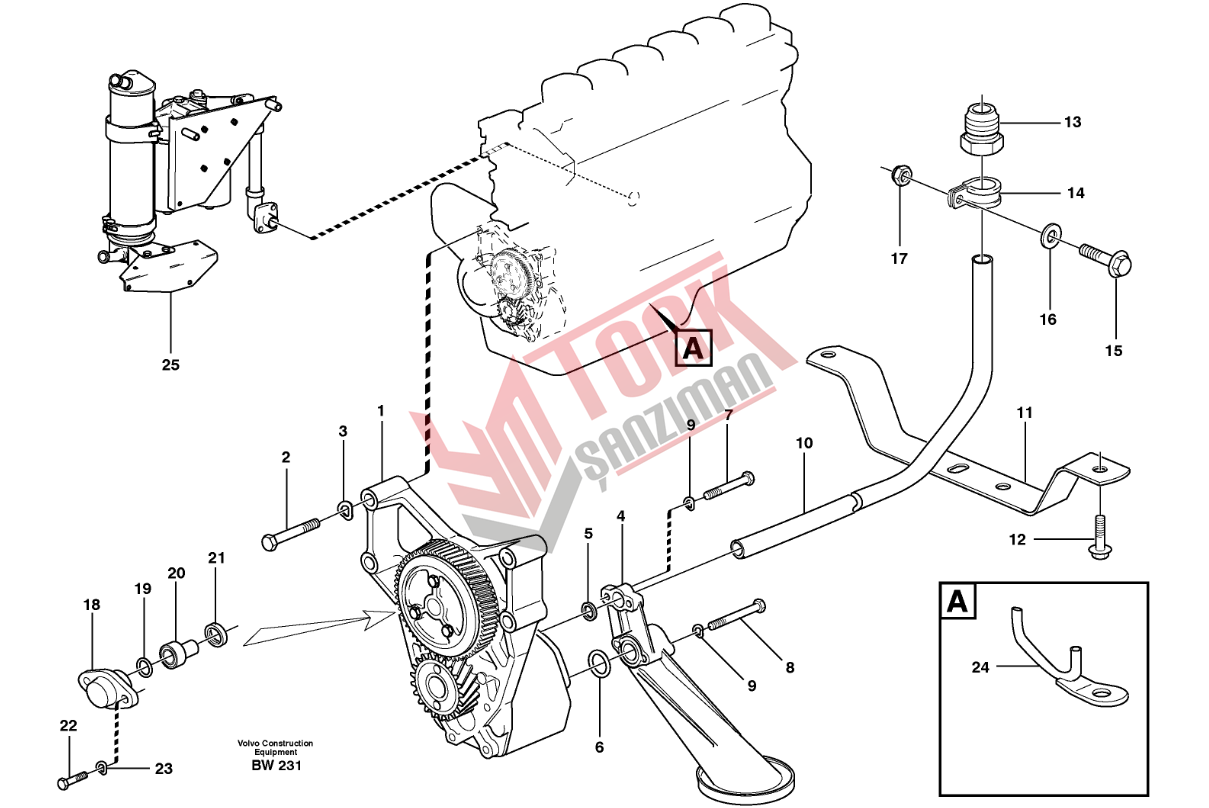

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Oil pump | 1 |
| 2 | 955538 |
Hexagon screw | 4 |
| 3 | 13942336 |
Spring washer | 4 |
| 4 | 479325 |
Oil strainer | 1 |
| 5 | 470263 |
Sealing ring | 1 |
| 6 | 949659 |
O-ring | 1 |
| 7 | 192546 |
Screw | 2 |
| 8 | 959795 |
Hexagon screw | 2 |
| 9 | 13941907 |
Washer | 4 |
| 10 | 8125392 |
Oil feed pipe | 1 |
| 11 | 470918 |
Bracket | 1 |
| 12 | 942402 |
Flange screw | 2 |
| 13 | 466908 |
Fitting | 1 |
| 14 | 11000239 |
Clamp | 1 |
| 15 | 942402 |
Flange screw | 1 |
| 16 | 13955894 |
Washer | 1 |
| 17 | 945467 |
Lock nut | 1 |
| 18 | 471752 |
Cover | 1 |
| 19 | 949658 |
O-ring | 1 |
| 20 | 471707 |
Reduction valve | 1 |
| 21 | 469846 |
Sealing ring | 1 |
| 22 | 940100 |
Hexagon screw | 2 |
| 23 | 13941906 |
Washer | 2 |
| 24 | 864374 |
Piston cooling jet | 6 |
| 25 | |
Oil cooler | 1 |
