A30D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

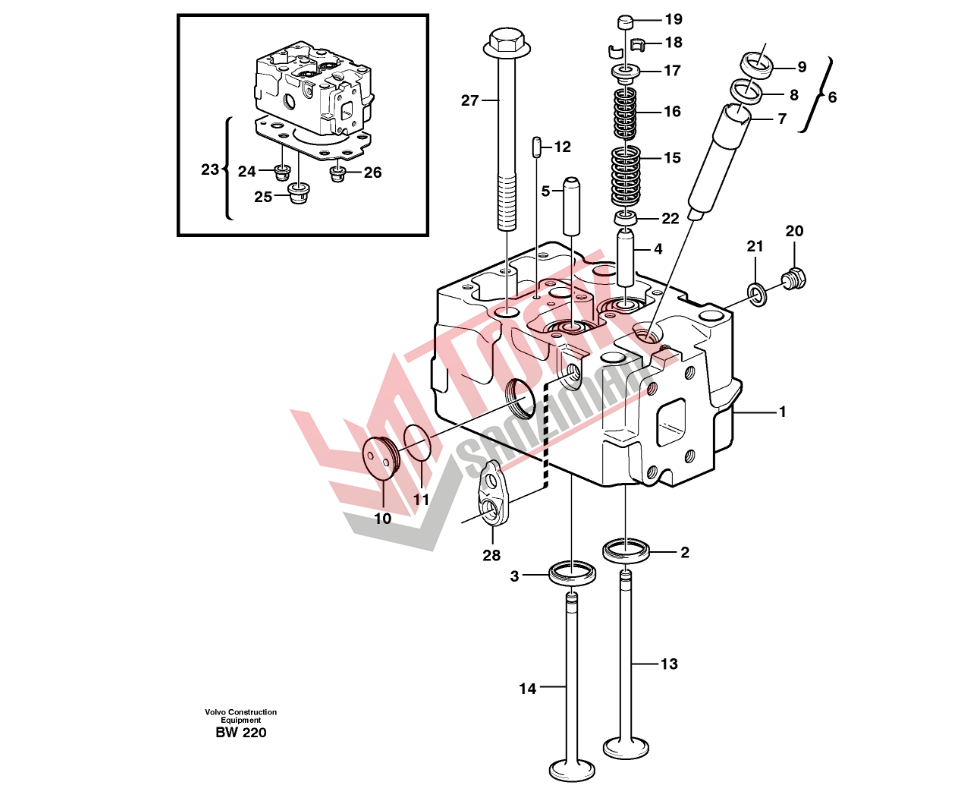

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 8194497 |
Cylinder head | 1 | |
| |
•Cylinder head | 1 | |
| 1 | |
••Cylinder head | 1 |
| 2 | 467474 |
••Valve seat | 6 |
| 467590 |
••Valve seat | 6 | |
| 3 | 8194296 |
••Valve seat | 6 |
| 8194297 |
••Valve seat | 6 | |
| 4 | 11129092 |
••Valve guide | 6 |
| 5 | 11129092 |
••Valve guide | 6 |
| 6 | 270946 |
••Repair kit | 6 |
| 7 | 479163 |
•••Sleeve | 6 |
| 8 | 466405 |
•••Sealing ring | 6 |
| 9 | 466420 |
•••Ring | 6 |
| 10 | 8194467 |
••Plug | 12 |
| 11 | 13949762 |
••O-ring | 12 |
| 12 | 14025455 |
••Cylinder Pin | 12 |
| 13 | 8194223 |
•Inlet valve | 6 |
| 14 | 8194224 |
•Exhaust valve | 6 |
| 15 | 467334 |
•Valve spring | 12 |
| 16 | 467335 |
•Valve spring | 12 |
| 17 | 467506 |
•Washer | 12 |
| 18 | 468305 |
•Valve sleeve | 24 |
| 19 | 478074 |
•Valve cap | 12 |
| 20 | 941876 |
•Plug | 12 |
| 21 | 7018666 |
•Gasket | 12 |
| 22 | 864860 |
Valve seal | 12 |
| 23 | 270789 |
Gasket kit | 6 |
| 24 | 422413 |
•Sealing ring | 6 |
| 25 | 422414 |
•Sealing ring | 12 |
| 26 | 422415 |
•Sealing ring | 12 |
| 27 | 422086 |
Screw | 24 |
| 28 | 479260 |
Gasket | 6 |
