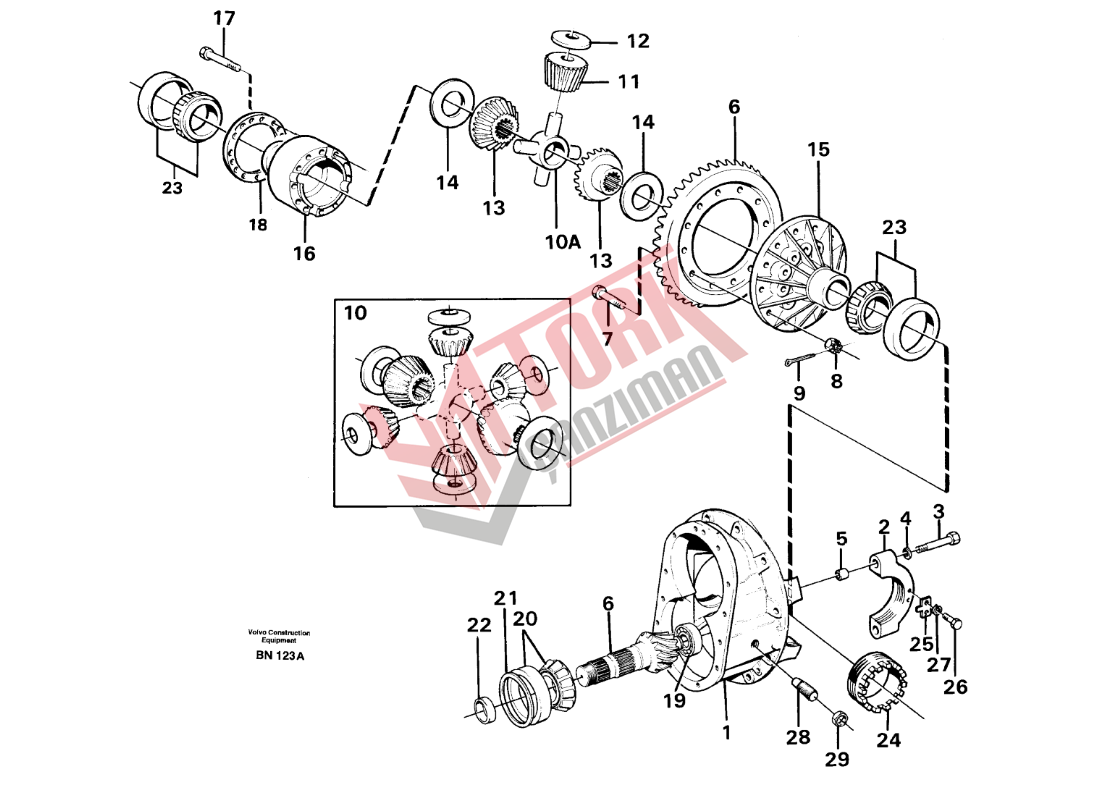

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| |
Final gear | 1 | |
| 1 | 11034022 |
•Diff Carr Hsg | 1 |
| 2 | |
••Cap | 2 |
| 3 | 1524242 |
••Screw | 4 |
| 4 | 13946304 |
••Washer | 4 |
| 5 | 310719 |
••Bushing | 4 |
| 6 | 4717767 |
•Drive gear set | 1 |
| 7 | 1673306 |
•Screw | 16 |
| 8 | 191055 |
•Nut | 16 |
| 9 | 907847 |
•Split pin | 16 |
| 3094522 |
•Differential | 1 | |
| 10 | 3094269 |
••Drive gear set | 1 |
| 10A | 1524395 |
•••Spider | 1 |
| 11 | 1524587 |
•••Differential side gear | 4 |
| 12 | 1524398 |
•••Thrust Washer | 4 |
| 13 | 17415136 |
•••Differential side gear | 2 |
| 14 | 1524589 |
•••Thrust washer | 2 |
| 15 | 1524396 |
••Differential housing | 1 |
| 16 | 1524397 |
••Differential housing | 1 |
| 17 | 1524399 |
••Flange screw | 12 |
| 941912 |
••Spring washer | 12 | |
| 18 | 11992043 |
•Lock plate | 1 |
| 19 | 11102997 |
•Roller bearing | 1 |
| 20 | 11000274 |
•Roller bearing | 1 |
| 21 | 941291 |
•Shim | 1 |
| 948599 |
•Shim | 1 | |
| 941292 |
•Shim | 1 | |
| 941293 |
•Shim | 1 | |
| 22 | 1522082 |
•Spacer sleeve | REQ |
| 1522083 |
•Spacer sleeve | REQ | |
| 11987498 |
•Spacer sleeve | REQ | |
| 23 | 183704 |
•Roller bearing | 2 |
| 24 | 384044 |
•Setting nut | 1 |
| 1522136 |
•Setting nut | 1 | |
| 25 | 1522426 |
•Lock washer | 2 |
| 26 | 13955294 |
•Screw | 4 |
| 27 | 13941907 |
•Washer | 4 |
| 28 | 1522808 |
•Screw | 1 |
| 29 | 948532 |
•Hexagon nut | 1 |
