A25C
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

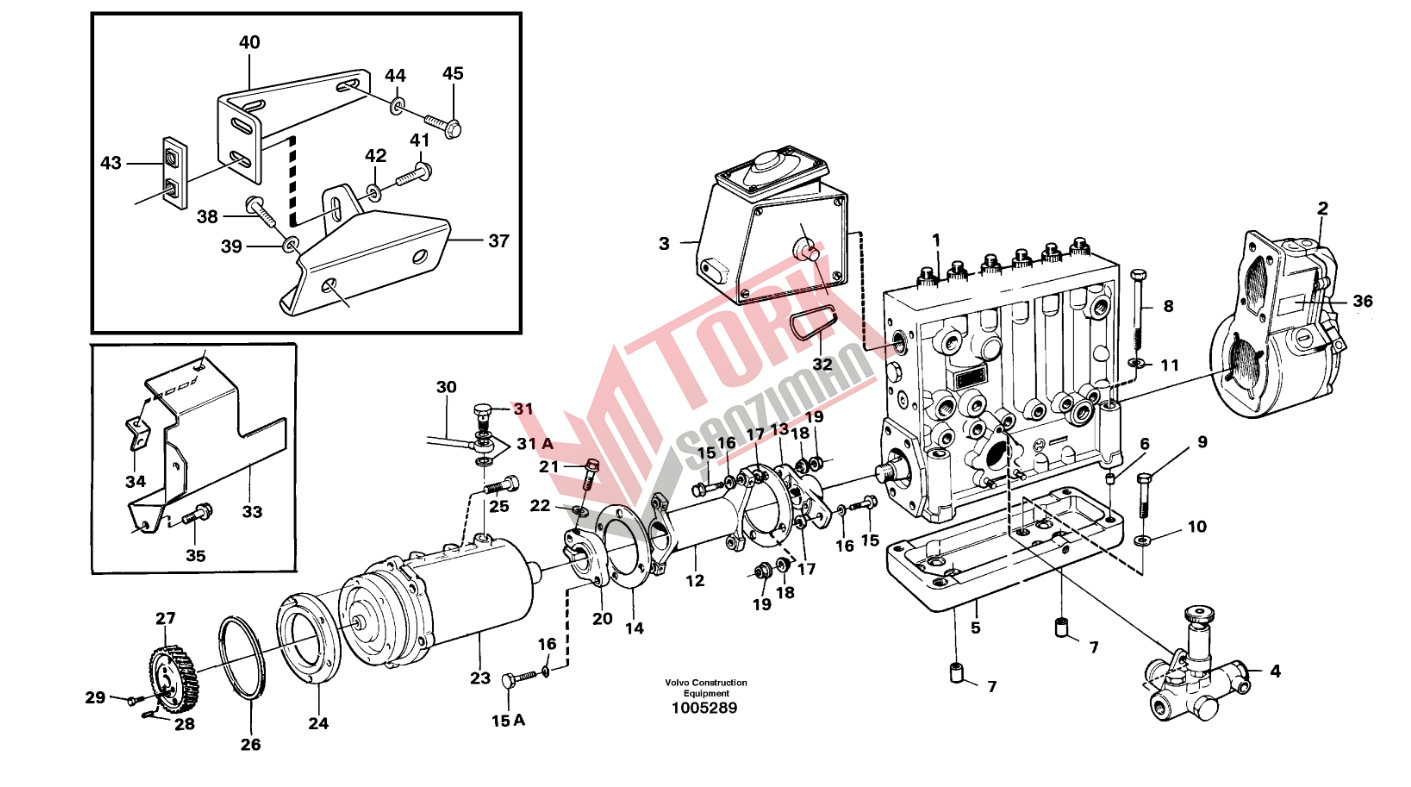

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 11030951 |
Injection pump | 1 | |
| 1 | |
•Injcection pump | 1 |
| 2 | |
•Centrifugal regulator | 1 |
| 3 | |
••Smoke limiter | 1 |
| 4 | |
•Feed pump | 1 |
| 5 | 477963 |
Bracket | 1 |
| 6 | 417588 |
Guide sleeve | 3 |
| 7 | 417588 |
Guide sleeve | 2 |
| 8 | 959250 |
Hex. socket screw | 4 |
| 9 | 13965185 |
Screw | 4 |
| 10 | 941908 |
Spring washer | 4 |
| 11 | 190509 |
Washer | 4 |
| 12 | 477809 |
Intmd Section | 1 |
| 13 | 478358 |
Companion flange | 1 |
| 14 | 479458 |
Companion disc | 8 |
| 15 | 13965185 (946470) |
Screw | 4 |
| 13965223 |
Screw | 2 | |
| 15A | 13965220 |
Screw | 2 |
| 16 | 976945 |
Washer | 4 |
| 17 | 479399 |
Washer | 4 |
| 18 | 478897 (471311) |
Sleeve | 8 |
| 19 | 13971095 (971095) |
Flange nut | 8 |
| 20 | 1556186 |
Companion flange | 1 |
| 21 | 1556285 |
Screw | 1 |
| 22 | 976945 |
Washer | 1 |
| 23 | |
Inj timing dvc | 1 |
| 24 | 477409 |
•Thrust washer | 1 |
| 25 | 13948336 |
Flange screw | 5 |
| 26 | 423123 |
Sealing ring | 1 |
| 27 | 479985 (470764) |
Gear | 1 |
| 28 | 950586 |
Pin | 1 |
| 29 | 975199 |
Flange screw | 6 |
| 30 | 477979 (477988) |
Oil feed pipe | 1 |
| 31 | 968178 |
Hollow screw | 1 |
| 31A | 13947282 |
Gasket | 2 |
| 32 | 422525 |
Towing eye | 1 |
| 33 | 11050937 |
Protecting plate | 1 |
| 34 | 11030576 |
Attachment | 1 |
| 35 | 946440 |
Flange screw | 3 |
| 36 | |
Decal | 1 |
| 37 | 477879 |
Attaching bracket | 1 |
| 3978711 |
Anchorage | 1 | |
| 38 | 477589 |
Screw | 2 |
| 39 | 961411 |
Disc spring | 2 |
| 40 | 477878 |
Bracket | 1 |
| 3978709 |
Bracket | 1 | |
| 41 | 13968232 |
Flange screw | 2 |
| 13949853 |
Flange screw | 2 | |
| 42 | 11117464 (13960141) |
Plain washer | 2 |
| 43 | 477831 |
Nut plate | 1 |
| 44 | 13948871 |
Spacer washer | 2 |
| 45 | 13968232 |
Flange screw | 2 |
