A25C

Hemen bizi arayın yardımcı olalım

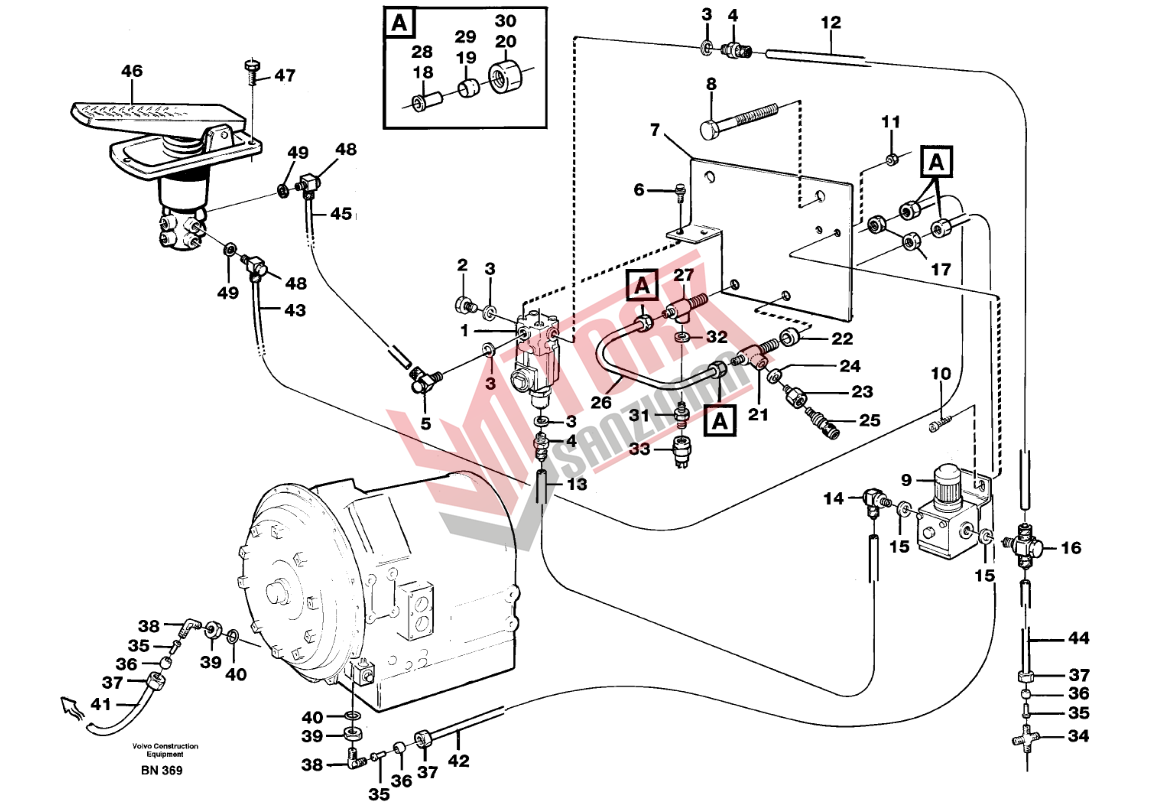

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1	8143021	Solenoid valve	1
2	960629	Plug	1
3	13947282	Gasket	6
4	11062357	Fitting	2
5	6626873	Fitting	1
6	971319	Six point socket screw	2
7		Bracket	1
8	13965181	Screw	2
9	11063006	Pressure regulator	1
10	971304	Six point socket screw	2
11	13965483	Nut	2
12	13945460	Plastic pipe	REQ
13	13945460	Plastic pipe	REQ
14	11053891	Banjo nipple	1
15	907133	Gasket	2
16	11062093	Fitting	1
17	192272	Lock nut	2
18	944717	Sleeve	2
19	954364	Ferrule	2
20	954356	Fitting nut	2
21	13948774	Nipple	1
22	930444 (13930444)	Spacer ring	2
23	1668067	Nipple	1
24	13947281	Gasket	1
25	930032	Testing nipple	1
	931216	•Back-up ring	1
	931209	•O-ring	1
26	13945460	Plastic pipe	REQ
27	13948774	Nipple	1
28	944717	Sleeve	2
29	954364	Ferrule	2
30	954356	Fitting nut	2
31	11062485	Nipple	1
32	13947281	Gasket	1
33	3092454 (1571540)	Contact	1
34	946940	Nipple	1
35	944717	Sleeve	3
36	954364	Ferrule	3
37	954356	Fitting nut	3
38	945916	Elbow nipple	2
39	945893	Hexagon nut	2
40	1587176	O-ring	2
41	13945460	Plastic pipe	REQ
42	13945460	Plastic pipe	REQ
43	13945460	Plastic pipe	REQ
44	13945460	Plastic pipe	REQ
45	13945460	Plastic pipe	REQ
46		Retarder pedal	1
47	971322	Six point socket screw	3
48	6626877	Fitting	2
49	13947281	Gasket	2
