A25C
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

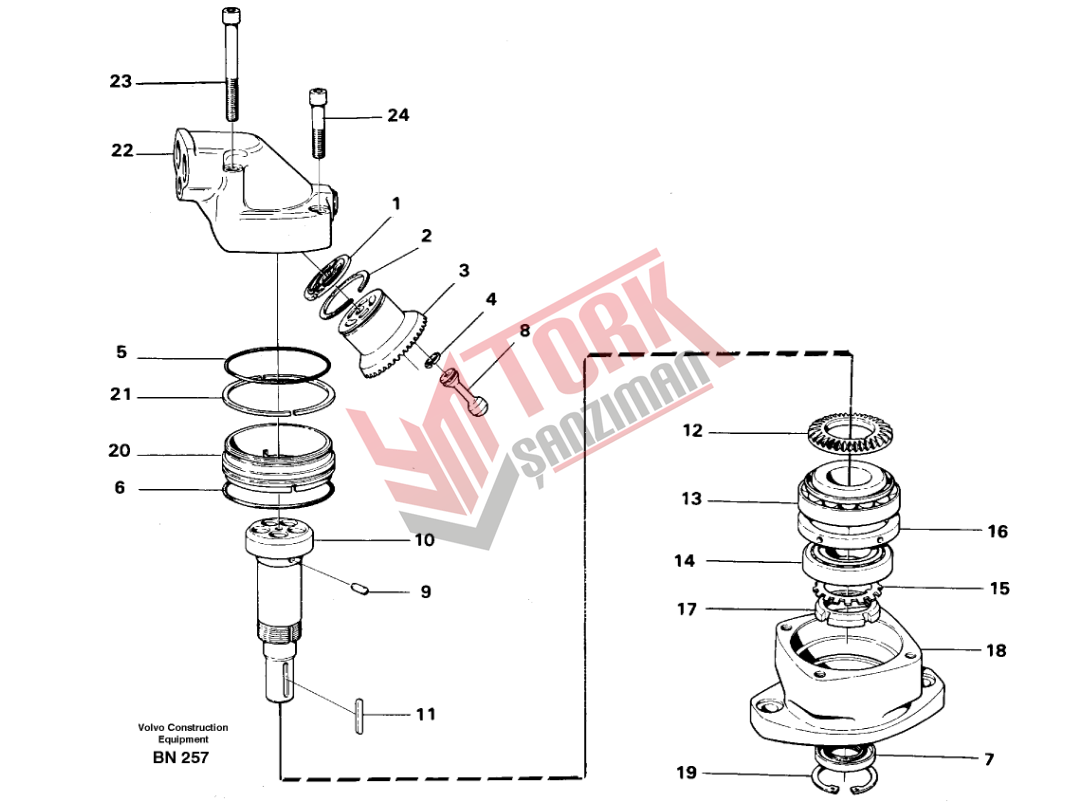

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 3703460 |
Fan motor | 1 | |
| 1 | 3703439 |
•Disc | 1 |
| 2 | 11994546 |
•Attaching ring | 1 |
| 3 | 3702959 |
•Cylinder drum | 1 |
| 4 | 7072517 |
•Piston ring | 5 |
| 5 | 925257 |
•O-ring | 1 |
| 6 | 925258 |
•O-ring | 1 |
| 7 | 117851 |
•Sealing ring | 1 |
| 8 | 3708658 (7072970) |
•Piston | 5 |
| 9 | |
•Cylindrical pin | 1 |
| 10 | |
•Shaft | 1 |
| 11 | 909305 |
•Flat key | 1 |
| 12 | |
•Ring gear | 1 |
| 13 | 7011096 |
•Roller bearing | 1 |
| 14 | 7011043 |
•Ball bearing | 1 |
| 15 | 907026 |
•Lock washer | 1 |
| 16 | |
•Spacer | 1 |
| 17 | 906636 |
•Round nut | 1 |
| 18 | |
•Housing | 1 |
| 19 | 914529 |
•Retaining ring | 1 |
| 20 | |
•Guide sleeve | 1 |
| 21 | |
•Shim | REQ |
| 22 | 3703438 |
•Housing | 1 |
| 23 | |
•Screw | 2 |
| 24 | |
•Screw | 2 |
