A25C
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

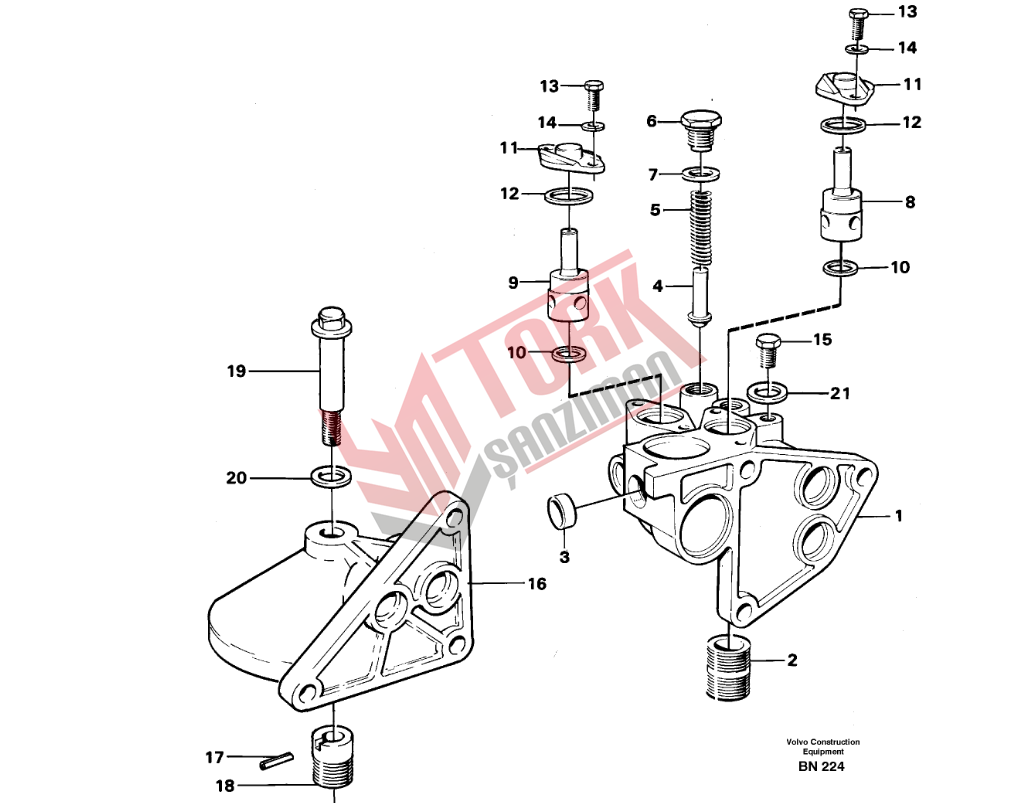

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 11030507 |
Housing | 1 | |
| 1 | |
•Housing | 1 |
| 2 | 4771600 |
••Nipple | 1 |
| 3 | 13948811 |
••Cap plug | 1 |
| 4 | 471085 |
•Valve cone | 1 |
| 5 | 466653 |
•Compression spring | 1 |
| 6 | 471598 |
•Plug | 1 |
| 7 | 13947627 |
•Plane gasket | 1 |
| 8 | 471706 |
•Reduction valve | 1 |
| 469332 |
••Compression spring | 1 | |
| 9 | 471646 |
•Piston cooling valve | 1 |
| 471775 |
••Compression spring | 1 | |
| 10 | 469846 |
•Sealing ring | 2 |
| 11 | 471648 |
•Cover | 2 |
| 12 | 949659 |
•O-ring | 2 |
| 13 | 13955272 |
•Screw | 4 |
| 14 | 955892 |
•Plain washer | 4 |
| 15 | 479979 |
•Plug | 1 |
| 16 | 11030503 |
Housing | 1 |
| 17 | 951974 |
•Spring pin | 1 |
| 18 | 11031514 |
Nipple | 1 |
| 19 | 471855 |
Screw | 1 |
| 20 | 471856 |
Sealing ring | 1 |
| 21 | 13947622 |
Plane gasket | 1 |
