WHEEL LOADER VOLVO L90G
BASIC MACHINE
PROD NO 33007, S/N 3013 - Sweden
PROD NO 33007, S/N 617001 - USA
CAB
PROD NO 11294045
TRANSMISSION
PROD NO 22579, HTE125
DRIVING AXLE
PROD NO 56008, AWB 25, front
PROD NO 56011, AWB 20, rear
PROD NO 56010, AWB 20, rear, Limited slip Diff (LSD)
LOADING UNIT
PROD NO 33034
ENGINE
PART NO. 15165678, Type D6H, EU
PART NO. 15083691, Type D6H, US

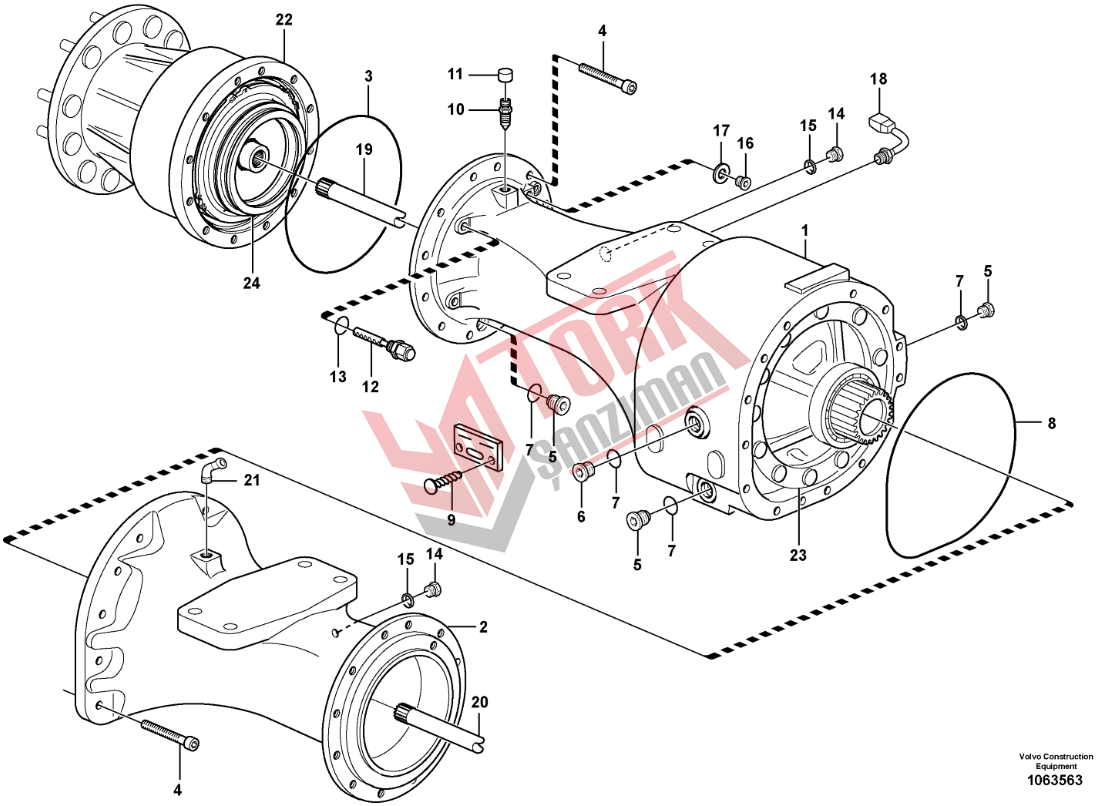

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 56008 |
Planet shaft | 1 | |
| 1 | 17201304 (15024786) |
•Axle Casing | 1 |
| 2 | 17425840 (15143170) |
•Axle Casing | 1 |
| 3 | 11103303 |
•O-ring | 2 |
| 4 | 949544 |
•Hex. socket screw | 17 |
| 5 | 11102187 |
•Magnetic plug | 4 |
| 6 | 11034156 |
•Plug | 1 |
| 7 | 958228 |
•O-ring | 5 |
| 8 | 11103303 |
•O-ring | 1 |
| 9 | 950891 |
•Drive screw | 2 |
| 10 | 4871469 |
•Air vent valve | 2 |
| 11 | 11034256 |
••Protecting cap | 2 |
| 12 | 11102446 |
•Wear Indicator | 2 |
| 13 | 976970 |
••O-ring | 2 |
| 14 | 13960632 |
•Plug | 2 |
| 15 | 13947624 |
•Plane gasket | 2 |
| 16 | 960630 |
•Plug | 3 |
| 17 | 13969011 |
•Gasket | 3 |
| 18 | 15153124 |
•Temperature sensor | 1 |
| 19 | 11168108 |
•Drive shaft | 1 |
| 20 | 11168136 |
•Axle shaft | 1 |
| 21 | 942337 |
•Nipple | 1 |
| 22 | 11168041 |
•Hub retainer | 1 |
| 23 | 11168134 |
•Differential housing | 1 |
| 24 | 15010225 |
•Brake plate | 1 |
