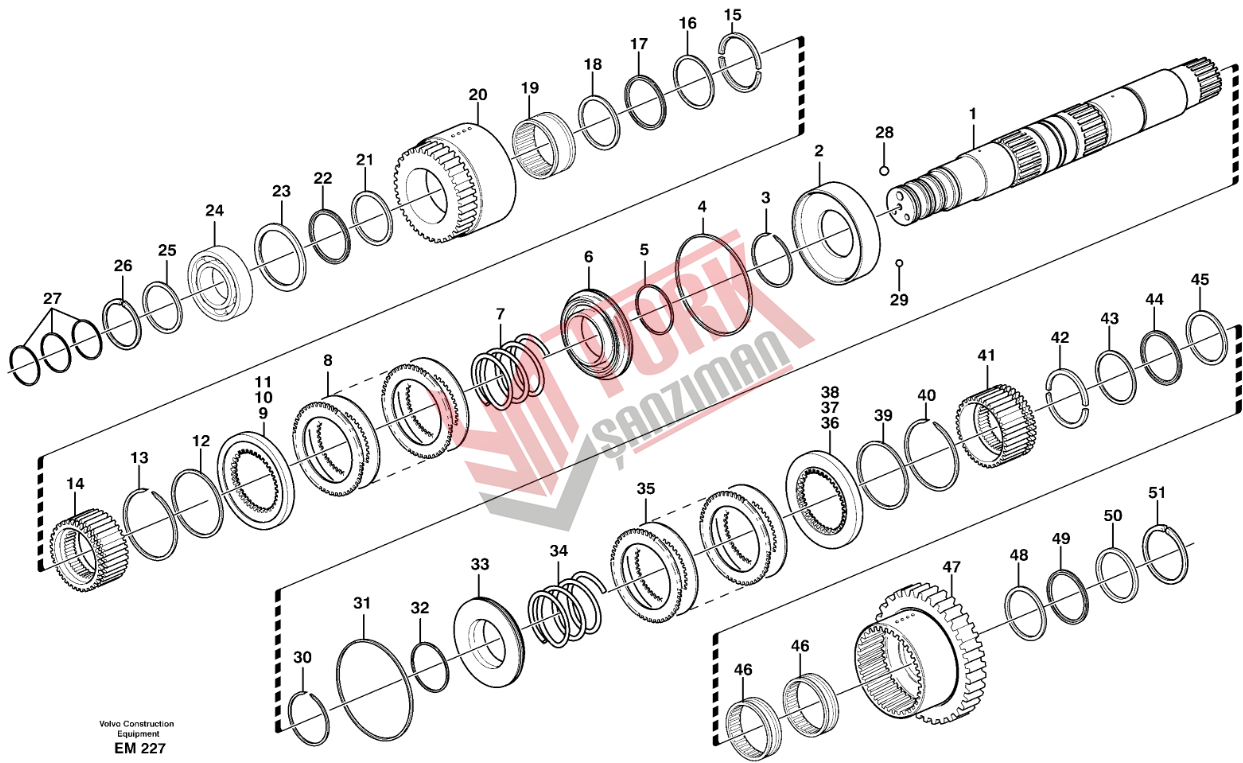

+90 552 671 32 12TRANSMISSION, HYDRAULIC CONTROL > 421/350 Hydraulic clutch, 3rd/4th speed 22523, 22548
WHEEL LOADER VOLVO L90E
BASIC MACHINE
PROD NO 33278, SER NO 20001 -
PROD NO 33278, SER NO 66001 - USA
PROD NO 33278, SER NO 70801 - BRAZIL
PROD NO 33286 OPEN ROPS, SER NO 72201 - BRAZIL
PROD NO 33288, SER NO 42001 - IRAN
CAB
PROD NO 33277
PROD NO 33284 CAB USA (82410)
PROD NO 33287 OPEN ROPS
TRANSMISSION
PROD NO 22523, HTE202, SER NO - 20095
SER NO - 66019 USA,
SER NO - 70802 BRAZIL
PROD NO 22548, HTE202, SER NO 20096 -
SER NO 66020 - USA
SER NO 70803 - BRAZIL
DRIVING AXLE
PROD NO 23919, AWB 25, front
PROD NO 23920, AWB 20, rear
LOADING UNIT
PROD NO 33282
ENGINE
Part No 11172408, Typ VOLVO D6DLAE2
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 11144602 |
Hydraulic clutch | 1 | |
| 1 | 11144450 |
•Clutch shaft | 1 |
| 2 | 11144002 |
•Partition wall | 1 |
| 3 | 4786535 |
•Lock ring | 1 |
| 4 | 4720869 |
•Piston ring | 1 |
| 5 | 4871048 |
•Piston ring | 1 |
| 6 | 11144403 |
•Piston | 1 |
| 7 | 4871533 |
•Spring | 1 |
| 8 | 11144487 |
•Disc kit | 1 |
| 9 | 11144447 |
•Pressure plate | REQ |
| 10 | 11144448 |
•Pressure plate | REQ |
| 11 | 11144449 |
•Pressure plate | REQ |
| 12 | 4786536 |
•Lock ring | 1 |
| 13 | 11037147 |
•Lock ring | 1 |
| 14 | 11145103 |
•Clutch hub | 1 |
| 15 | 4871337 |
•Retainer | 1 |
| 16 | 4880972 |
•Thrust washer | 1 |
| 17 | 4785772 |
•Needle bearing | 1 |
| 18 | 4871338 |
•Thrust washer | 1 |
| 19 | 11144006 |
•Needle bearing | 1 |
| 20 | 11144463 |
•Gear | 1 |
| 21 | 4871338 |
•Thrust washer | 1 |
| 22 | 4785772 |
•Needle bearing | 1 |
| 23 | 4718008 |
•Washer | 1 |
| 24 | 183592 |
•Ball bearing | 1 |
| 25 | 13949851 |
•Washer | 1 |
| 26 | 11037179 |
•Snap ring | 1 |
| 27 | 11037814 |
•Piston ring | 3 |
| 28 | 11037637 |
•Ball | 1 |
| 29 | 184645 |
•Ball | 1 |
| 30 | 4786535 |
•Lock ring | 1 |
| 31 | 4720869 |
•Piston ring | 1 |
| 32 | 4871048 |
•Piston ring | 1 |
| 33 | 11144403 |
•Piston | 1 |
| 34 | 4871532 |
•Spring | 1 |
| 35 | 11144606 |
•Disc kit | 1 |
| 36 | 11144613 |
•Pressure plate | REQ |
| 37 | 11144614 |
•Pressure plate | REQ |
| 38 | 11144615 |
•Pressure plate | REQ |
| 39 | 4786536 |
•Lock ring | 1 |
| 40 | 11037147 |
•Lock ring | 1 |
| 41 | 11144459 |
•Clutch hub | 1 |
| 42 | 4871337 |
•Retainer | 1 |
| 43 | 4880972 |
•Thrust washer | 1 |
| 44 | 4785772 |
•Needle bearing | 1 |
| 45 | 4871338 |
•Thrust washer | 1 |
| 46 | 11145380 |
•Needle holder | 1 |
| 47 | 11144464 |
•Gear | 1 |
| 48 | 4871338 |
•Thrust washer | 1 |
| 49 | 4785772 |
•Needle bearing | 1 |
| 50 | 15175558 (4718930) |
•Thrust washer | 1 |
| 51 | 11037181 |
•Snap ring | 1 |
