WHEEL LOADER VOLVO L90E
BASIC MACHINE
PROD NO 33278, SER NO 20001 -
PROD NO 33278, SER NO 66001 - USA
PROD NO 33278, SER NO 70801 - BRAZIL
PROD NO 33286 OPEN ROPS, SER NO 72201 - BRAZIL
PROD NO 33288, SER NO 42001 - IRAN
CAB
PROD NO 33277
PROD NO 33284 CAB USA (82410)
PROD NO 33287 OPEN ROPS

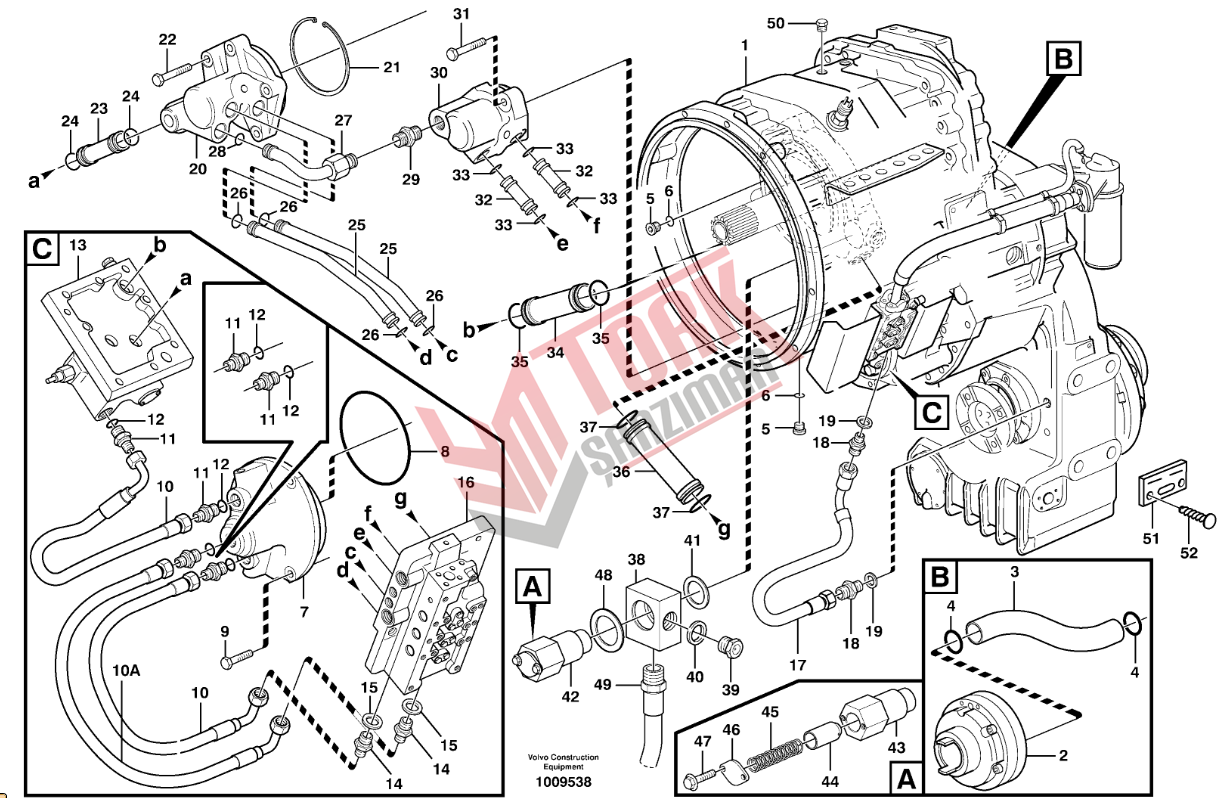

TRANSMISSION
PROD NO 22523, HTE202, SER NO - 20095
SER NO - 66019 USA,
SER NO - 70802 BRAZIL
PROD NO 22548, HTE202, SER NO 20096 -
SER NO 66020 - USA
SER NO 70803 - BRAZIL
DRIVING AXLE
PROD NO 23919, AWB 25, front
PROD NO 23920, AWB 20, rear
LOADING UNIT
PROD NO 33282
ENGINE
Part No 11172408, Typ VOLVO D6DLAE2
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Housing | 1 |
| 2 | |
Fuel filling pump | 1 |
| 3 | 11144497 |
Tube | 1 |
| 4 | 976041 |
O-ring | 2 |
| 5 | 13968614 |
Plug | 2 |
| 6 | 13968561 |
O-ring | 2 |
| 7 | 11038395 |
Oil distributor | 1 |
| 8 | 925263 |
O-ring | 1 |
| 9 | 13947760 |
Screw | 4 |
| 10 | 11145413 (13933708) |
Hose assembly | 2 |
| 11145413 |
Hose assembly | - | |
| 10A | 11418052 (13932775) |
Hose assembly | 1 |
| 11418052 |
Hose assembly | - | |
| 11 | 957031 |
Nipple | 4 |
| 12 | 958226 |
O-ring | 4 |
| 13 | |
Lub oil valve | 1 |
| 14 | 981018 |
Nipple | 2 |
| 15 | 4881251 |
Plane gasket | 2 |
| 16 | |
Gear sel valve | 1 |
| 17 | 11145414 (13933748) |
Hose assembly | 1 |
| 11145414 |
Hose assembly | ||
| 18 | 13943987 |
Nipple | 2 |
| 19 | 4881251 |
Plane gasket | 2 |
| 20 | 11038393 |
Oil distributor | 1 |
| 21 | 11037186 |
Snap ring | 1 |
| 22 | 13947760 |
Screw | 4 |
| 23 | 11144081 |
Tube | 1 |
| 24 | 13949656 |
O-ring | 2 |
| 25 | 11144407 |
Pipe | 2 |
| 26 | 968007 |
O-ring | 4 |
| 27 | 11144406 |
Pipe | 1 |
| 28 | 968007 |
O-ring | 1 |
| 29 | 931227 |
Nipple | 1 |
| 931211 |
•O-ring | 1 | |
| 931218 |
•Back-up ring | 1 | |
| 30 | 11144617 |
Oil distributor | 1 |
| 31 | 13947760 |
Screw | 2 |
| 32 | 11144077 |
Tube | 2 |
| 33 | 968007 |
O-ring | 4 |
| 34 | 11144086 |
Tube | 1 |
| 35 | 944126 |
O-ring | 2 |
| 36 | 11144087 |
Tube | 1 |
| 37 | 944126 |
O-ring | 2 |
| 38 | 11144858 |
Block | 1 |
| 39 | 11144859 |
Plug | 1 |
| 40 | 13947627 |
Plane gasket | 1 |
| 41 | 13960150 |
Washer | 1 |
| 42 | 11144910 |
Safety valve | 1 |
| 43 | |
•Valve housing | 1 |
| 44 | 11036776 |
•Piston | 1 |
| 45 | 11036777 |
•Spring | 1 |
| 46 | 4718062 |
•Cover | 1 |
| 47 | 13946544 |
•Screw | 2 |
| 48 | 120291 |
Washer | 1 |
| 49 | 11144952 |
Hose assembly | 1 |
| 50 | 479956 |
Plug | 1 |
| 51 | |
Sign | 1 |
| 52 | 950891 |
Drive screw | - |
