WHEEL LOADER
VOLVO L90D
BASIC MACHINE
PROD NO 33266, L90D S/N 17001 - 18685
PROD NO 33266, L90D USA S/N 64001 - 64937
PROD NO 33266, L90D BRAZIL S/N 70501 - 70730
PROD NO 33266, L90D USA S/N 65001 - 65037
CAB
PROD NO 33264 Care Cab II
PROD NO 33279 (80842)SEMI OPEN CAB
TRANSMISSION
PROD NO 22524, HT131
DRIVING AXLE
PROD NO 23886, AWB 30, front
PROD NO 23887, AWB 30, rear
PROD NO 23889, AWB 30, rear Limited slip diff, 80516
LOADING UNIT
PROD NO 33267
ENGINE
Part No 8188107, Typ TD63 KBE. Low exhaust emission version.

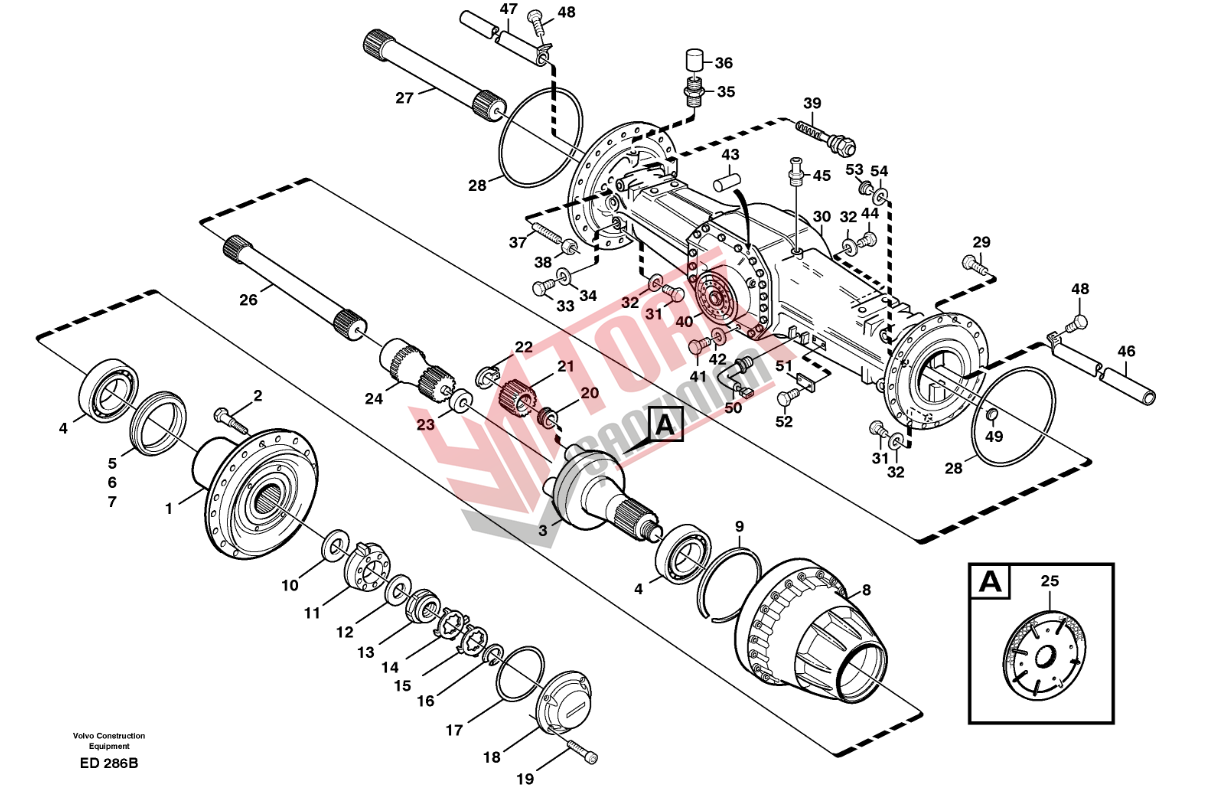

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 23887 |
Planet shaft | 1 | |
| 23889 |
Planet shaft | - | |
| 11168052 |
Hub | 2 | |
| 11168152 (11168130) |
Wheel hub | 2 | |
| 11168052 |
•Hub | ||
| 1 | 11168052 |
••Hub | 2 |
| |
••Hub | 2 | |
| 11168052 |
••Hub | - | |
| 2 | 15107881 (11102585) |
••Wheel stud | 24 |
| 3 | 11102015 |
•Planet carrier | 2 |
| 4 | 184836 |
•Roller bearing | 4 |
| 5 | 11102533 |
•Sealing ring | 2 |
| 11168122 |
•Sealing ring | 2 | |
| 11102533 |
•Sealing ring | - | |
| 6 | 11704006 |
••O-ring | 2 |
| 7 | 11704007 |
••O-ring | 2 |
| 8 | 11102617 |
•Hub retainer | 2 |
| 11168129 |
•Hub retainer | 2 | |
| 11102617 |
•Hub retainer | - | |
| 9 | 976936 |
••Retaining ring | 2 |
| 10 | 11102823 |
•Shim | REQ |
| 11034512 |
•Shim | REQ | |
| 11034513 |
•Shim | REQ | |
| 11034514 |
•Shim | REQ | |
| 11 | 11034507 |
•Washer | 2 |
| 12 | 1523317 |
•Washer | 2 |
| 13 | 1522293 |
•Nut | 2 |
| 14 | 1523319 |
•Lock washer | REQ |
| 15 | 1523318 |
•Lock washer | REQ |
| 16 | 914484 |
•Snap ring | 2 |
| 17 | 13946442 |
•O-ring | 2 |
| 18 | 11102336 |
•Cover | 2 |
| 19 | 959236 |
•Hex. socket screw | 8 |
| 967634 |
•Hex. socket screw | 8 | |
| 20 | 11035001 |
•Bearing | 6 |
| 21 | 11035819 |
•Planet gear | 6 |
| 22 | 914474 |
•Snap ring | 6 |
| 23 | 11035554 |
•Washer | 2 |
| 24 | 11168079 |
•Sun gear | 2 |
| 25 | |
•Brake | 2 |
| 26 | 11102622 (11102807) |
•Drive shaft | 1 |
| 27 | 11102806 |
•Drive shaft | 1 |
| 28 | 11103303 (11034981) |
•O-ring | 2 |
| 29 | 949544 |
•Hex. socket screw | 32 |
| 30 | 11102778 |
•Axle casing | 1 |
| 31 | 11102187 |
•Magnetic plug | 3 |
| 32 | 958228 |
•O-ring | 4 |
| 33 | 13960632 |
•Plug | 2 |
| 34 | 13947624 |
•Plane gasket | 2 |
| 35 | 4871469 |
•Air vent valve | 2 |
| 36 | 11034256 |
••Protecting cap | 2 |
| 37 | 11035450 |
•Screw | 4 |
| 38 | 955793 |
•Hexagon nut | 4 |
| 39 | 11102446 |
•Wear Indicator | 2 |
| 40 | 11102814 |
•Differential carrier | 1 |
| 11102818 |
•Differential carrier | - | |
| 41 | 4782860 |
•Hex. socket screw | 16 |
| 42 | 941912 |
•Spring washer | 16 |
| 43 | 950711 |
•Pin | 1 |
| 44 | 11034156 |
•Plug | 1 |
| 45 | 13961653 |
•Nipple | 1 |
| 46 | 11035407 |
•Pipe | 1 |
| 47 | 11035404 |
•Pipe | 1 |
| 48 | 13955294 |
•Screw | 6 |
| 49 | 955102 |
•Expansion plug | 6 |
| 50 | 11039193 |
•Temperature sensor | 1 |
| 51 | |
•Sign | 1 |
| 52 | 950891 |
•Drive screw | 1 |
| 53 | 960630 |
•Plug | 2 |
| 960630 |
•Plug | 3 | |
| 54 | 976929 |
•Gasket | 3 |
