WHEEL LOADER
VOLVO L90D
BASIC MACHINE
PROD NO 33266, L90D S/N 17001 - 18685
PROD NO 33266, L90D USA S/N 64001 - 64937
PROD NO 33266, L90D BRAZIL S/N 70501 - 70730
PROD NO 33266, L90D USA S/N 65001 - 65037
CAB
PROD NO 33264 Care Cab II
PROD NO 33279 (80842)SEMI OPEN CAB
TRANSMISSION
PROD NO 22524, HT131
DRIVING AXLE
PROD NO 23886, AWB 30, front
PROD NO 23887, AWB 30, rear
PROD NO 23889, AWB 30, rear Limited slip diff, 80516
LOADING UNIT
PROD NO 33267

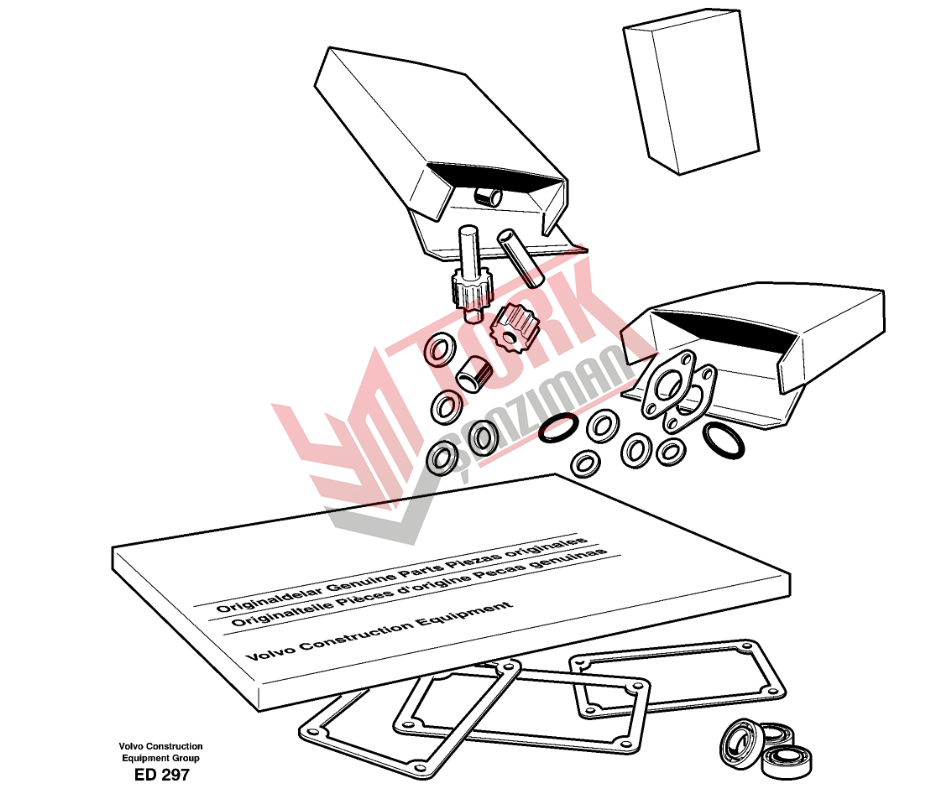

ENGINE
Part No 8188107, Typ TD63 KBE. Low exhaust emission version.
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 276821 |
Gasket kit | 2 | |
| 276929 |
Cylinder liner kit | 6 | |
| 271161 |
•Sealing ring kit | 6 | |
| 276310 |
•Piston ring kit | 6 | |
| |
Big end bearing kit | 6 | |
| |
Mn bearing kit | 7 | |
| |
Thrust washer kit | 1 | |
11030778 |
Gasket | 1 | |
| 275776 |
Gasket kit | 1 | |
| 465551 |
•Protecting sleeve | 12 | |
| 471856 |
•Sealing ring | 4 | |
| |
|||
| 465952 |
•Gasket | 2 | |
| 471637 |
•Sealing ring | 2 | |
| 471708 |
•Sealing ring | 2 | |
| 469982 |
•Sealing ring | 4 | |
| 471626 |
•Sealing ring | 1 | |
| 471788 |
•Sealing ring | 1 | |
| 477059 |
•O-ring | 2 | |
| 1544710 |
•Sealing ring | 1 | |
| 276152 |
Repair kit | 1 | |
| 274122 |
Repair kit | 1 | |
| 85107763 (276943) |
Water pump kit | 1 | |
| 11990043 |
Repair kit | 1 | |
| 11705967 |
Overhaul kit | 1 | |
| 276821 |
•Gasket kit | 2 | |
| 276929 |
•Cylinder liner kit | 6 | |
| 270139 |
•Piston Bearing | 6 | |
| 271230 |
•Main bearing kit | 7 | |
| 276751 |
•Thrust washer kit | 1 | |
| 275776 |
•Gasket kit | 1 | |
11030778 |
•Gasket | 1 | |
| 11706230 |
•Gasket kit | 1 | |
| 420538 |
••Gasket | 6 | |
| 420618 |
••Gasket | 2 | |
| 420641 |
••Gasket | 1 | |
| 420643 |
••Gasket | 1 | |
| 20591544 (421121) |
••Gasket | 2 | |
| 471682 |
••Gasket | 3 | |
| 845515 |
••Gasket | 1 | |
| 862619 |
••Gasket | 2 | |
| 1275379 (940096) |
••Gasket | 1 | |
| 947620 |
••Gasket | 14 | |
| 949329 |
••Gasket | 1 | |
| 957171 |
••Gasket | 1 | |
| 976929 |
••Gasket | 14 | |
| 3829434 |
••Gasket | 2 | |
| 4804167 |
••Gasket | 1 | |
| 11030013 |
••Gasket | 1 | |
| 13947281 |
••Gasket | 6 | |
| 13947282 |
••Gasket | 2 | |
| 13947624 |
••Plane gasket | 3 | |
| 13947625 |
••Plane gasket | 1 | |
| 13947627 |
••Plane gasket | 3 | |
| 421158 |
••Sealing ring | 1 | |
| 22194880 (421629) |
••Sealing ring | 1 | |
| 469455 |
••Sealing ring | 6 | |
| 469483 |
••Sealing ring | 2 | |
| 470383 |
••Sealing ring | 2 | |
| 471321 |
••Sealing ring | 1 | |
| 471626 |
••Sealing ring | 3 | |
| 471637 |
••Sealing ring | 2 | |
| 471708 |
••Sealing ring | 2 | |
| 471856 |
••Sealing ring | 5 | |
| 471956 |
••Sealing ring | 6 | |
| 477118 |
••Sealing ring | 1 | |
| 11030751 |
••Sealing ring | 2 | |
| 477119 |
••Crankshaft seal | 1 | |
| 477059 |
••O-ring | 1 | |
| 925057 |
••O-ring | 2 | |
| 977015 (925092) |
••O-ring | 1 | |
| 925094 |
••O-ring | 1 | |
| 925256 |
••O-ring | 1 | |
| 925094 |
••O-ring | 1 | |
| 925257 |
••O-ring | 1 | |
| 13925095 |
••O-ring | 1 | |
| 13948981 |
••O-ring | 1 | |
| 13949656 |
••O-ring | 2 | |
| 13949722 |
••O-ring | 1 | |
| 465815 |
••Screw | 12 |
