WHEEL LOADER VOLVO L90C
BASIC MACHINE
PROD NO 33248, SER NO 14305 - 16590
PROD NO 33248, SER NO 62463 - 63649 USA
PROD NO 33255, SER NO - 70052 BRAZIL
PROD NO 33248, SER NO 70060 - 70280 BRAZIL
PROD NO 33274, OPEN ROPS SER NO 36001 -
CAB
PROD NO 33250
PROD NO 33260, OPEN ROPS, BRAZIL
PROD NO 33275, OPEN ROPS
TRANSMISSION
PROD NO 30897, HT 131
DRIVING AXLE
PROD NO 23821, front, AWB 30
PROD NO 23822, rear, AWB 30
PROD NO 23862, rear, AWB 30. 94687
LOADING UNIT
PROD NO 33249 SER NO - 15597, SER NO - 63161 USA
PROD NO 33267 SER NO 15598 -, SER NO 63162 - USA
ENGINE

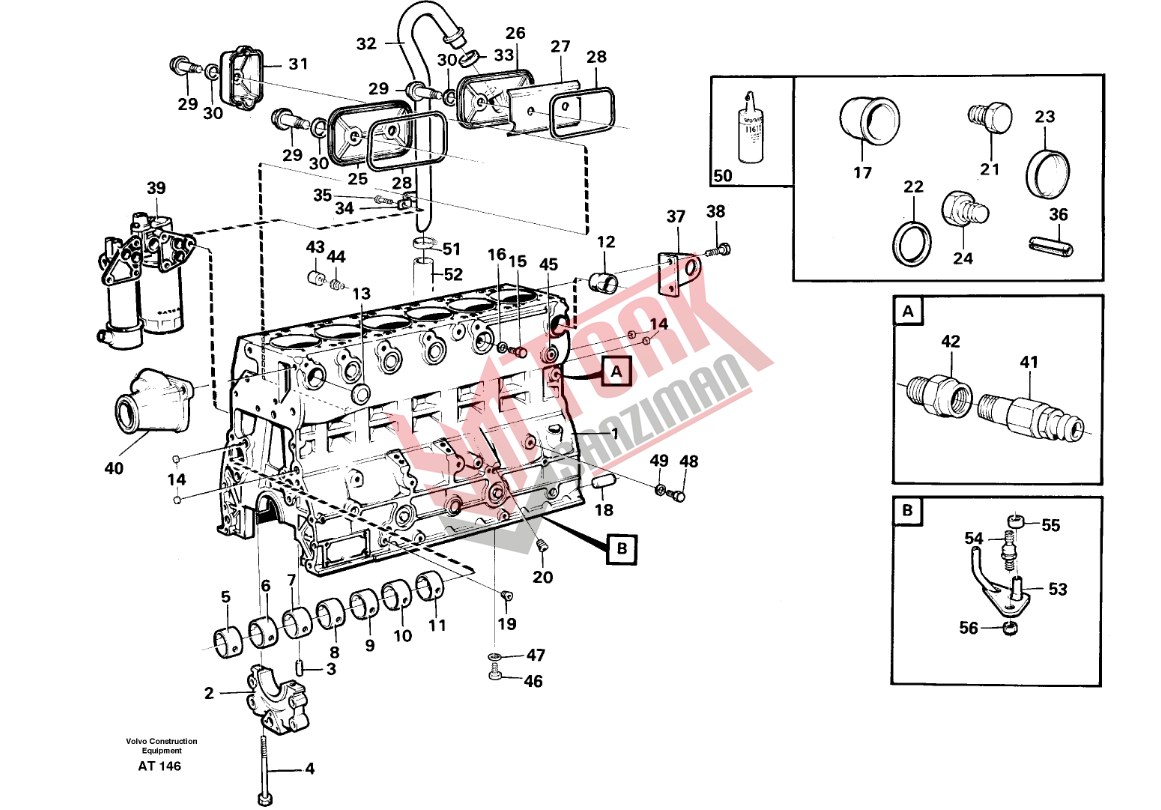

Part No 8188100, TD 63KBE. Low exhaust emission version
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 420990 |
Cylinder block | 1 |
| 2 | |
•Bearing carrier | 7 |
| 3 | 422426 |
••Pin | 1 |
| 4 | 465899 |
••Screw | 14 |
| 5 | 422076 |
•Bushing | 1 |
| 6 | 422077 (7422077) |
•Bushing | 1 |
| 7 | 422078 |
•Bushing | 1 |
| 8 | 11000014 (422079) |
•Bushing | 1 |
| 9 | 422080 (7422080) |
•Bushing | 1 |
| 10 | 422081 |
•Bushing | 1 |
| 11 | 422082 |
•Bushing | 1 |
| 12 | 421154 |
•Nozzle | 6 |
| 13 | 13968955 |
•Expansion plug | 4 |
| 14 | 955082 |
•Cap plug | 6 |
| 15 | 467367 (467649) |
•Plug | 2 |
| 16 | 1556907 (469328) |
•Gasket | 2 |
| 17 | 422369 |
•Plug | 7 |
| 18 | 191171 (191171) |
•Pin | 2 |
| 19 | 952075 |
•Plug | 2 |
| 20 | 968145 |
•Plug | 3 |
| 21 | 960630 |
Plug | 1 |
| 22 | 13969011 |
Gasket | 1 |
| 23 | 955082 |
Cap plug | 1 |
| 24 | 479979 |
Plug | 4 |
| 25 | 420120 |
Inspection lid | 1 |
| 26 | 420121 |
Hatch | 1 |
| 27 | 3978045 (471858) |
Splash plate | 1 |
| 28 | 20591544 (421121) |
Gasket | 2 |
| 29 | 471855 |
Screw | 5 |
| 30 | 471856 |
Sealing ring | 5 |
| 31 | 471854 |
Cover | 1 |
| 32 | 848497 |
Breather pipe | 1 |
| 33 | 421158 |
Sealing ring | 1 |
| 34 | 849059 |
Clamp | 1 |
| 35 | 946440 |
Flange screw | 1 |
| 36 | 951974 |
Spring pin | 1 |
| 37 | |
Lifting eye | 2 |
| 38 | 13965191 |
Screw | 4 |
| 39 | |
Oil filter housing | 1 |
| 40 | |
Spacer | 1 |
| 41 | 13947893 (947893) |
Tap | 1 |
| 42 | 479954 (7190130) |
Nipple | 1 |
| 43 | 11039249 |
Pressure monitor | 1 |
| 44 | 862109 |
Nipple | 1 |
| 45 | 420589 |
Expansion plug | 1 |
| 46 | 966146 |
Plug | 1 |
| 47 | 13947629 |
Plane gasket | 1 |
| 48 | 13965768 |
Plug | 1 |
| 49 | 13947281 |
Gasket | 1 |
| 50 | 1161277 |
Sealant | REQ |
| 11713514 (1161231) |
Sealant | REQ | |
| 51 | 943475 |
Hose clamp | 1 |
| 52 | 927661 |
Rubber hose | REQ |
| 53 | 477437 |
Nozzle | 6 |
| 54 | 471596 |
Stud | 6 |
| 55 | 466874 |
Sealing ring | 6 |
| 56 | 13948570 |
Lock nut | 6 |
