WHEEL LOADER VOLVO L90C
BASIC MACHINE
PROD NO 33248, SER NO 14305 - 16590
PROD NO 33248, SER NO 62463 - 63649 USA
PROD NO 33255, SER NO - 70052 BRAZIL
PROD NO 33248, SER NO 70060 - 70280 BRAZIL
PROD NO 33274, OPEN ROPS SER NO 36001 -
CAB
PROD NO 33250
PROD NO 33260, OPEN ROPS, BRAZIL
PROD NO 33275, OPEN ROPS
TRANSMISSION
PROD NO 30897, HT 131
DRIVING AXLE
PROD NO 23821, front, AWB 30
PROD NO 23822, rear, AWB 30
PROD NO 23862, rear, AWB 30. 94687
LOADING UNIT
PROD NO 33249 SER NO - 15597, SER NO - 63161 USA
PROD NO 33267 SER NO 15598 -, SER NO 63162 - USA
ENGINE
Part No 8188100, TD 63KBE. Low exhaust emission version

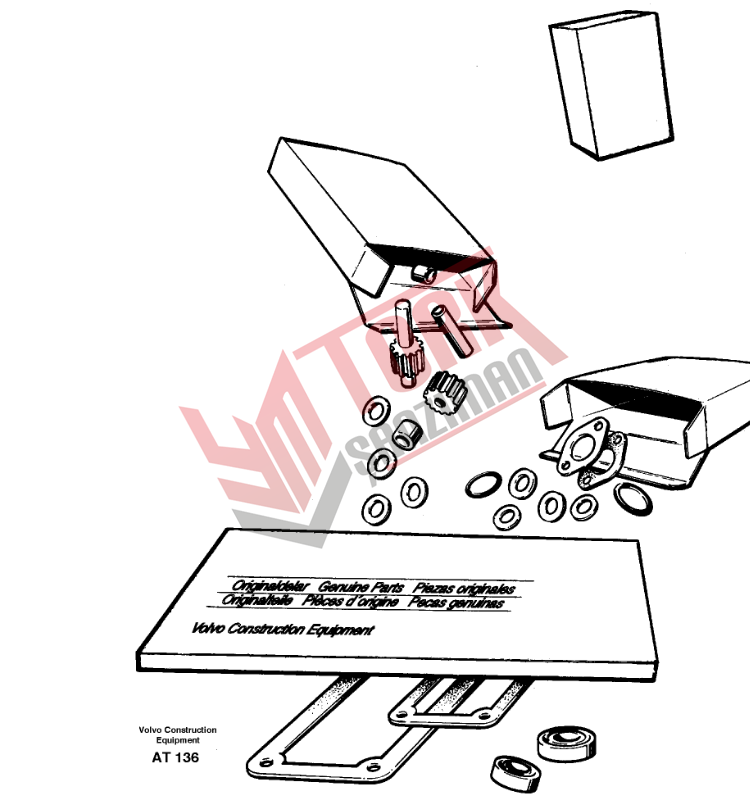

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 276821 |
Gasket kit | 2 | |
| |
For cylinder head | - | |
| |
Engine | - | |
| |
Gasket Kit | - | |
| 275776 |
Gasket kit | 1 | |
| |
For decarbonizing | - | |
| |
- | ||
| |
- | ||
| 275648 |
Cylinder liner kit | 6 | |
| 271161 |
Sealing ring kit | 6 | |
| 276310 |
Piston ring kit | 6 | |
| |
Big end bearing kit | 6 | |
| |
- | ||
| |
- | ||
| |
Mn bearing kit | 7 | |
| |
- | ||
| |
- | ||
| |
Thrust washer kit | 1 | |
| |
- | ||
| |
- | ||
| 276151 |
Repair kit | 1 | |
| |
•Oil pump | - | |
| |
- | ||
| |
- | ||
| 270575 |
Repair kit | 6 | |
| |
•Sleeve injector | - | |
| |
- | ||
| |
- | ||
| 274122 |
Repair kit | 1 | |
| |
•Turbocharger | - | |
| |
- | ||
| |
- | ||
| 276804 |
Water pump kit | 1 | |
| |
•Water pump | - | |
| |
- | ||
| |
- | ||
| 11990043 |
Repair kit | 1 | |
| |
•Water pump intercool | - | |
| |
- | ||
| |
- | ||
| 11997136 |
Gasket kit | 1 | |
| |
For major overhaul | - | |
| |
Supplementary | - | |
| 420641 |
•Gasket | 1 | |
| 420643 |
•Gasket | 1 | |
| 20591544 (421121) |
•Gasket | 2 | |
| 421158 |
•Sealing ring | 1 | |
| 22194880 (421629) |
•Sealing ring | 1 | |
| 925094 |
•O-ring | 1 | |
| 469455 |
•Sealing ring | 6 | |
| 469483 |
•Sealing ring | 2 | |
| 470383 |
•Sealing ring | 2 | |
| 471321 |
•Sealing ring | 1 | |
| 471626 |
•Sealing ring | 3 | |
| 471637 |
•Sealing ring | 2 | |
| 471708 |
•Sealing ring | 2 | |
| 471856 |
•Sealing ring | 5 | |
| 471956 |
•Sealing ring | 6 | |
| 477059 |
•O-ring | 1 | |
| 477118 |
•Sealing ring | 1 | |
| 477119 |
•Crankshaft seal | 1 | |
| 4804167 |
•Gasket | 1 | |
| 845515 |
•Gasket | 2 | |
| 862619 |
•Gasket | 2 | |
| 925057 |
•O-ring | 2 | |
| 977015 (925092) |
•O-ring | 1 | |
| 925094 |
•O-ring | 1 | |
| 13925095 |
•O-ring | 1 | |
| 925256 |
•O-ring | 1 | |
| 925257 |
•O-ring | 1 | |
| 1275379 (940096) |
•Gasket | 1 | |
| 13947281 |
•Gasket | 6 | |
| 13947282 |
•Gasket | 2 | |
| 947620 |
•Gasket | 14 | |
| 13947624 |
•Plane gasket | 3 | |
| 13947625 |
•Plane gasket | 1 | |
| 13947627 |
•Plane gasket | 3 | |
| 13948981 |
•O-ring | 1 | |
| 949329 |
•Gasket | 1 | |
| 13949656 |
•O-ring | 2 | |
| 13949722 |
•O-ring | 1 | |
| 957171 |
•Gasket | 1 | |
| 13969011 |
•Gasket | 14 | |
| 13975610 |
•O-ring | 1 | |
| 11030013 |
•Gasket | 1 | |
| 11030751 |
•Sealing ring | 2 | |
| |
- | ||
| |
- | ||
| 11997138 |
Overhaul kit | 1 | |
| 276821 |
•Gasket kit | 2 | |
| 275776 |
•Gasket kit | 1 | |
| 8149182 (1676306) |
•Thermostat | 1 | |
| 3829434 (424610) |
•Gasket | 2 | |
| 420538 |
•Gasket | 6 | |
| 420618 |
•Gasket | 2 | |
| |
- | ||
| |
- | ||
| 11997141 |
Overhaul kit | 1 | |
| 420874 |
•Valve seat | 6 | |
| 420875 |
•Valve seat | 6 | |
| 420553 |
•Inlet valve | 6 | |
| 8192143 |
•Exhaust valve | 6 | |
| 477792 |
•Valve guide | 12 | |
| 270575 |
•Repair kit | 6 | |
| |
- | ||
| |
- | ||
| 11997144 |
Overhaul kit | 1 | |
| 270139 |
•Piston Bearing | 6 | |
| 275648 |
•Cylinder liner kit | 6 | |
| 465815 |
•Screw | 12 | |
11030778 |
•Gasket | 1 | |
| |
- | ||
| |
- | ||
| 11997146 |
Overhaul kit | 1 | |
| 271230 |
•Main bearing kit | 7 | |
| 276751 |
•Thrust washer kit | 1 | |
| 11997141 |
•Overhaul kit | 1 | |
| 11997136 |
•Gasket kit | 1 |
