WHEEL LOADER VOLVO L70G
BASIC MACHINE
PROD NO 33006, S/N 2008 - Sweden
PROD NO 33006, S/N 614001 - USA
CAB
PROD NO 11294044
TRANSMISSION
PROD NO 22579, HTE125
DRIVING AXLE
PROD NO 56009, AWB 25, front
PROD NO 56013, AWB 20, rear
PROD NO 56012, AWB 20, rear, Limited slip Diff (LSD)
LOADING UNIT
PROD NO 33033
ENGINE
PART NO. 15165676, Type D6H, EU
PART NO. 15083688, Type D6H, US

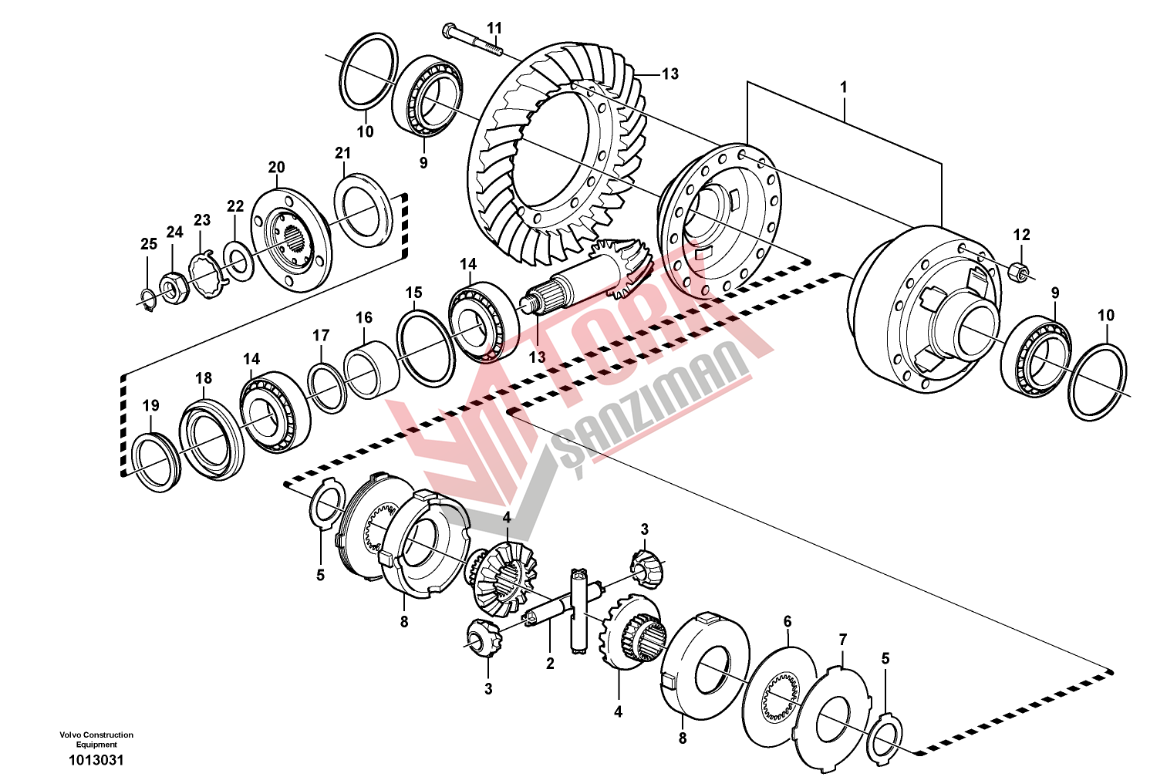

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 56091 |
Planetary Axle | 1 | |
| 1 | 11168066 |
•Differential | 1 |
| 2 | 11712143 |
••Spider | 2 |
| 3 | 11712141 |
••Differential side gear | 4 |
| 4 | 11712140 |
••Differential side gear | 2 |
| 5 | 11701900 |
••Thrust washer | 2 |
| 6 | 11711999 |
••Friction disc | 4 |
| 7 | 11712000 |
••Friction plate | 1 |
| 7 | 11712137 |
••Friction plate | 2 |
| 7 | 11712138 |
••Friction plate | 1 |
| 8 | 11712139 |
••Plate | 2 |
| 9 | 184688 |
•Roller bearing | 2 |
| 10 | 11034319 |
•Shim | REQ |
| 10 | 11034320 |
•Shim | REQ |
| 10 | 11034321 |
•Shim | REQ |
| 11 | 11035998 |
•Screw | 16 |
| 12 | 11035850 |
•Nut | 16 |
| 13 | 17210933 |
•Drive gear set | 1 |
| 13 | |
••Pinion | 1 |
| 13 | |
••Crown wheel | 1 |
| 14 | 15164989 |
•Bearing | 2 |
| 15 | 11168057 |
•Shim | REQ |
| 15 | 11168058 |
•Shim | REQ |
| 15 | 11103462 |
•Shim | REQ |
| 15 | 11168059 |
•Shim | REQ |
| 16 | 11168042 |
•Spacer sleeve | 1 |
| 17 | 11034828 |
•Spacer ring | REQ |
| 17 | 11034829 |
•Spacer ring | REQ |
| 17 | 11034830 |
•Spacer ring | REQ |
| 17 | 11034831 |
•Spacer ring | REQ |
| 17 | 4870245 |
•Spacer ring | REQ |
| 17 | 4870246 |
•Spacer ring | REQ |
| 17 | 4870247 |
•Spacer ring | REQ |
| 17 | 4870248 |
•Spacer ring | REQ |
| 17 | 4870249 |
•Spacer ring | REQ |
| 17 | 4870250 |
•Spacer ring | REQ |
| 18 | 4717576 |
•Sealing ring | 1 |
| 19 | 943142 |
•Sealing ring | 1 |
| 20 | 11168030 |
•Companion flange | 1 |
| 21 | 11168081 |
••Dust cover | 1 |
| 22 | 383992 |
•Lock washer | REQ |
| 23 | 382779 |
•Lock washer | REQ |
| 24 | 4717504 |
•Nut | 1 |
| 25 | 914480 |
•Snap ring | 1 |
