Wheel Loader Volvo L70E
BASIC MACHINE
PROD NO 33162, SER NO 21001 - 22957
PROD NO 33162, SER NO 60001 - 61576
PROD NO 33162, SER NO 71001 - 71337
PROD NO 33172 OPEN ROPS, SER NO 72101 - BRAZIL
CAB
PROD NO 33165
PROD NO 33168
PROD NO 33171 OPEN ROPS
TRANSMISSION
PROD NO 22530, HT95
DRIVING AXLE
PROD NO 23915, AWB 25, front
PROD NO 23916, AWB 20, rear
PROD NO 23918, AWB 20, rear (80950)
LOADING UNIT
PROD NO 33163
ENGINE
Part No 11172409, Typ VOLVO D6D LBE2

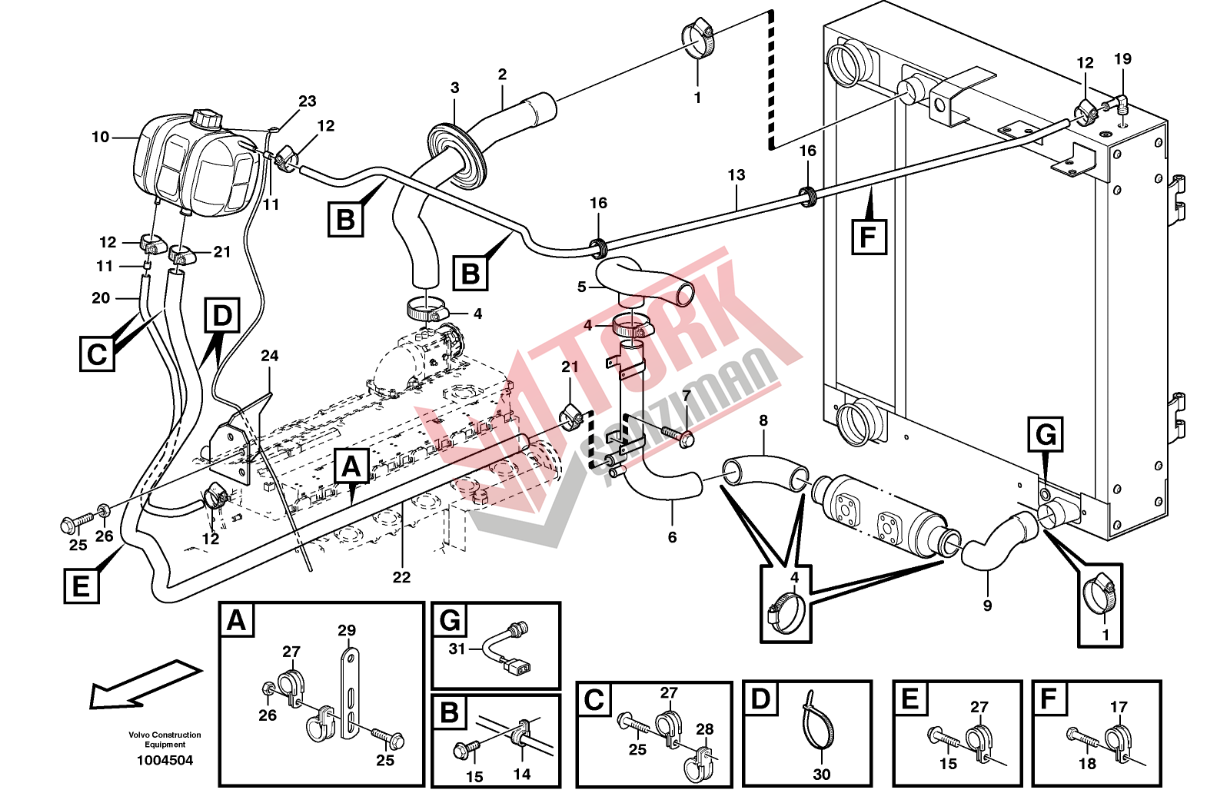

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 943480 |
Hose clamp | 2 |
| 2 | 11172886 |
Radiator hose | 1 |
| 3 | 11148867 |
Grommet | 1 |
| 4 | 943479 |
Hose clamp | 6 |
| 5 | 11180702 |
Radiator hose | 1 |
| 6 | 11180511 |
Tube | 1 |
| 7 | 946470 |
Flange screw | 2 |
| 8 | 11173171 |
Radiator hose | 1 |
| 9 | 11173170 |
Radiator hose | 1 |
| 10 | |
Expansion Tank | 1 |
| 11 | 11033572 |
Restrictor | 2 |
| 12 | 943471 |
Hose clamp | 4 |
| 13 | 943367 |
Hose | REQ |
| 14 | 977742 |
Clamp | 2 |
| 15 | 946440 |
Flange screw | 3 |
| 16 | 961960 |
Grommet | 2 |
| 17 | 952630 |
Clamp | 1 |
| 18 | 13965175 |
Screw | 1 |
| 19 | 942758 |
Nipple | 1 |
| 20 | 943367 |
Hose | REQ |
| 21 | 943475 |
Hose clamp | 2 |
| 22 | 4856263 |
Radiator hose | REQ |
| 23 | 941363 |
Hose | REQ |
| 24 | 11411700 (11410057) |
Heat shield | 1 |
| 25 | 13946173 |
Screw | 4 |
| 26 | 13945408 |
Nut | 2 |
| 27 | 949850 |
Clamp | 3 |
| 28 | 942810 |
Clamp | 1 |
| 29 | 13965540 |
Bracket | 1 |
| 30 | 4881440 |
Cable tie | REQ |
| 31 | 11419485 |
Temperature sensor | 1 |
