WHEEL LOADER VOLVO L70C
BASIC MACHINE
PROD NO 33140, SER NO 13116 -
PROD NO 33140, SER NO 70050 - BRAZIL
PROD NO 33143, SER NO 70007 - 70049 BRAZIL
CAB
PROD NO 33141
PROD NO 33148 OPEN ROPS. 93675
PROD NO 33159 OPEN ROPS. 80001
TRANSMISSION
PROD NO 30872, HT 90
PROD NO 30873, HT 90. 92631
DRIVING AXLE
PROD NO 23848, front, AWB 15
PROD NO 23850, front, AWB 15. 92616, 94645
PROD NO 23849, rear, AWB 15
PROD NO 23865, rear, AWB 15. 94645
LOADING UNIT
PROD NO 33142
PROD NO 33152. 93518
ENGINE
Part No 497999, TD 63KDE, Low exhaust emission version
Part No 497998, TD 61GD. 94558

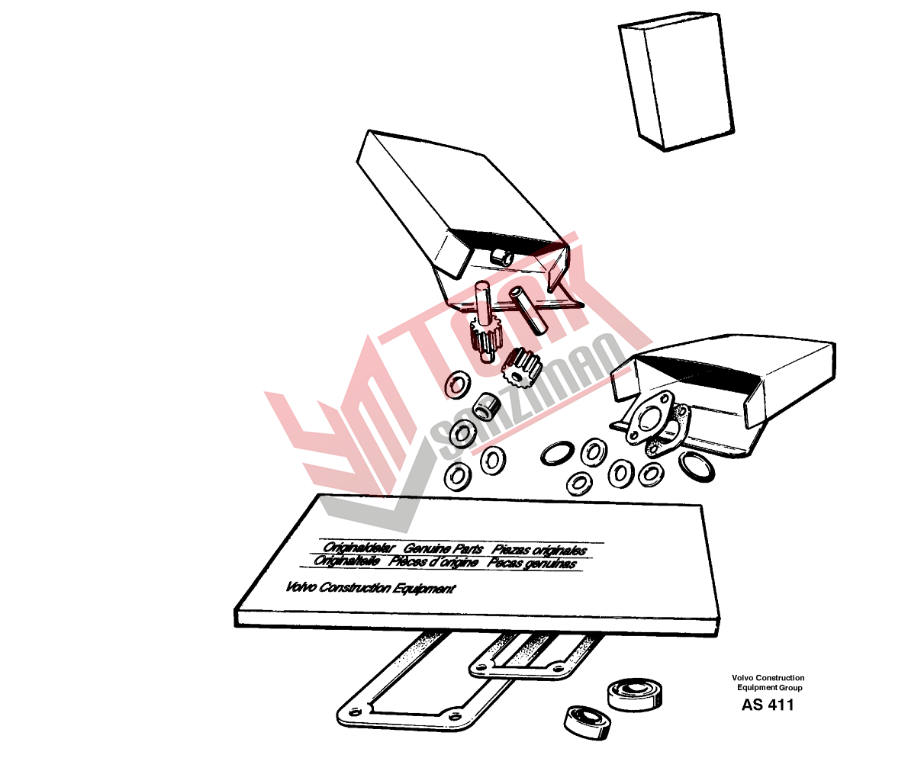

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 276821 |
Gasket kit | 2 | |
| |
- | ||
| 275776 |
Gasket kit | 1 | |
| |
- | ||
| 275394 |
Cylinder liner kit | 6 | |
| 275648 |
Cylinder liner kit | - | |
| 271161 |
Sealing ring kit | 6 | |
| 270713 |
Piston ring kit | 6 | |
| 276310 |
Piston ring kit | - | |
| |
Big end bearing kit | 6 | |
| |
- | ||
| |
Mn bearing kit | 7 | |
| |
- | ||
| |
Thrust washer kit | 1 | |
| |
- | ||
| 276151 |
Repair kit | 1 | |
| |
•Oil pump | - | |
| |
- | ||
| 276804 |
Water pump kit | 1 | |
| |
•Water pump | - | |
| |
- | ||
| 11990043 |
Repair kit | - | |
| |
•Extra water pump | - | |
| |
- | ||
| 11997136 |
Gasket kit | 1 | |
| |
For major overhaul | - | |
| |
Supplementary | - | |
| 20591544 (421121) |
•Gasket | 2 | |
| 420641 |
•Gasket | 1 | |
| 420643 |
•Gasket | 1 | |
| 925094 |
•O-ring | 1 | |
| 471321 |
•Sealing ring | 1 | |
| 471637 |
•Sealing ring | 1 | |
| 471708 |
•Sealing ring | 2 | |
| 477059 |
•O-ring | 1 | |
| 845515 |
•Gasket | 2 | |
| 862619 |
•Gasket | 2 | |
| 925057 |
•O-ring | 2 | |
| 977015 (925092) |
•O-ring | 1 | |
| 925094 |
•O-ring | 1 | |
| 13947282 |
•Gasket | 2 | |
| 13947625 |
•Plane gasket | 1 | |
| 13948981 |
•O-ring | 1 | |
| 949329 |
•Gasket | 1 | |
| 957171 |
•Gasket | 1 | |
| 11030013 |
•Gasket | 1 | |
| 11030751 |
•Sealing ring | 2 | |
| 421158 |
•Sealing ring | 1 | |
| 22194880 (421629) |
•Sealing ring | 1 | |
| 11030778 (424918) |
•Gasket | 1 | |
| 469455 |
•Sealing ring | 6 | |
| 469483 |
•Sealing ring | 2 | |
| 470383 |
•Sealing ring | 2 | |
| 1275379 (940096) |
•Gasket | 1 | |
| 947620 |
•Gasket | 14 | |
| 13947624 |
•Plane gasket | 3 | |
| 13947627 |
•Plane gasket | 3 | |
| 4804167 |
•Gasket | 1 | |
| 13925095 |
•O-ring | 1 | |
| 13947281 |
•Gasket | 6 | |
| 13969011 |
•Gasket | 14 | |
| 471626 |
•Sealing ring | 3 | |
| 471856 |
•Sealing ring | 5 | |
| 471956 |
•Sealing ring | 6 | |
| 477118 |
•Sealing ring | 1 | |
| 477119 (821755) |
•Crankshaft seal | 1 | |
| 925256 |
•O-ring | 1 | |
| 925257 |
•O-ring | 1 | |
| 13949656 |
•O-ring | 2 | |
| 13949722 |
•O-ring | 1 | |
| 13975610 |
•O-ring | 1 | |
| |
|||
| 11997137 |
Overhaul kit | 1 | |
| 276821 |
•Gasket kit | 2 | |
| 275776 |
•Gasket kit | 1 | |
| 8149182 |
•Thermostat | 1 | |
| 471682 |
•Gasket | 3 | |
| 420538 |
•Gasket | 6 | |
| 420618 |
•Gasket | 2 | |
| |
|||
| 11997140 |
Overhaul kit | 1 | |
| 465158 |
•Valve seat | 6 | |
| 465155 |
•Valve seat | 6 | |
| 420553 |
•Inlet valve | 6 | |
| 8192143 |
•Exhaust valve | 6 | |
| 477792 |
•Valve guide | 12 | |
| |
|||
| 11997142 |
Overhaul kit | 1 | |
| 270139 |
•Piston Bearing | 6 | |
| 275394 |
•Cylinder liner kit | 6 | |
| 465815 |
•Screw | 12 | |
11030778 |
•Gasket | 1 | |
| |
|||
| 11997145 |
Overhaul kit | 1 | |
| 271230 |
•Main bearing kit | 7 | |
| 276751 |
•Thrust washer kit | 1 | |
| 11997140 |
•Overhaul kit | 1 | |
| 11997136 |
•Gasket kit | 1 | |
| |
- | ||
| 11997138 |
Overhaul kit | - | |
| 276821 |
•Gasket kit | - | |
| 275776 |
•Gasket kit | - | |
| 8149182 |
•Thermostat | - | |
| 3829434 |
•Gasket | - | |
| 420538 |
•Gasket | - | |
| |
- | ||
| 11997141 |
Overhaul kit | - | |
| 420874 |
•Valve seat | - | |
| 420875 |
•Valve seat | - | |
| 420553 |
•Inlet valve | - | |
| 8192143 |
•Exhaust valve | - | |
| 477792 |
•Valve guide | - | |
| |
- | ||
| 11997144 |
Overhaul kit | - | |
| 270139 |
•Piston Bearing | - | |
| 275648 |
•Cylinder liner kit | - | |
| 465815 |
•Screw | - | |
11030778 |
•Gasket | - | |
| |
- | ||
| 11997146 |
Overhaul kit | - | |
| 271230 |
•Main bearing kit | - | |
| 276751 |
•Thrust washer kit | - | |
| 11997141 |
•Overhaul kit | - | |
| 11997136 |
•Gasket kit | - |
