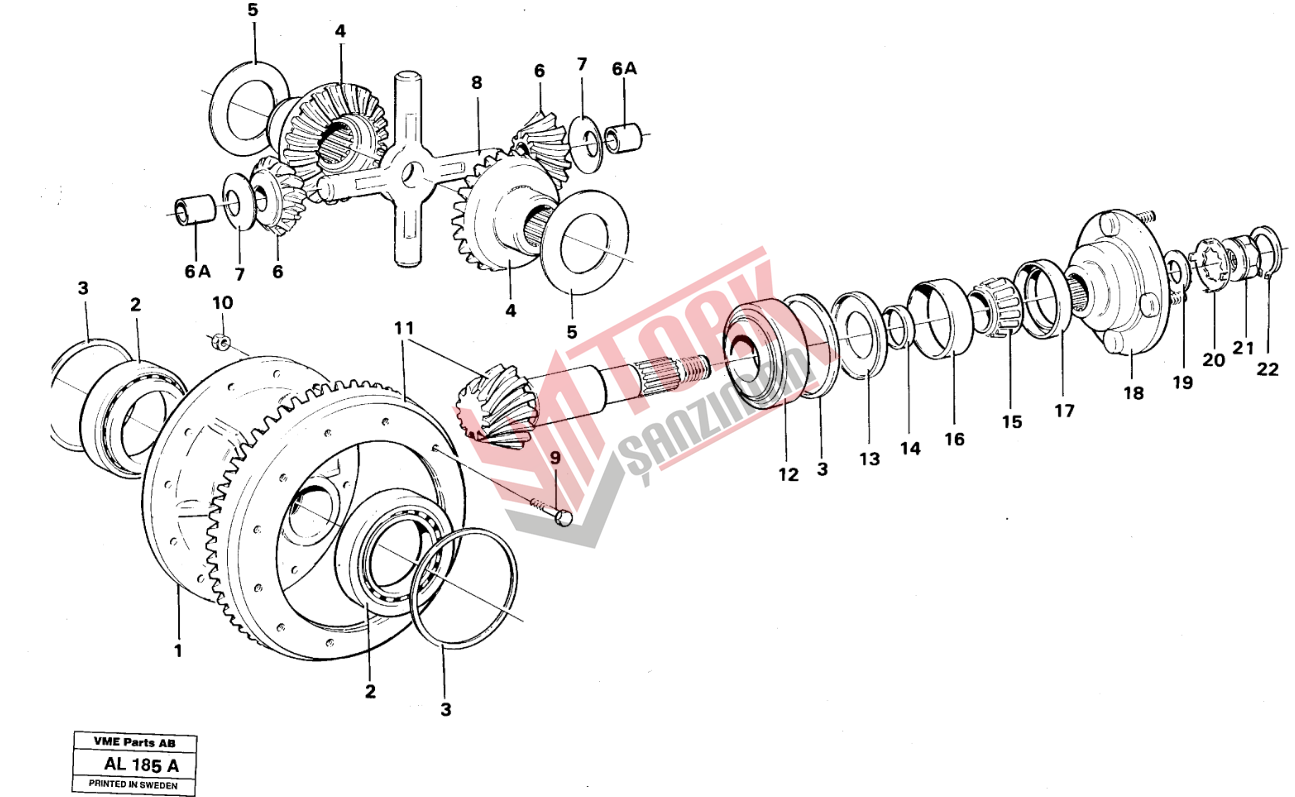

+90 552 671 32 12FRONT AXLE; REAR AXLE > 461/100 Differential carrier, See Sb 460 Ind K9 23848, 23849, 23850
WHEEL LOADER VOLVO BM L70B/L70C
BASIC MACHINE
PROD NO 33140, L70B, SER NO 10101 - 11245
PROD NO 33140, L70C, SER NO 11246 -
CAB
PROD NO 33141
TRANSMISSION
PROD NO 30872, HT 90
PROD NO 30873, HT 90
DRIVING AXLE
PROD NO 23848, front, AWB 15
PROD NO 23850, front, AWB 15. 92616
PROD NO 23867, front, AWB 15. 94642
PROD NO 23849, rear, AWB 15
LOADING UNIT
PROD NO 33142
ENGINE, L70B
Part No 497998, TD 61GD
Part No 497999, TD 63KDE, Low exhaust emission version. 92551
ENGINE L70C
Part No 497999, TD 63KDE, Low exhaust emission version
Part No 497998, TD 61GD. 94558
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11035530 |
Differential housing | 2 |
| 11102013 |
Differential housing | 2 | |
| 11035530 |
Differential housing | - | |
| 11102013 |
Differential housing | - | |
| 11035530 |
Differential housing | - | |
| 11102013 |
Differential housing | - | |
| 11035618 |
Differential housing | - | |
| 11102914 (11035917) |
Differential housing | - | |
| 2 | 184688 |
Roller bearing | 2 |
| 3 | 11034319 |
Shim | REQ |
| 11034320 |
Shim | REQ | |
| 11034321 |
Shim | REQ | |
| 4 | 11035625 |
Differential side gear | 2 |
| 11035625 (11035920) |
Differential side gear | 2 | |
| 11035625 |
Differential side gear | 2 | |
| 11035625 |
Differential side gear | - | |
| 11035625 (11035920) |
Differential side gear | - | |
| 11035625 |
Differential side gear | - | |
| 11035625 |
Differential side gear | - | |
| 11035625 (11035920) |
Differential side gear | - | |
| 11035625 |
Differential side gear | - | |
| 5 | 11035311 |
Thrust washer | 2 |
| 11035311 (11035955) |
Thrust washer | 2 | |
| 11035311 |
Thrust washer | - | |
| 11035311 (11035955) |
Thrust washer | - | |
| 11035311 |
Thrust washer | - | |
| 11035311 (11035955) |
Thrust washer | - | |
| 6 | 11035863 |
Differential side gear | 4 |
| 11035885 |
Differential side gear | 4 | |
| 11035863 |
Differential side gear | - | |
| 11035885 |
Differential side gear | - | |
| 11035863 |
Differential side gear | - | |
| 11035885 |
Differential side gear | - | |
| 6A | 11035932 |
Slide bearing | 4 |
| 11035932 |
Slide bearing | - | |
| 11035932 |
Slide bearing | - | |
| 7 | 11035312 |
Thrust washer | 4 |
| 17203825 (11035949) |
Thrust washer | 4 | |
| 11035312 |
Thrust washer | - | |
| 17203825 (11035949) |
Thrust washer | - | |
| 11035312 |
Thrust washer | - | |
| 17203825 (11035949) |
Thrust washer | - | |
| 8 | 11035405 |
Spider | 1 |
| 11035918 |
Spider | 1 | |
| 11035405 |
Spider | - | |
| 11035918 |
Spider | - | |
| 11035405 |
Spider | - | |
| 11035918 |
Spider | - | |
| 9 | 11035875 (11035531) |
Screw | 12 |
| 10 | 11035850 |
Nut | 12 |
| 11 | 15194304 (11035512) |
Drive gear set | 1 |
| 15194307 (11035515) |
Drive gear set | ||
| 12 | 184809 |
Roller bearing | 1 |
| 13 | 4870325 |
Oil plate | 1 |
| 14 | 11035471 |
Spacer ring | REQ |
| 11035472 |
Spacer ring | REQ | |
| 11035473 |
Spacer ring | REQ | |
| 11035474 |
Spacer ring | REQ | |
| 11035475 |
Spacer ring | REQ | |
| 11035476 |
Spacer ring | REQ | |
| 11035477 |
Spacer ring | REQ | |
| 7183405 |
Roller bearing | 1 | |
| 15 | |
•Cone | 1 |
| 16 | |
•Cup | 1 |
| 17 | 4870186 |
Sealing ring | 1 |
| 18 | 11035519 |
Companion flange | 1 |
| 11035388 |
•Press screw | 4 | |
| 11035553 |
Companion flange | - | |
| 19 | 4717955 |
Washer | 1 |
| 20 | 11035845 |
Lock washer | 1 |
| 11035846 |
Lock washer | 1 | |
| 21 | 11035538 |
Nut | 1 |
| 22 | 914472 |
Snap ring | 1 |
